COMMISSIONING
45
14. Check the water temperature at the hot tap by repeating steps 2 to 5.
If the water temperature is still below 50°C and requires to be increased, repeat steps 11, 12 and 13,
followed by steps 2 to 5 until an acceptable water temperature not exceeding 50°C is measured at
the same hot tap.
if the water temperature exceeds 50°C then;
switch DIP switch 3 to the on (left side) position on the PCB.
The outlet temperature setting will show on the LED display.
press the MIN button once to decrease the outlet temperature setting to the next increment.
Each press of the MIN button will decrease the outlet temperature by one increment.
The MIN button is located below the DIP switches, adjuster button and MAX button.
switch DIP switch 3 to the off (right side) position on the PCB.
The LED display will go blank.
Note: Wait five (5) seconds for the setting to be saved.
repeat steps 2 to 5 to confirm the water temperature does not exceed 50°C.
15. Switch off the electrical supply at the power outlet to the water heater.

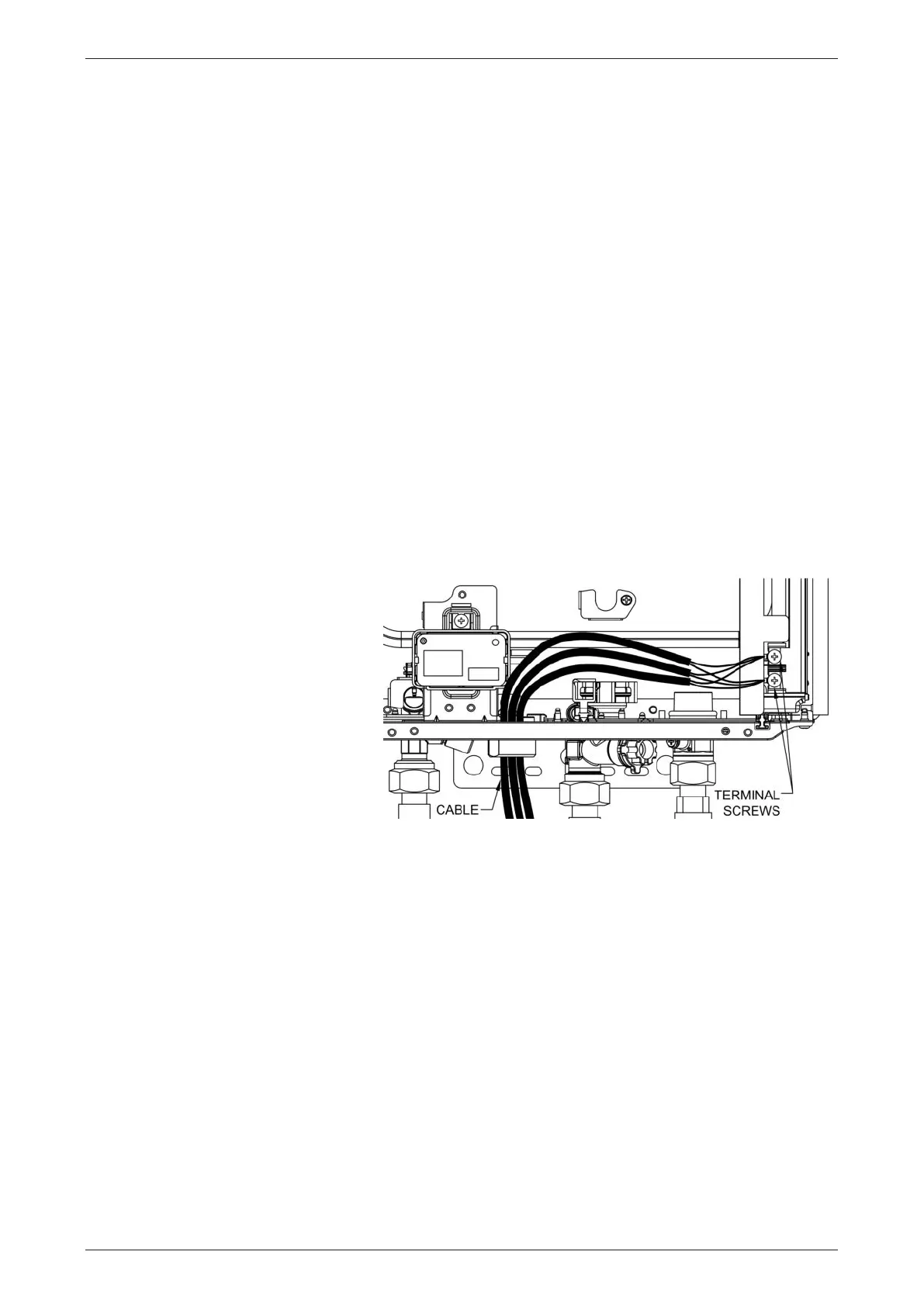

16. Reconnect the controller cables (if a temperature controller(s) is fitted).
Connect a cable lug from each
cable to each of the remote
controller terminals. Each cable
has two cable lugs.
Ensure the terminal screws are
seated firmly and there are no
excess wire loops inside of the
electrical cover.
The cable connections are
non-polarised.
Three cable lugs, one from
each controller, can be
connected to each remote
controller terminal.
17. Refit the front panel and screws to the water heater.
18. Refit the cover strips to the top and bottom of the front panel by inserting the two posts into the two
recesses and gently pushing into position.
19. Switch on the electrical supply at the power outlet to the water heater.
