CONNECTIONS – PLUMBING
All plumbing work must be carried out by a qualified person and in compliance with the Standard
AS/NZS 3500.4 and all local codes and regulatory authority requirements.
All gas work must be carried out by a qualified person and in compliance with the Standard AS/NZS 5601.1,
all local codes and regulatory authority requirements.
CONNECTION SIZES
Model
874 series 876 series
Hot water outlet connection R 3/4 -
50°C limited outlet connection
-
R 3/4
Cold water inlet connection R 3/4 R 3/4
Gas inlet connection R 3/4 R 3/4
WATER INLET AND OUTLET
All pipe work must be cleared of foreign matter before
connection and purged before attempting to operate the
water heater. All olive compression fittings must use brass
or copper olives. Use an approved thread sealant such as
Teflon tape on all threaded joints. Only use sufficient thread
sealant to seal a joint. Refer to the sealant manufacturer’s
guidelines for how much and where to use.
Warning: Sealant must not be allowed in the waterways
of pipe work or fittings. Excess sealant may be carried into
the water heater where it will damage components and
block the internal filters. This damage to components or
blockage of filters is not covered by the Rheem warranty
and a service rectification fee will be charged.
A full flow gate valve or ball valve must be installed on the
cold water line to the water heater. A non-return valve or
stop tap must not be installed. An acceptable

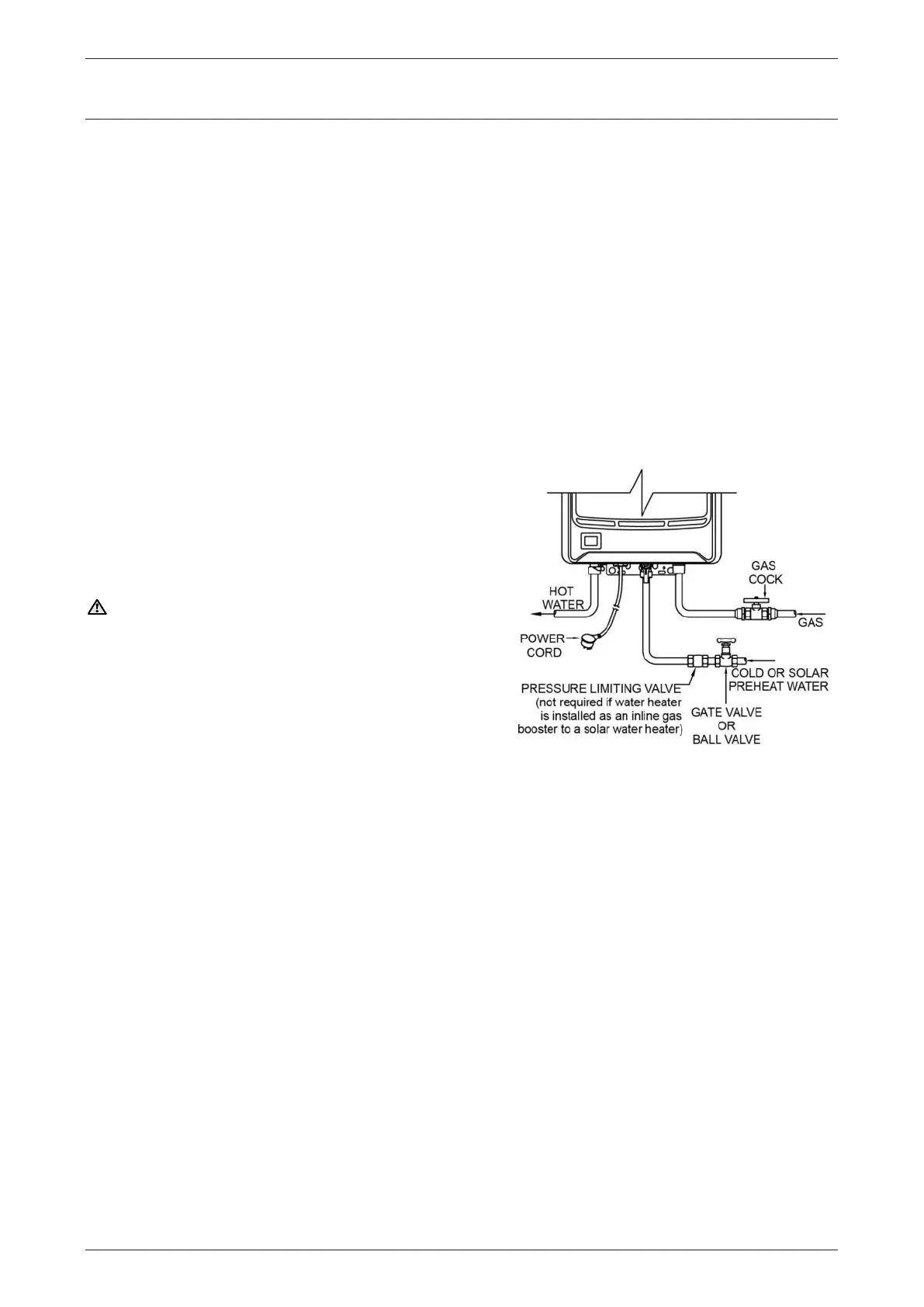

arrangement is shown in the diagram. Refer also to “Hot
Water Delivery” on page 24 and to “Mains Water Supply” on
page 23.
A disconnection union must always be provided at the cold water inlet and hot water outlet on the water heater
to allow for disconnection of the water heater.
Insulation used on the cold and hot water lines must extend up to the cold water inlet and hot water outlet of
the water heater.
This water heater is intended to be permanently connected to the water mains and not connected by a hose-
set. A braided flexible hose or semi-flexible connector may be used for connection to the water heater, where
permitted by AS/NZS 3500.4.
Notes
• It is essential all pipe connections be correctly aligned, otherwise component connections within the water
heater may be strained and / or components themselves misaligned. It is recommended also, wherever
possible, pipe connections be made at the water heater first and final pipe runs be made in soft copper
pipe to allow some adjustment for misalignment.
• Use the spanner flats on the water heater fittings and take care to avoid twisting the water inlet and outlet
pipes inside the jacket.
Gas Water Heater
Cold (or Solar Preheat) and Hot Water
and Gas Connection Details
