POSITIVE TERMINAL (LARGE)
NEGATIVE TERMINAL (SMALL)
RIGHT CHANNEL
FRONT (+)
LEFT CHANNEL
CHASSIS
GROUND
OEM
RADIO
POSITIVE TERMINAL (LARGE)
NEGATIVE TERMINAL (SMALL)
RIGHT CHANNEL
FRONT (+)FRONT (-)
LEFT CHANNEL
OEM
RADIO
POSITIVE TERMINAL (LARGE)
NEGATIVE TERMINAL (SMALL)
RIGHT CHANNEL
FRONT (+)FRONT (-)
LEFT CHANNEL
OEM
RADIO
POSITIVE TERMINAL (LARGE)
NEGATIVE TERMINAL (SMALL)
RIGHT CHANNEL
FRONT (+)FRONT (-)
LEFT CHANNEL
OEM
RADIO
8 OHM WIRING KIT
8 OHM WIRING KIT
3
help.retromanufacturing.com tech@retromanufacturing.com

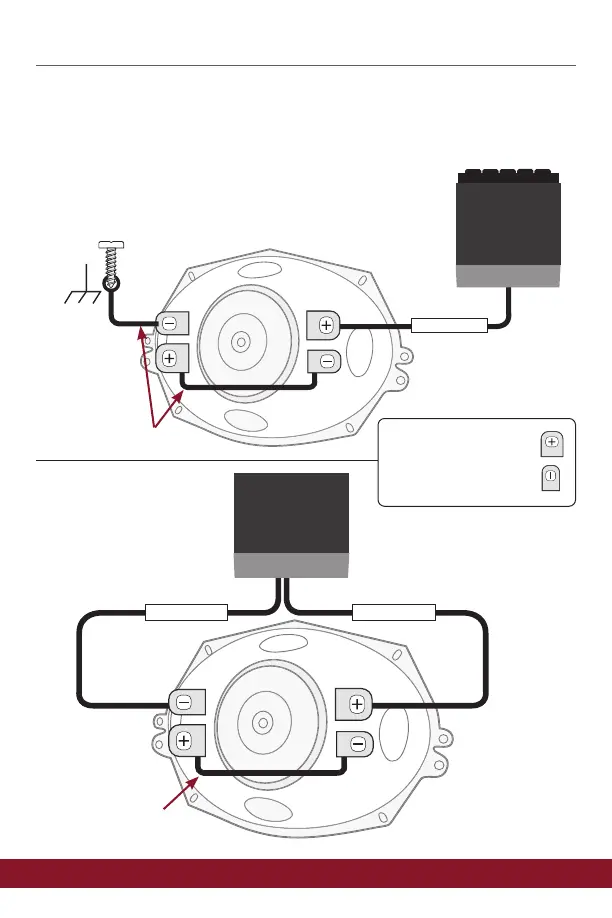

OEM Wiring Diagram
RetroSound® Stereo Dash Speakers can also be wired in series using the
included 8 ohm wiring kit for factory radios requiring an 8 ohm speaker.
WARNING: These wiring methods are only for OE factory radios rated at 8 to 10 ohms
OE Factory Radio with
chassis ground
OE Factory Radio
with radio ground
