en-26

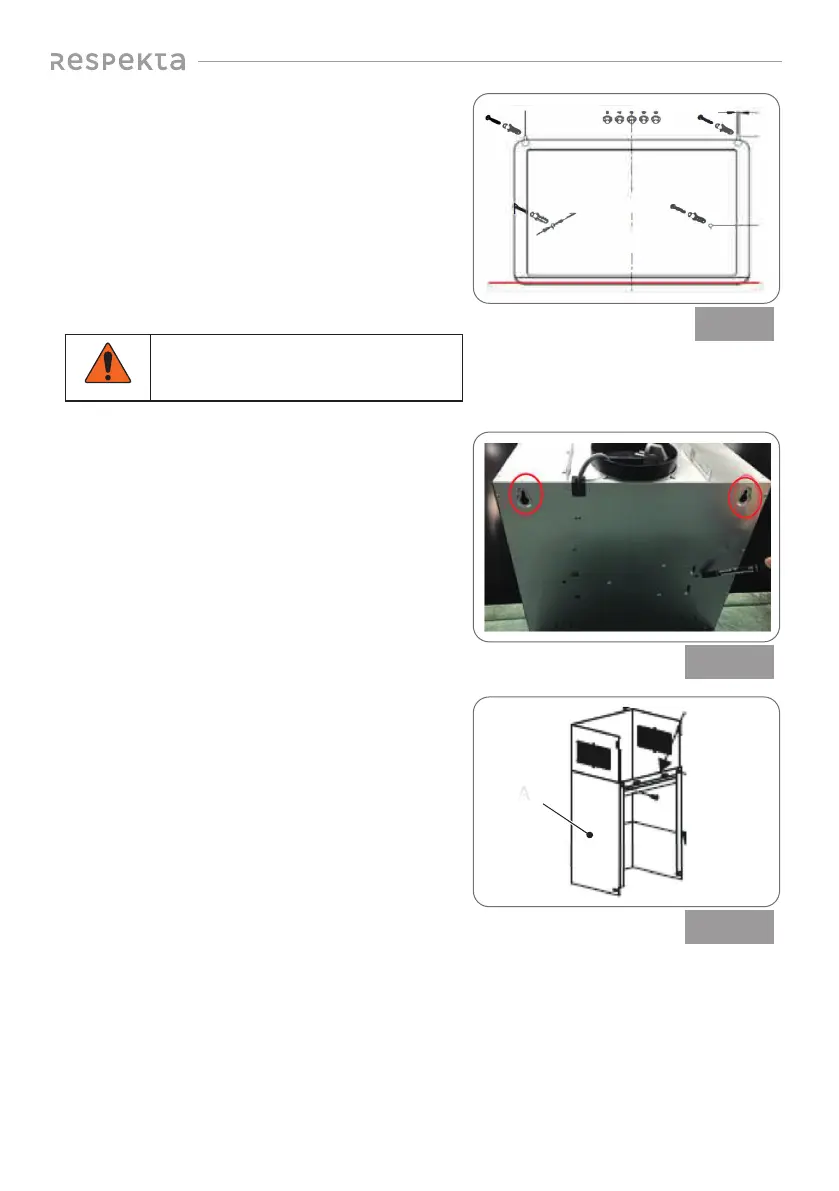

- Position the supplied template with the bottom
edge on the line you have drawn and mark the hole
positions.
- Use a suitable 8mm bit to drill 30mm deep holes
in the wall in each of the 4 positions marked. As
a precaution, check the diameter of the screw
anchors.
- Insert screw anchors into each of the 4 holes.
- Screw a 4x35 mm countersunk screw into the two
upper anchors.
CAUTION: The screw heads should
protrude 3 - 5mm from the wall anchors in
order to allow the hood to be suspended.
Fig. 5.9
- Suspend the hood from the two screws in the wall
using the two slots on the rear of the appliance.
- Fit the bottom chimney bracket on the top of the
bottom chimney with two 8mm countersunk screws.
- Fit the bottom chimney section to the hood.
- Force the top chimney into the bottom chimney
section from above.
Fig. 5.10
- Mount the support plate on the top of the chimney
(A) with two 4x8mm countersunk screws.
- Position the assembled chimney sections on the
hood.
A
A
Fig. 5.11
