5.2.8 Overview of installation components
1
1
2
2
3
3
4
4
6
6
7
7
5
5

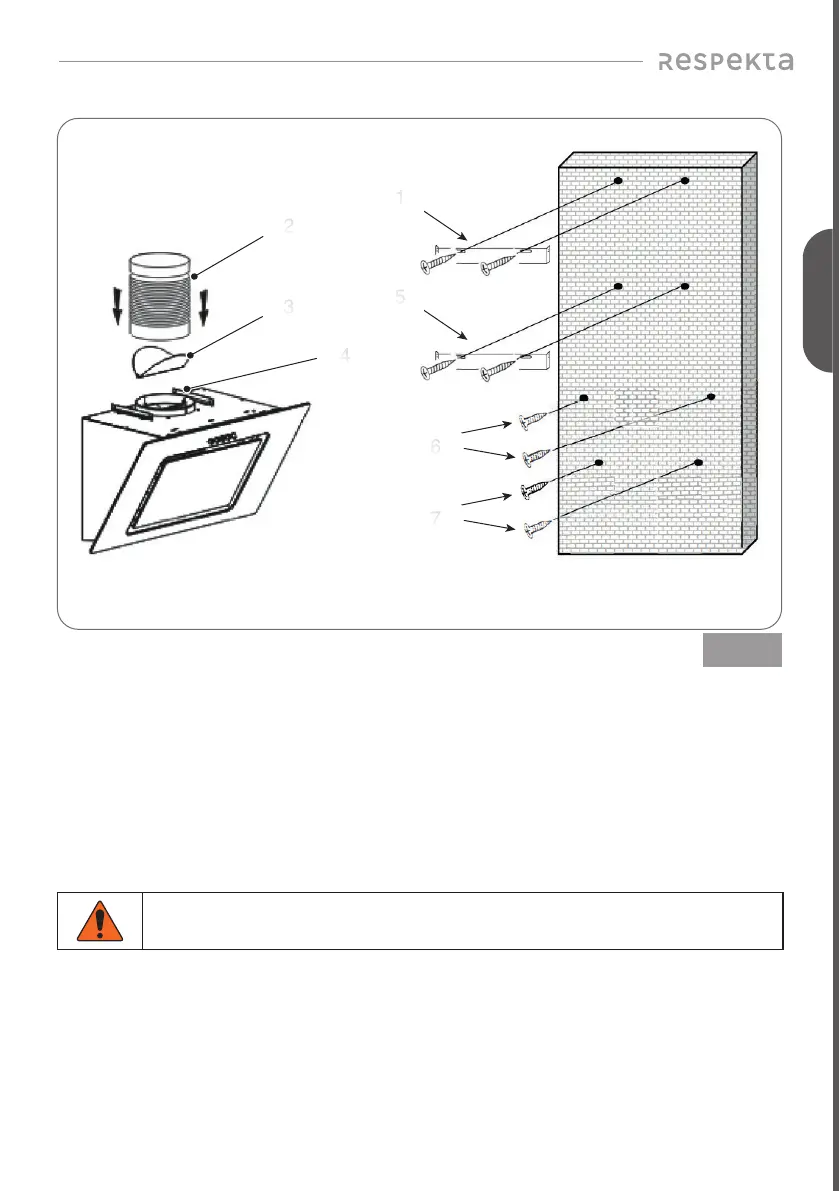

Fig. 5.4
1 - Top chimney mounting bracket
2 - Extraction duct
3 - V-flap
4 - Bottom chimney bracket and fixing flange
5 - Chimney fixing flange
6 - Hood fixing screws
7 - Safety screws
Before installing the hood, switch off the main power switch to disconnect power from the
socket from which the hood is powered.
CAUTION: Before installing the hood, fit the V-flap as described below.
