6 Assembly and
installation
Assembly and unit installation instructions
The unit consists of an outdoor unit and an indoor
unit, which can be hung in the desired vent window
using the mounting brackets included in the scope
of delivery. When positioning, observe the following
instructions:
n Check the contents of the packaging for com-
pleteness and check the unit for visible trans-
port damage. Report any damage immediately
to your contractual partner and the shipping
company.
n Only use the installation material included in
the scope of delivery to mount the unit.
n Lift the unit on the corners and not on the
refrigerant or condensate drainage connec-
tions.
n Avoid deformation due to pressure and tensile
stress as well as stress on the refrigerant
piping due to sharp bends or other mechanical
forces.
n The connecting lines must not be damaged or
kinked.
n External damage to the protective jacket of the
connecting lines must be checked immediately
for deeper damage and repaired.
Installation in the vent window
n Screw the mounting brackets for the outdoor
unit to the brackets for the indoor unit. Use two
M6 screws for each respectively.
1
2

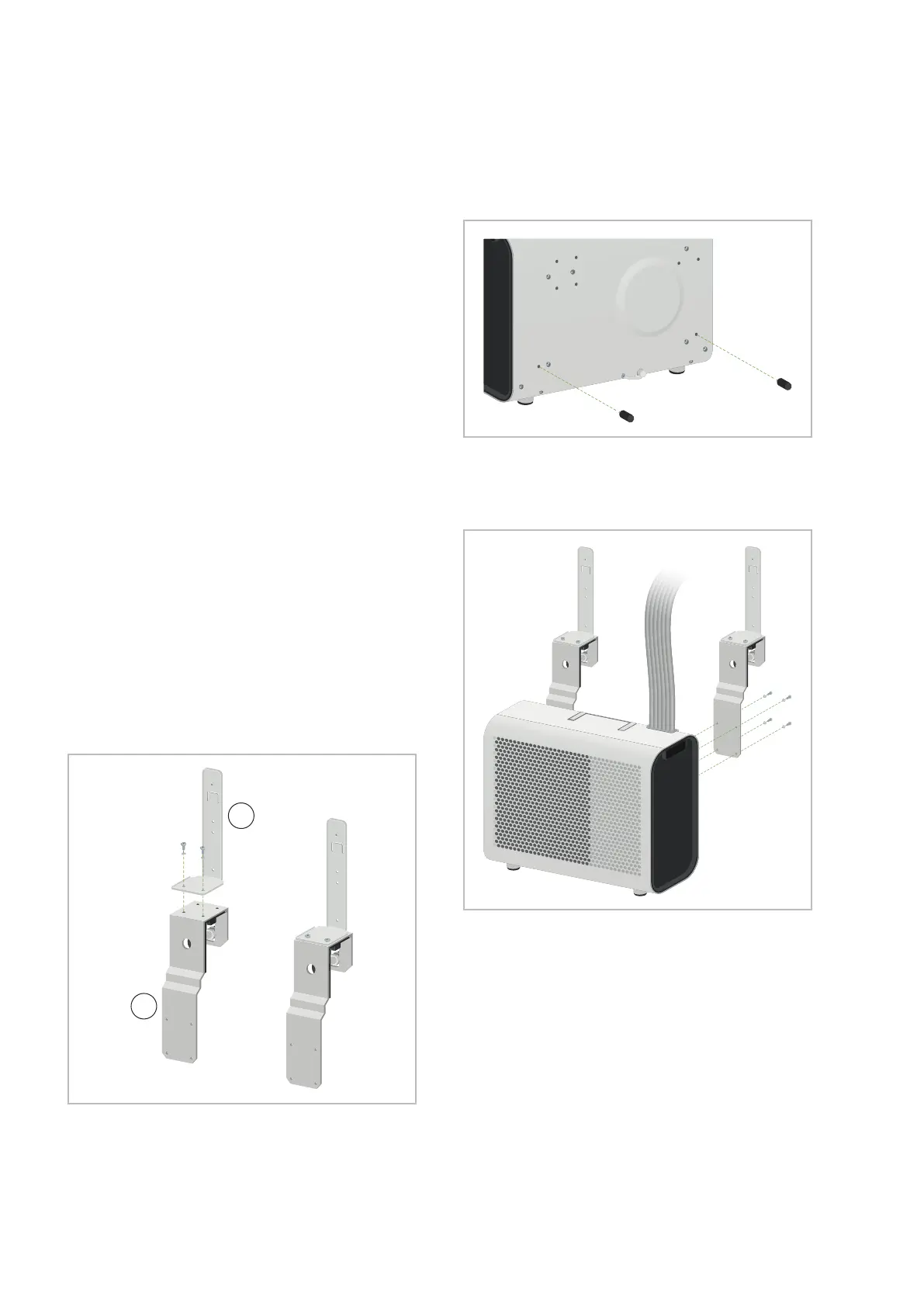

Fig. 6: Mounting the brackets
1: Indoor unit bracket
2: Outdoor unit bracket
n Screw the rubber buffers into the holes pro-
vided on the back of the outdoor unit.
Fig. 7: Screwing in the rubber buffers
n Screw the mounting brackets to the outdoor
unit. Use four M6 screws for each respectively.
Fig. 8: Mounting the brackets on the outdoor unit
