6 Electrical wiring
Electrical wiring diagram
CN 5
CN 7
L
COMP
P1
CN 2
CN 2
CN 3
CN 6
M
CN 9
CN 18
CN 3
CN 4
CN 1
C
A
B
1
2
3
5
4
6
7
8
10
9
11

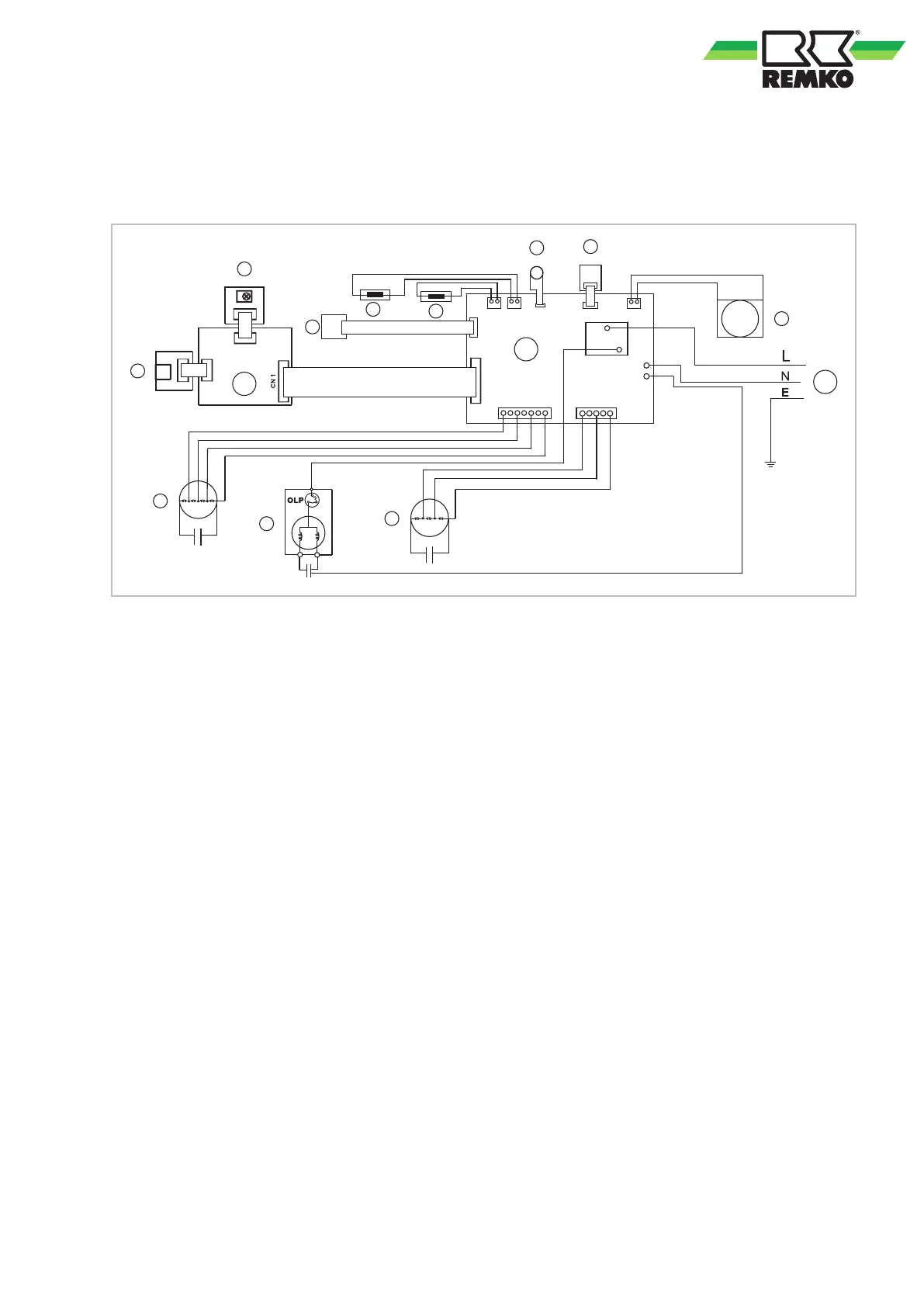

Fig. 15: Electrical wiring diagram
A: Control board
B: Display board
C: Power supply
1: WiFi interface board
2:
3: Liquid level switch
4: Probe
5: Probe
6: Swing motor
7: UVC generator
8: Compressor
9: Fan motor, condenser
We reserve the right to modify the dimensions and design as part of the ongoing technical development
process
W
i-Fi stick
The WiFi stick, available as an accessory, allows the unit to be operated via a smartphone, tablet or PC. To
do this, insert the WiFi stick into the corresponding port on the back of the unit. Please refer to the separate
instructions for the WiFi stick for help with setting it up.
