5 Electrical wiring
5.1 General notes
n The units are operated with 220-240 V/50 Hz
alternating current
n The electrical connection is made using a built-
in mains cable with earthed safety plug
WARNING!
The electrical connection to the units must be
made at feed-points with residual current
devices in accordance with VDE 0100, Section
704. When installing the units in extremely
damp environments such as laundry rooms,
showers etc., the unit must secured with a
residual current device provided by the cus-
tomer in accordance with the regulations.
n Extensions to the connection cable may only
be carried out by authorised electricians, sub-
ject to the length of the cable, connected load
of the unit and taking into consideration how
the unit is used at its location
n The L
TE 80 is intended for operation on a
power supply network with a system impe-
dance Zmax at the transfer point (house con-
nection) of max. 0.09 Ohm. The user must
ensure that the unit is only operated on a
power supply network that meets these
requirements. If necessary, the system impe-
dance can be obtained from the local power
supply company
CAUTION!
All cable extensions must only be used in fully
un-reeled or reeled of
f condition.

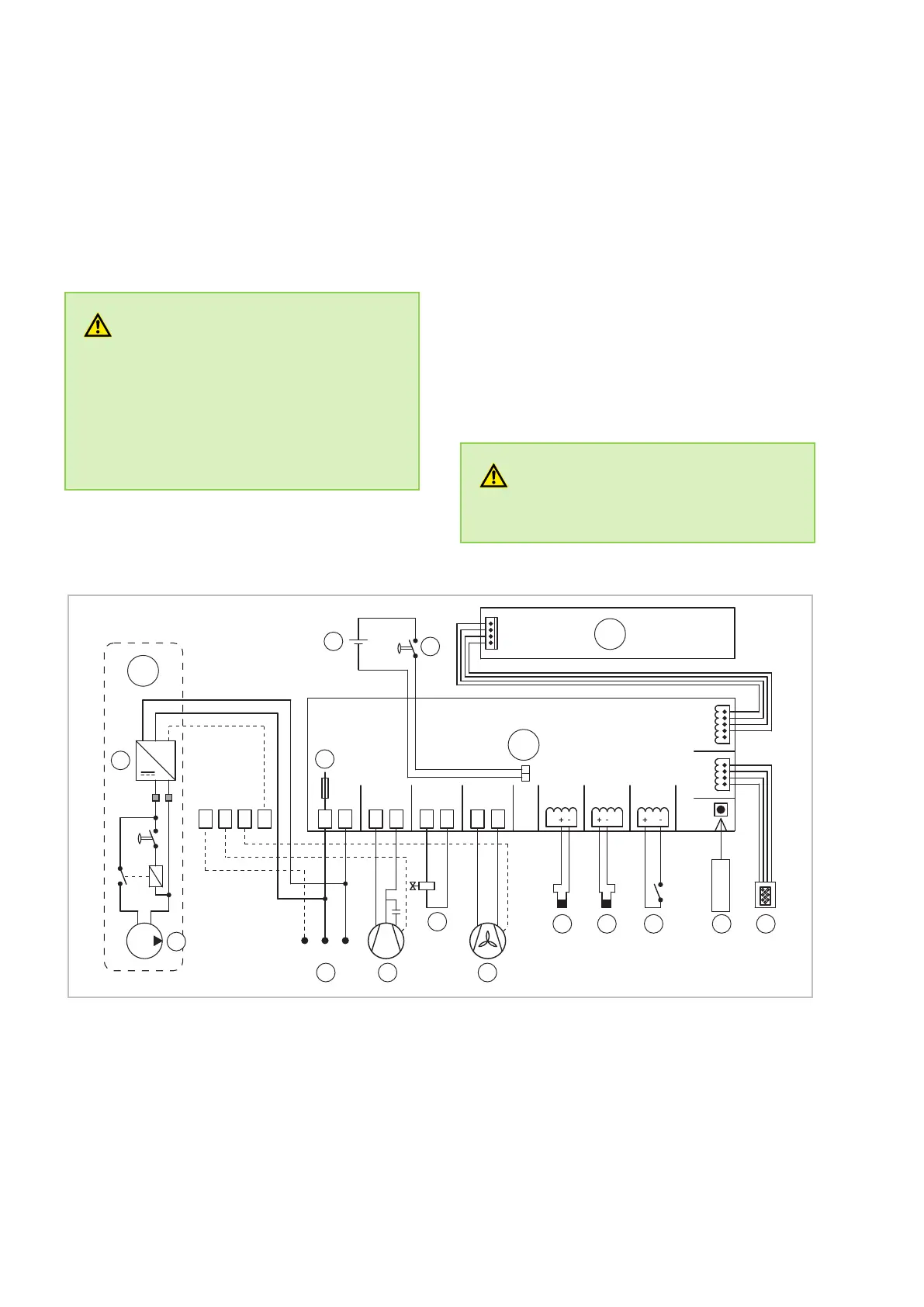

5.2 Electrical wiring diagram
14
13
~
A
B
21 4
3
5 6 7 8
1
9
2 3 4 5 6 7 8
PE
PE
PE
10
C
PE
L N
11
12
PE
Fig. 7: Electrical wiring diagram
A: Control board / B: Display circuit board
C: Optional
1: Power supply
2: Compressor
3: Solenoid valve
4: Fan motor
5: Evaporator probe
6: Condenser probe
7: Water stop probe
8: RESET button
9: Humidity probe
10: Fuse 3.15A 250V
11: Mains adapter
12: Condensate pump
13: "kWh" key
14: 9V block battery
REMKO LTE Eco series
