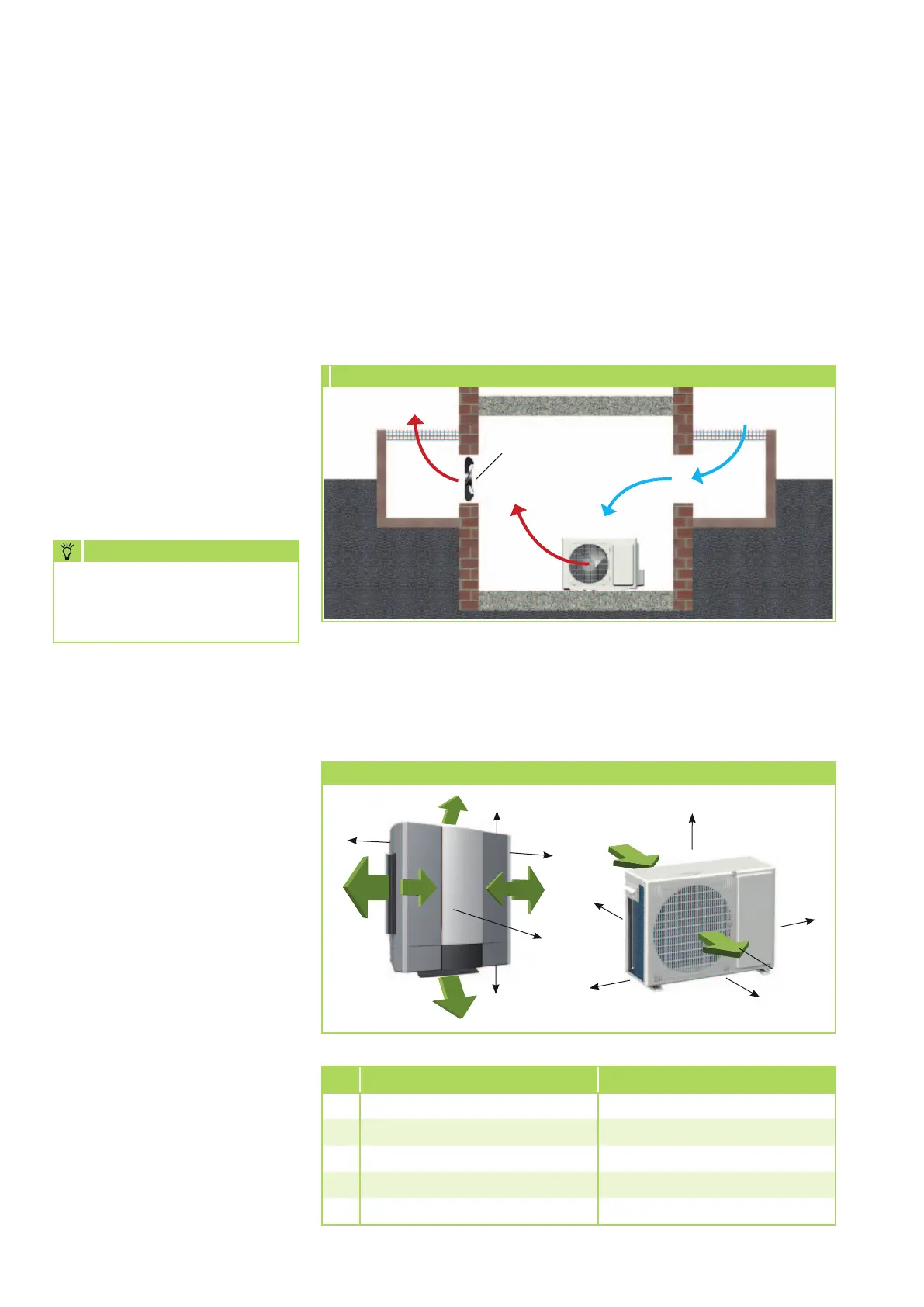

Installation inside buildings
■
Ensure that heat can dissipate
adequately when placing the
outdoor component in cellars,
attics, adjoining rooms or halls
(figure 7).
■
Install an additional fan with
a rated flow comparative to
that of the outdoor component
being installed in the room.
This is used in conjunction with
ventilation ducts to compensate
any pressure losses (figure 7)
■
Ensure a continuous and
unobstructed air flow from
outside, preferably using
sufficiently large air intakes
placed opposite each other
(figure 7).
Minimum clearances
Observe the minimum clearances
to allow access for maintenance
and repair work and facilitate
optimum air distribution.
ATY 261 DC AT ATY 351 DC AT
A 100 mm 100 mm
B 700 mm 700 mm
C 400 mm 400 mm
D 100 mm 100 mm
E 300 mm 300 mm
■
Comply with any regulations
and conditions affecting the
structure of the building.
If necessary, fit acoustic
installation.
Minimum clearances
E
C
B
A
D
1000
1000
1000
1000
Air intake
Air
discharge
Warm air
Cold
Fresh air
Light
well
Outdoor component
Warm air
Light
well
Additional
fan
7 Installation inside buildings
300
In heating mode, condensation
formation may occur due to
cold surfaces.
NOTE
REMKO ATY
22
