MOUNTING TV STAND
Part list:
(A) – Middle piece
(D) – Base swivel D
(B) – Base swivel B
(E) – Base iron plate
(C) – TV stand
(F) – Screws BB 4*10 (4pcs)
Note:
-Do not overtighten the screws. You could damage the screws or the thread.

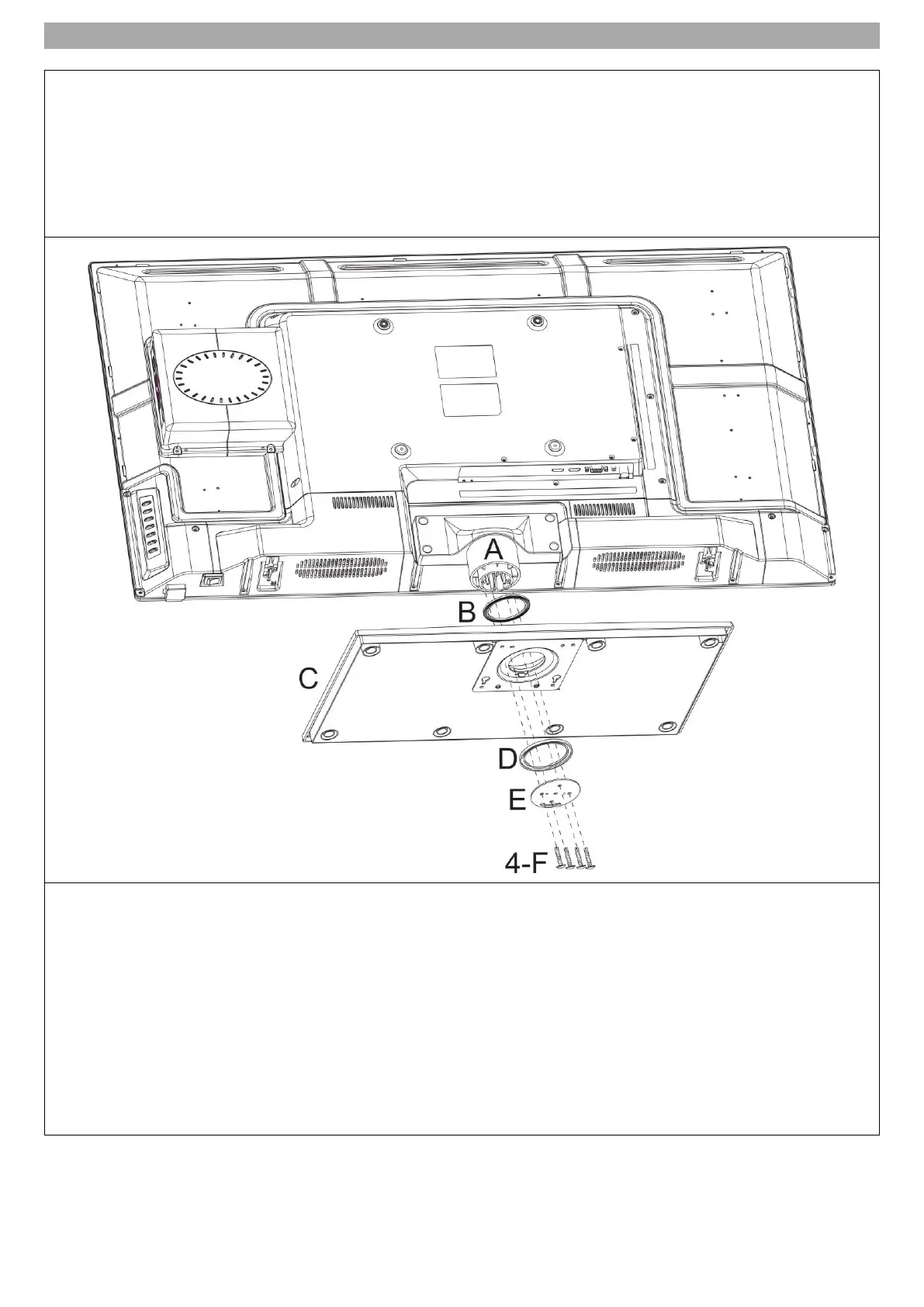

Picture 1:
1. Place the TV set on a flat and lightly padded surface with the display facing downwards. The
Centrepiece (A) is already attached to the TV set.
2. Pull the Base swivel (B) over the underside of the Centrepiece (A).
3. Hold the TV stand (C) against the underside of the Centrepiece (A) and ensure that it is correctly
aligned. The short side faces the back of the TV set.
4. Insert the Base swivel D (D) into the Base iron plate (E) and place it on the TV stand (C) from the
underside. Ensure that the recess in the Base iron plate (E) faces the front of the TV set.
5. Screw the TV stand (C) to the Centrepiece (A) using the BB 4*10 screws (F).
