CONNECTION
Warning: speaker connections should be only made by qualified and experienced
personnel having the technical know-how or sufficient specific instructions to ensure that
connections are made correctly and to prevent any electrical danger. To prevent any risk of
electric shock, do not connect speakers when the amplifier is switched on. Before turning the
system on, check all connections and make sure there are no accidental short circuits. The entire
sound system shall be designed and installed in compliance with the current local laws and
regulations regarding electrical systems. This speaker can be linked to 100 V (/ 70 V) constant
voltage lines.
TERMINAL STRIP CONNECTION

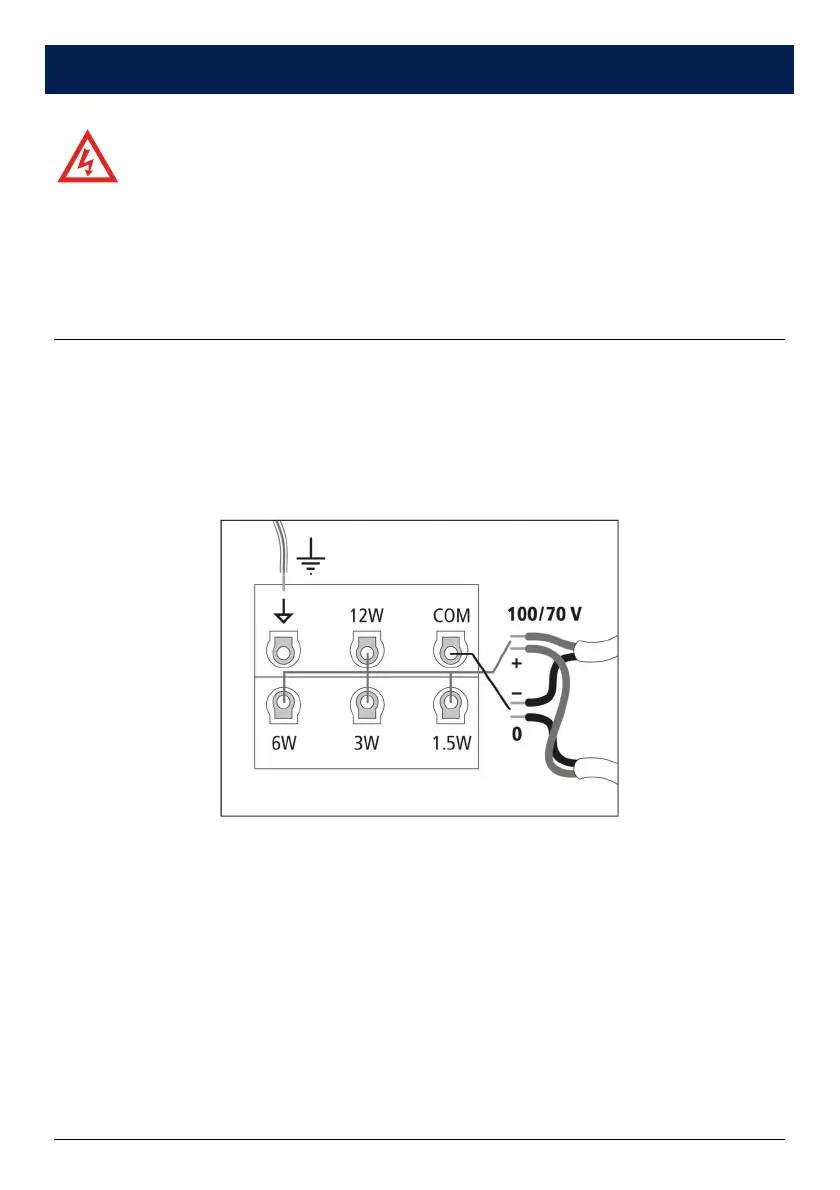

Connections with the audio line are made by using the ceramic terminal block inside the plastic junction box
connected at the end of the cable. The terminal strip allows to connect both input and output cables (to link
other speakers in parallel). Applicable wire section: from 1 mm² to 4 mm².
1. Open the necessary holes in the plastic junction box and insert cables.
2. Connect the line positive wire to only one speaker input among 12W - 6 W - 3W - 1.5W (choose according
to the desired power).
3. Connect the line negative wire to the speaker COM input.
4. If necessary, connect in the same way the output cable to link other speakers in parallel.
5. Connect the earth wire to its respective contact (indicated on the ceramic terminal strip).
If speakers are connected to a 70 V line, their power rates will be halved.
