NOTE! Do not cover the mesh cover of the climator unit.
NOTE! Do not put anything into the protection grid.

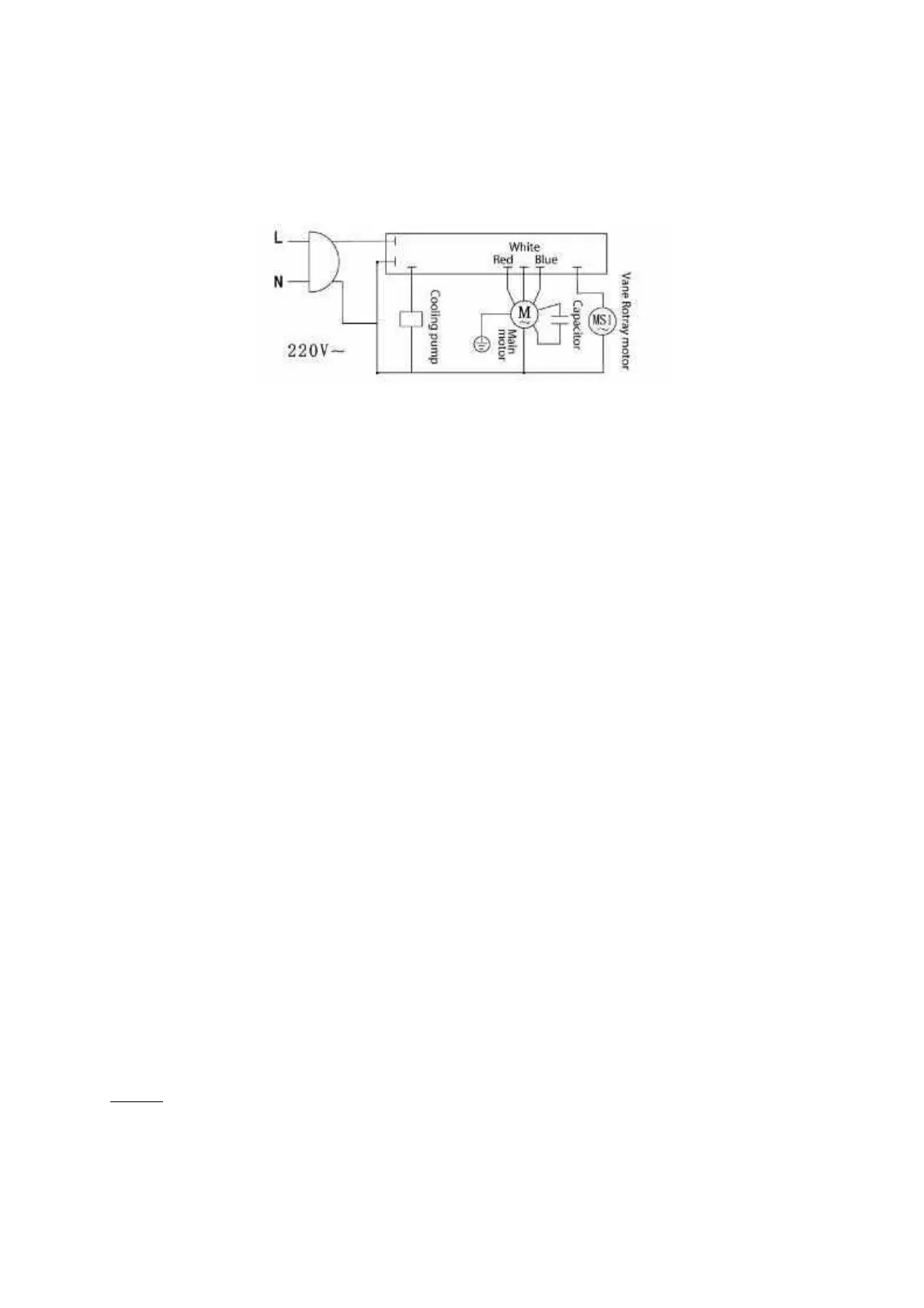

ELECTRIC DIAGRAM
DESIGNATION
The climator unit is designated for ensuring temperature comfort in a room by means of air blow. The climator
unit is a fan-like device.
Thermal comfort is improved by water evaporation. Cooling the air by evaporation is a natural cooling method
resembling the effect of wind at a water reservoir which lowers temperature and has a relaxing, cooling impact
on people.
When cold water enters the air, the result is a mixture of air and water particles. This change requires a higher
temperature which is why energy or latent heat are taken from water particles that lower the existing air
temperature.
Thanks to this function, it is possible also to remove any dust, pollen and other pollutants, ensuring cool, fresh
and clean air.
A stronger cooling effect can be obtained by using freezer packs.
The packs should be filled with water in the amount marked on the packaging. Freeze the water (pack) in a
household refrigerator and then insert it in cold water in the device tank.
It is also possible to add ice cubes into the device water tank.
PARTS
1. The climator.
2. Feet 4 pcs.
3. Cooling container 2pcs.
4. The remote control (KR-2011/ KR-7010)
PLEASE NOTE!
The freezer packs supplied together with the device are empty. Fill them with water to ‘MAX’ level indicated
on the pack.
The feet
The feet shall be installed by screwing them in the appropriate sockets in the climator unit base.
OPERATING INSTRUCTIONS
Start-up
ATTENTION!
Make sure that the power source to which the appliance is to be connected is accordant with the parameters
specified on the rating plate.
