INSTALLATION

Check the appliance is electrically safe when you have nished.

Art No 215-0028 - Handrail fascia fixings

ArtNo.350-0010 - Fitting the plinth 1 (Kitchener)

ArtNo.350-0011 - Fitting the plinth 2 (Kitchener)

Outer plinth

Outer plinth xing screw

Inner plinth

Final fitting

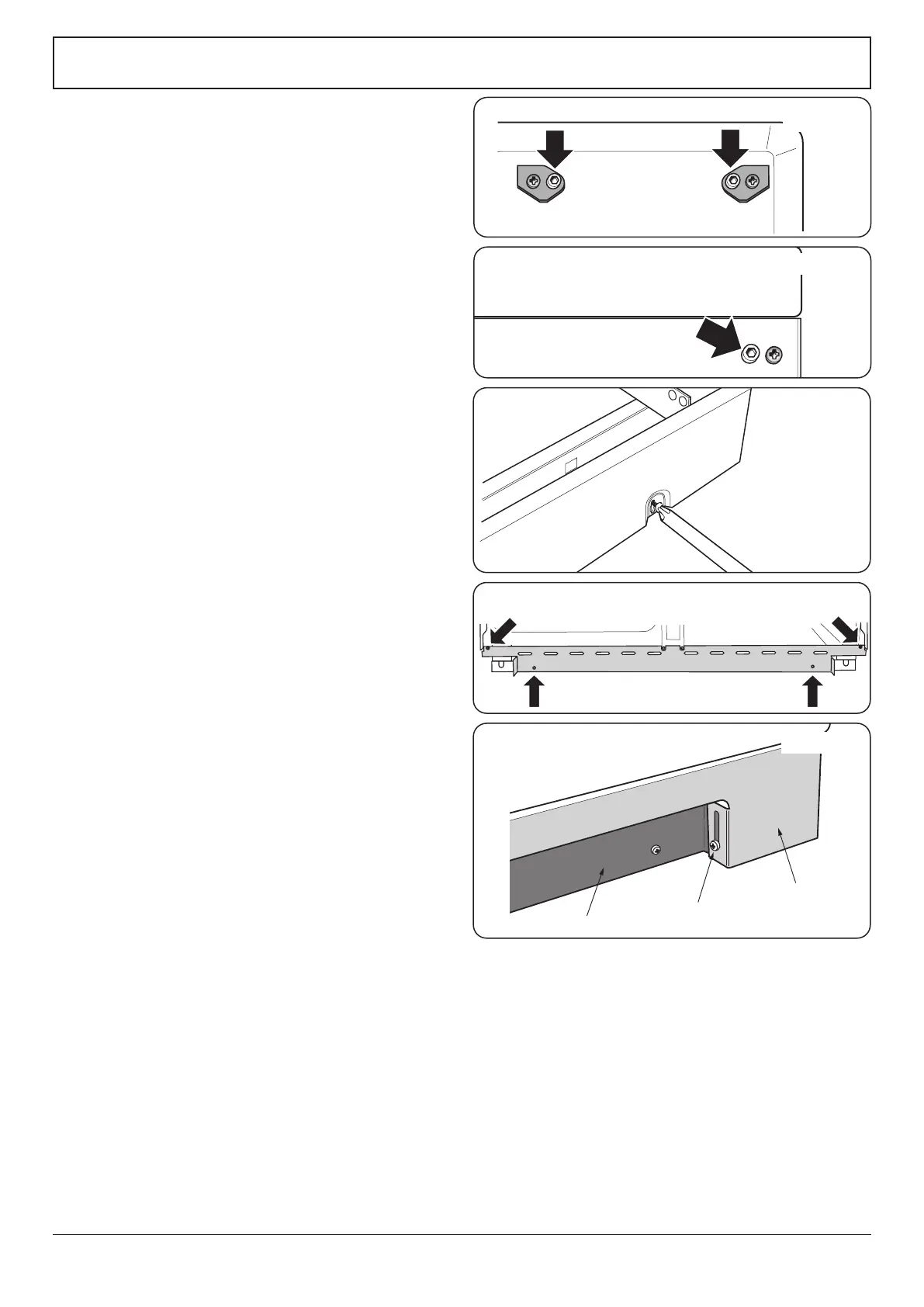

Fitting the handles and handrail

Remove the 4 mm Allen screws from the doors (Fig. 11.13).

Fit the door handles and secure using the 4 mm screws.

n

The handles should be above the xings.

Remove the 4 mm Allen screws from the top corners of the

fascia (Fig. 11.14). Fit the front handrail in position and

secure using the 4 mm screws.

Fitting the 1-piece plinth

Loosen the three screws along the front bottom edge of the

cooker. Hook the central keyhole over the central screw. Twist

and t each end keyhole over their respective screws. Tighten

the xing screws (Fig. 11.15).

Fitting the 2-piece plinth

Fit the inner plinth to the bottom front of the cooker using

the 4 screws provided (Fig. 11.16).

Fit the outer plinth (2 screws, 1 each end) to the inner plinth.

The height of the outer plinth can be adjusted by sliding it up

or down via the slotted hole (Fig. 11.17).

Fitting the splashback

Position the splashback on the rear of the hotplate and secure

with the screws supplied.

Customer care

Installer: Please complete your details in this guide, inform

the user how to operate the cooker and hand over the

instructions.

Thank you.

ArtNo.215-0026 - Handle gaskets fixed

Fig. 11.13

Fig. 11.14

Fig. 11.15

Fig. 11.16

Fig. 11.17
