ArtNo.320-0017

Main oven light

ArtNo.320-0012 Removing the shelf 2

ArtNo.320-0015

Fitting the Handyack 1

ArtNo.320-0016

Fitting the handyrack 2

ArtNo.320-0011 Removing the shelf 1

ArtNo.320-0013 Removing the shelf 3

ArtNo.324-0002 Oven shelf

ArtNo.324-0010 Plate warming shelf

Accessories

Oven Shelves – Left-hand (Main) Oven

The oven shelves (Fig. 2.18) are retained when pulled

forward but can be easily removed and retted.

Removing and Retting the Oven Shelves

Pull the shelf forwards until the back of the shelf is stopped

by the shelf support (Fig. 2.19). The shelf has a small kink on

either side (Fig. 2.20). Lift the shelf upwards so that it will

pass over the shelf stop (Fig. 2.21) and then pull it forwards.

Ret in the reverse order, making sure to push it fully back.

Oven Shelves – Right-hand (Tall) Oven

The tall oven is supplied with four at cooking shelves

(Fig. 2.22) and a plate warming shelf (Fig. 2.23).

When using the tall oven, you can cook on all four shelves at

the same time, but make sure that they are well spaced out to

allow the hot air to circulate.

The Handyrack (Main Oven)

The Handyrack (Fig. 2.24) ts to the left-hand oven door

only. Food cooking on it is easy to attend to, because it is

accessible when the door is open.

The maximum weight that can be held by the Handyrack

is 5.5 kg (12 lb). It should only be used with the supplied

roasting tin, which is designed to t the Handyrack. Any other

vessel could be unstable.

It can be tted at two dierent heights. One of the oven

shelves must be removed and the other positioned to suit.

When the Handyrack is used in its highest position, other

dishes can be cooked on the bottom shelf position or base of

the oven.

When the Handyrack is used in its lowest position, other

dishes can be cooked on the second shelf position or base of

the oven.

To t the Handyrack, locate one side of it on the door bracket

(Fig. 2.25).

Then spring the other side out to clip it onto the other

bracket (Fig. 2.26).

Oven Light

Press the button to turn the light on (Fig. 2.27).

If the oven light fails, turn o the power supply before

changing the bulb. See the ‘Troubleshooting’ section for

details on how to change the bulb.

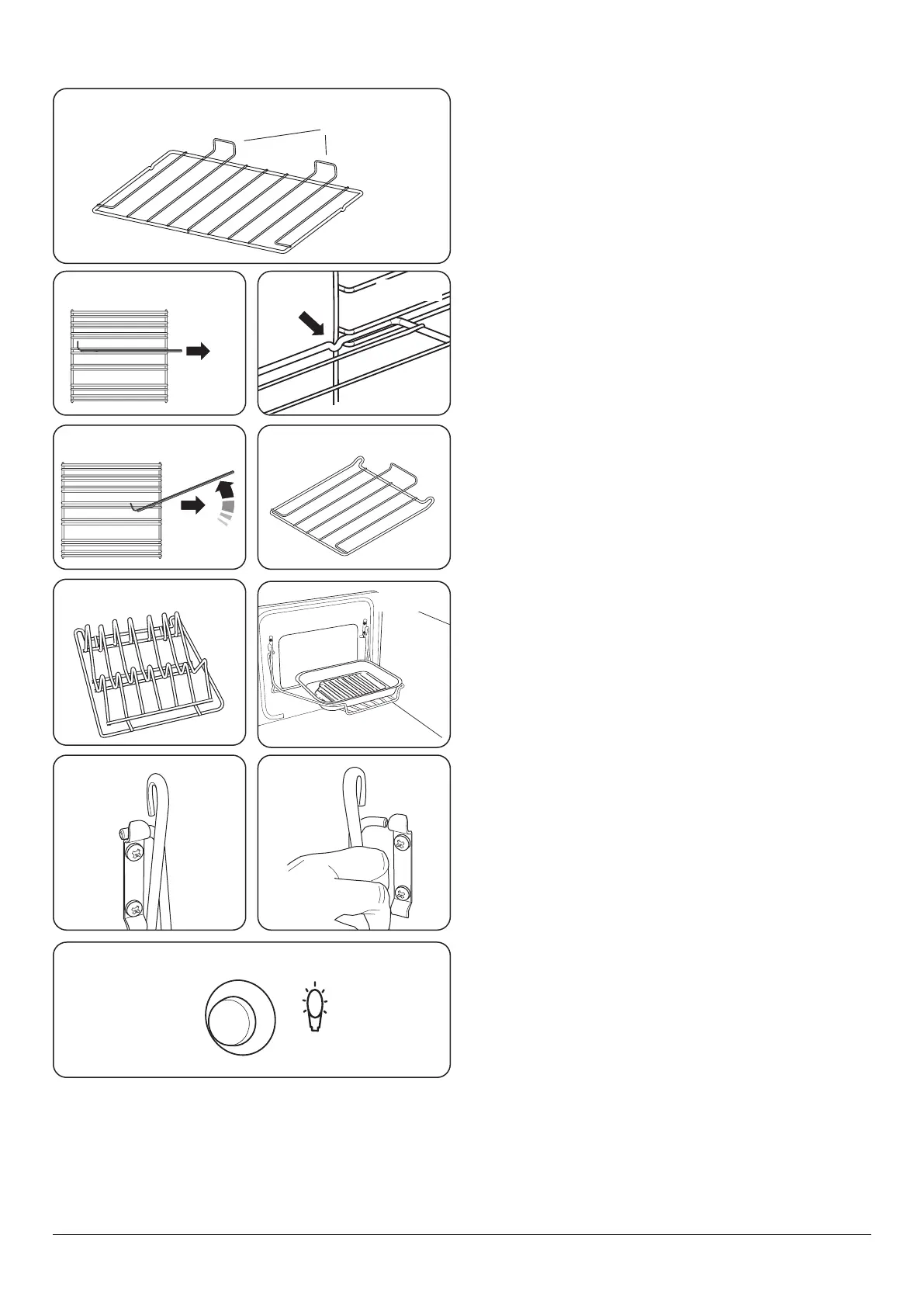

Fig. 2.18

Fig. 2.19 Fig. 2.20

Fig. 2.21 Fig. 2.22

Fig. 2.23

Shelf guard

Front

ArtNo.320-0014 Handyrack on LH door

Fig. 2.24

Fig. 2.25 Fig. 2.26

Fig. 2.27
