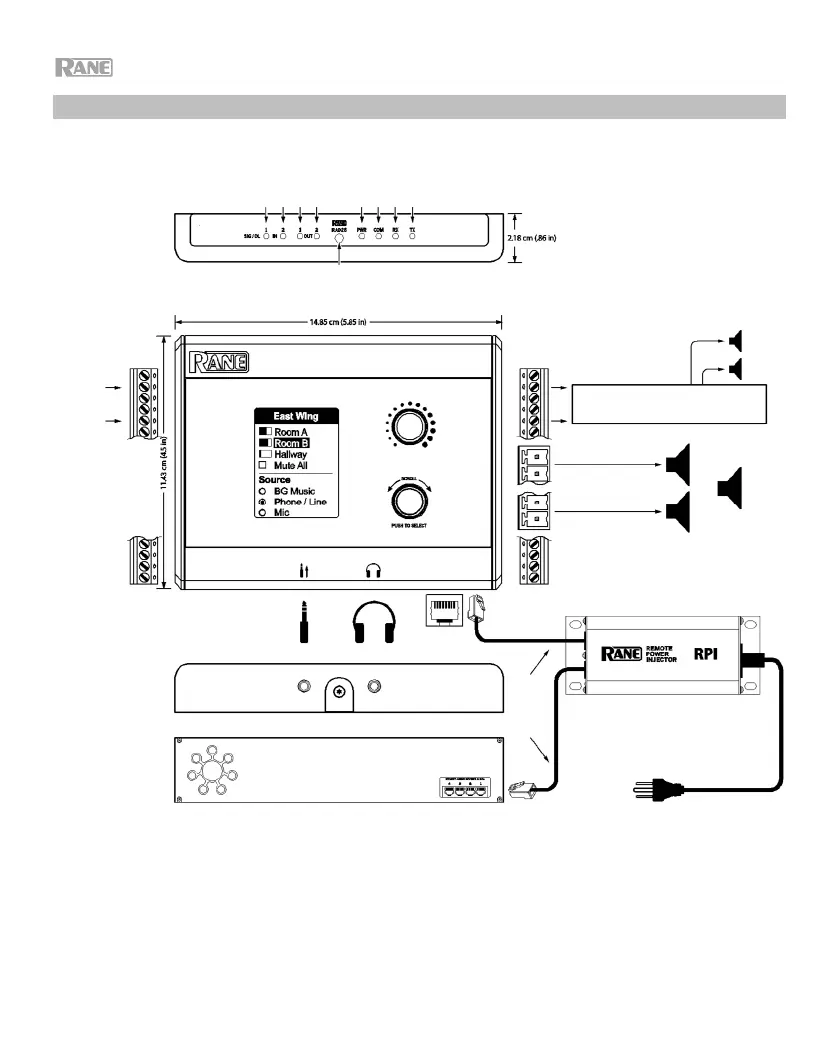

Setup
Items not listed under Introduction > Box Contents are sold separately.
For a full block diagram, visit the RAD26 product page at rane.com.
The CAT5 distance from a HAL RAD Port to
the RAD26 must not be more than 100 m
(325 ft). If needed, the RPI (sold separately)
can go anywhere in between to supply the
display and amplifier power.
Shielded
CAT 5e
(or better)
Line Input Headphone Output
Rear panel
RJ-45
4 W
4 W
(or 1
output
@ 8 W)
Rear Panel Inputs
Mic / Line /
Line-Plus
2 balanced
inputs
A 3-pin Line-
Plus Input
accepts a
stereo
unbalanced
source and
sums it to
mono.
3 Logic
Inputs
Push to talk,
Push to mute,
etc.
2 8 Ω louds
p
eaker out
p
uts
2 balanced line out
p
uts
3 Logic Outputs
Control another device, light,
projector, hot tub, etc.
External Amplifier
Any HAL, EXP1, or EXP3x
The Ambient Light Sensor dims the display and LEDs in darkened rooms.
Audio I/O Signals RAD Status Indicators
RAD26 Top View
RAD26 Bottom
View
Rear Panel Outputs
