Manual-1
MLM65
MIC & LINE MIXER
OPERATORS MANUAL
WEAR PARTS: is product contains no wear parts.
QUICK START
Are you being pursued by a slow-moving, yet tenacious, gang of
zombies? Do you need to get your new MLM65 installed before
they overwhelm you and eat your brain? Well, we at Rane are
here to help! Use this Quick Start to get the most out of your
MLM65 in the least amount of time.
Mic Inputs 1 through 6 may be microphone or line-level. e
choice between the two is made by pushing in the Input’s Line
button on the rear panel.
Push the Phantom Power (when needed) for each Mic Input.
While speaking/singing/shouting loudly into the micro-
phone, use a screwdriver to adjust the Gain pot until the OL
LED illuminates only during extreme peaks.
Push in the Aux 4 phono/line switch if you are connecting a
phonograph.
With the Stereo Cue button selected, match the input levels
of Aux 1 through 5 by playing typical program material into
each Aux input, selecting that input using the Stereo Selector,
and adjusting the Aux input level with a screwdriver until the
peaks on the Cue Meter hover around 0 to +7 dB.
With an audio mix playing at a loud level +7 dB to OL on
the Main Meter, adjust the Record Out level until the meter on
your recording device gets close to maximum without overload-
ing.
If you are installing the MLM65 with input sources that
don't change, Rane has an easy PDF template to ll out, print,
cut, and place labels above each input. Download this at the
MLM65 web page at www.rane.com/mlm65.html.
Look out behind you! Scissors are ineective on zombies.
100
2
4
8
6
OL
+7
+4
+2
0
-4
-2
-7
-10
-20
OL
+7
+4
+2
0
-4
-2
-7
-10
-20
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
10
9
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
10
9
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
10
9
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
10
9
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
10
9
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
10
9
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
10
9
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
10
9

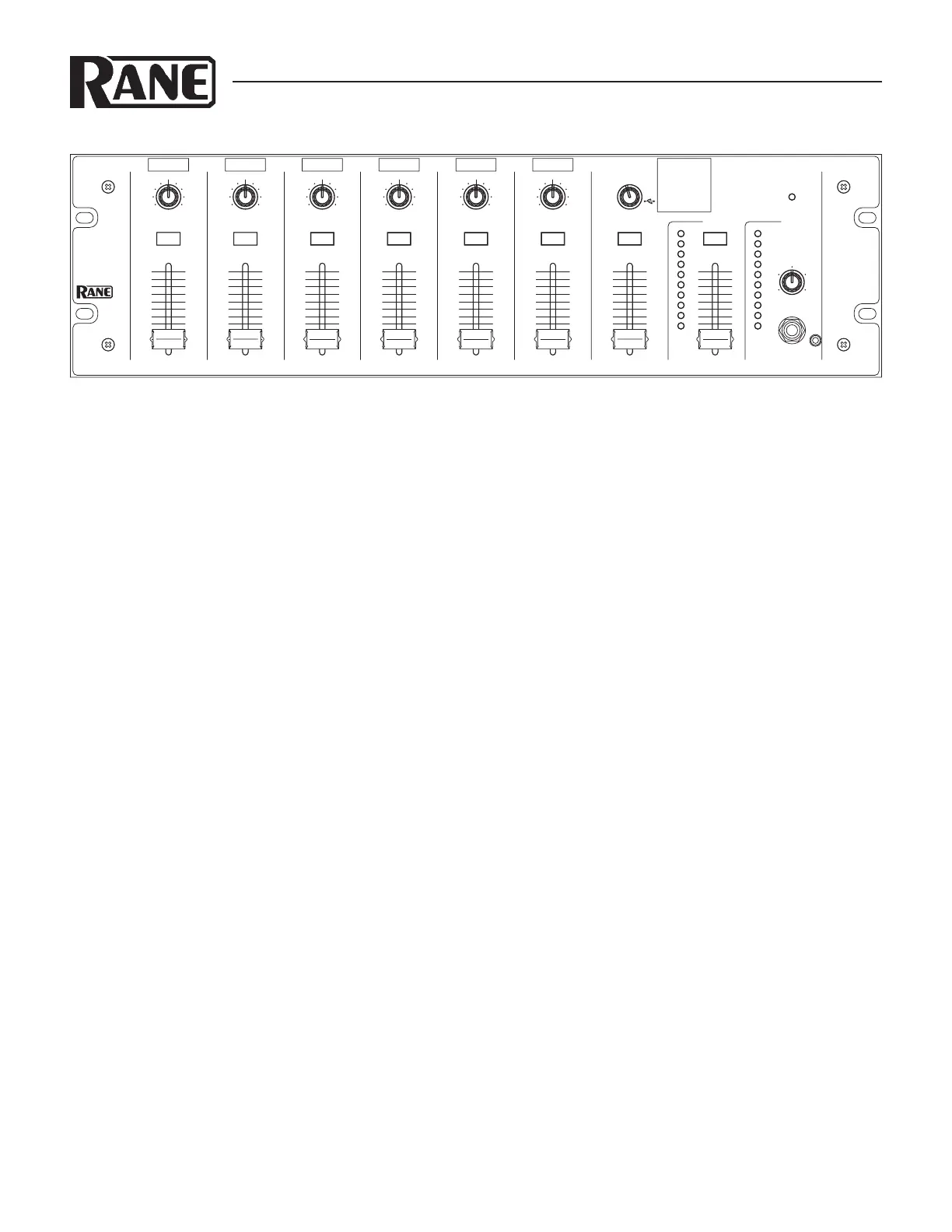

LEVEL
MLM 65
MIC / LINE MIXER
PAN
MIC 2
RL
CUE
LEVEL
PAN
MIC 1
RL
CUE
LEVEL
PAN
MIC 3
RL
CUE
LEVEL
PAN
MIC 4
RL
CUE
LEVEL
PAN
MIC 5
RL
CUE
LEVEL LEVEL
PAN
MIC 6 STEREO
RL
CUE
LEVEL
POWER
CUECUE
AUX
SOURCE
MAIN CUE
PHONES LEVEL
2 5
USB1
34
CONNECTION
When connecting the MLM65 to other components in your
system for the rst time, leave the power cord for last. is gives
you a chance to make mistakes and correct them without dam-
age to your fragile speakers, ears and nerves.
MIC INPUTS
e six XLR jacks provided on the MLM65 are balanced MIC/
LINE inputs. ey also accept unbalanced connections. Use
only shielded cable for inputs. For best noise rejection use two-
conductor-plus-shielded wire, even for unbalanced operation.
Connect the shield at both ends to help insure proper grounding.
See the Sound System Interconnection RaneNote for all cable
adaptations. Rane follows the AES recommended practice of
pin 2 positive, pin 3 negative, and pin 1 to shield. Switch any
input connected to a microphone to the MIC position (out) us-
ing the associated switches on the rear panel. When connecting
line-level signals, switch the input to the LINE position (in). A
phantom power switch is provided for each MIC input. If LINE
is selected, Phantom Power is disabled for that input.
AUX INPUTS
e ve Aux Inputs are line-level unbalanced inputs on stereo
RCA connectors. AUX 1 includes a 3.5 mm stereo TRS jack.
Only connect to one AUX 1 input (RCA or TRS) at a time.
When using AUX 4 as a phono input, connect the phonograph
ground wire to the phono ground post above the AUX 4 input.
MAIN OUTPUT
e MLM65’s Main Outputs are balanced, XLR Outputs. e
same wiring conventions as the XLR Inputs apply. For unbal-
anced Output connections do not tie pin 3 (i.e., “–”) to ground.
If the Main Output is connected to a mono loudspeaker system,
use either the left or right Main output jack and push in the
MONO switch.
continued on page Manual-4...
