Manual-8

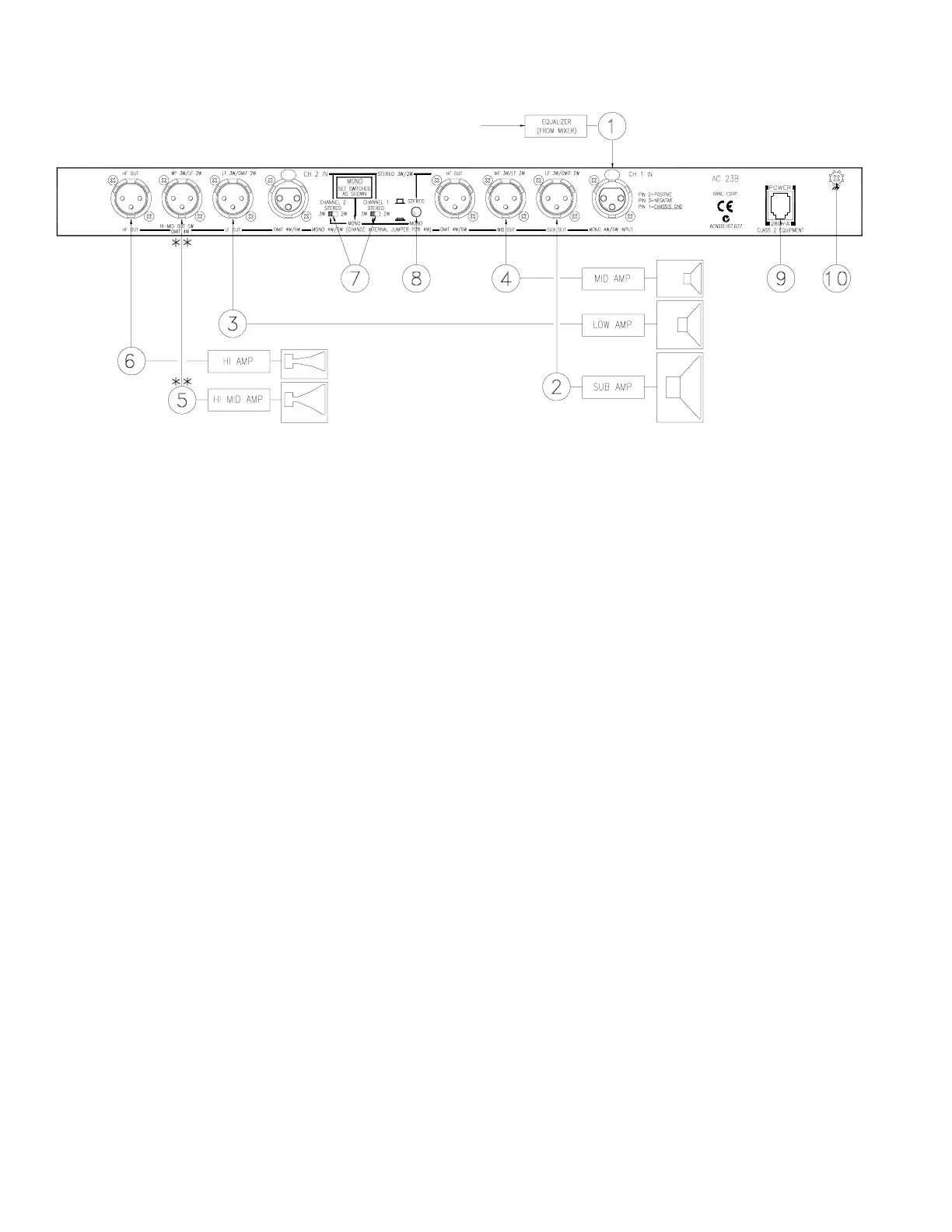

REAR PANEL: MONO 4-WAY AND MONO 5-WAY INSTALLATION
**THIS OUTPUT IS NOT USED FOR 4-WAY MONO OPERATION.
4-WAY USERS SEE JUMPER INSTRUCTIONS ON PREVIOUS PAGE.
Observe the labels below the Inputs and Outputs for Mono operation.
햲 MONO INPUT: Connect the output from your mixer or other signal source only to the CHANNEL 1 INPUT for Mono
operation; do not use the Channel 2 Input. See SYSTEM CONNECTION on page Manual-1 for wiring details.
햳 SUBWOOFER OUTPUT: Connect the SUB OUT to the input of the subwoofer (or bass bin) amplifier.
햴 LOW FREQUENCY OUTPUT: Connect the LOW OUT to the input of the low frequency (mid-bass) amp.
햵 MID FREQUENCY OUTPUT: Connect the MID OUT to the input of the mid frequency amplifier.
햶 Hl MID FREQUENCY OUTPUT (FOR MONO 5-WAY ONLY): Use this Output only for Mono 5-Way applications.
Omit this output when using the AC 23B as a Mono 4-Way Crossover. Mono 4-Way Jumper Instructions are on the previous
page. In 4-Way the AC 23 internally bypasses the Hi Mid section and defeats all front panel Hi Mid Controls. For Mono
5-Way connect the HI MID OUT to the input of the hi mid frequency amp.
햷 HIGH FREQUENCY OUTPUT: Connect the HIGH OUT to the input of the high frequency (tweeter) amp.
햸 2-WAY/3-WAY switches: Converts each channels outputs from 3-Way to 2-Way. For Mono 4-or 5-Way, slide these
switches to the 3-WAY position.
햹 MONO-STEREO switch: This should be in the MONO in position.
햺 POWER input connector: Use only a model RS 1 or other power supply approved by Rane. This unit is supplied with a
remote power supply suitable for connection to this input jack.
햻 Chassis ground point: A #6-32 screw is used for chassis grounding purposes. Always connect the crossover chassis to the
amplifier chassis. See the CHASSIS GROUNDING note on page Manual-7 for details.
