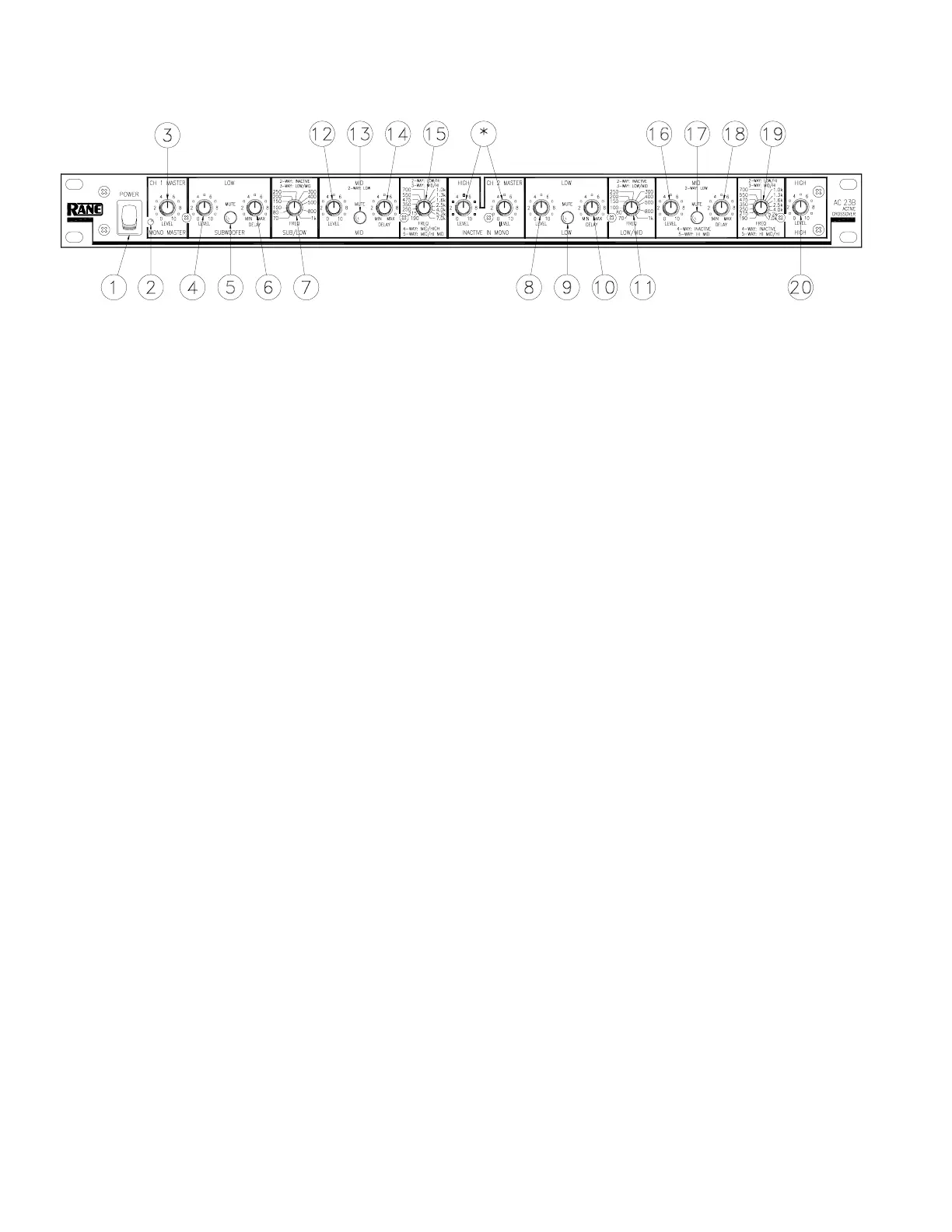

FRONT PANEL: MONO 4-WAY AND 5-WAY CONFIGURATION
Observe the labels screened below the controls for Mono operation.
POWER switch: Two guesses.
POWER indicator: When this yellow LED is lit, the unit is ready to operate.
MASTER LEVEL control: Sets the overall Level of the entire unit in Mono mode, without changing relative settings of
the individual Sub/Low/Mid/High Outputs. Unity gain for all Level controls is “7”.
SUBWOOFER LEVEL control: Sets the Level of signal going to the Sub Output. See page Manual-15.
SUBWOOFER MUTE switch: Removes all signal from the Sub Output when pressed to the in position. This eases the
system tune-up procedure, as described on pages Manual-11-16.
SUBWOOFER DELAY control: In Subwoofer applications this control has virtually no effect and will normally be set to
minimum (MIN). Refer to page Manual-10.
SUB/LOW crossover frequency selector: This 41-detent selector sets the crossover frequency between the Subwoofer and
Low Outputs. Refer to page Manual-10 to determine the proper setting for your system.
LOW LEVEL control: Sets the Level going to the Low frequency Output.
LOW MUTE switch: Removes all signal from the Low Output when pressed in.
LOW DELAY control: Adds from 0 to 2 ms of time Delay to the Low Frequency Output only. Refer to page Manual-10
for alignment procedure.
LOW/MID crossover frequency selector: Sets the crossover frequency between the Low and Mid frequency Outputs.
MID LEVEL control: Sets the Level of signal going to the Mid Output only.
MID MUTE switch: Removes all signal from the Mid Output when pressed in.
MID DELAY control: Adds from 0 to 2 ms of time Delay to the Mid frequency Output only.
MID/HI MID crossover frequency selector: Sets the crossover frequency between the Mid and Hi Mid Outputs.
* NOTE: Both the CHANNEL 1 HIGH LEVEL control and CHANNEL 2 MASTER LEVEL control are automatically bypassed
when the AC 23B is switched to "MONO" on the back panel. Adjusting these controls has no effect in the Mono mode.
Hl MID LEVEL control: This controls the Level of signal going to the Hi Mid Output only in 5-Way Mode. **NOTE TO
