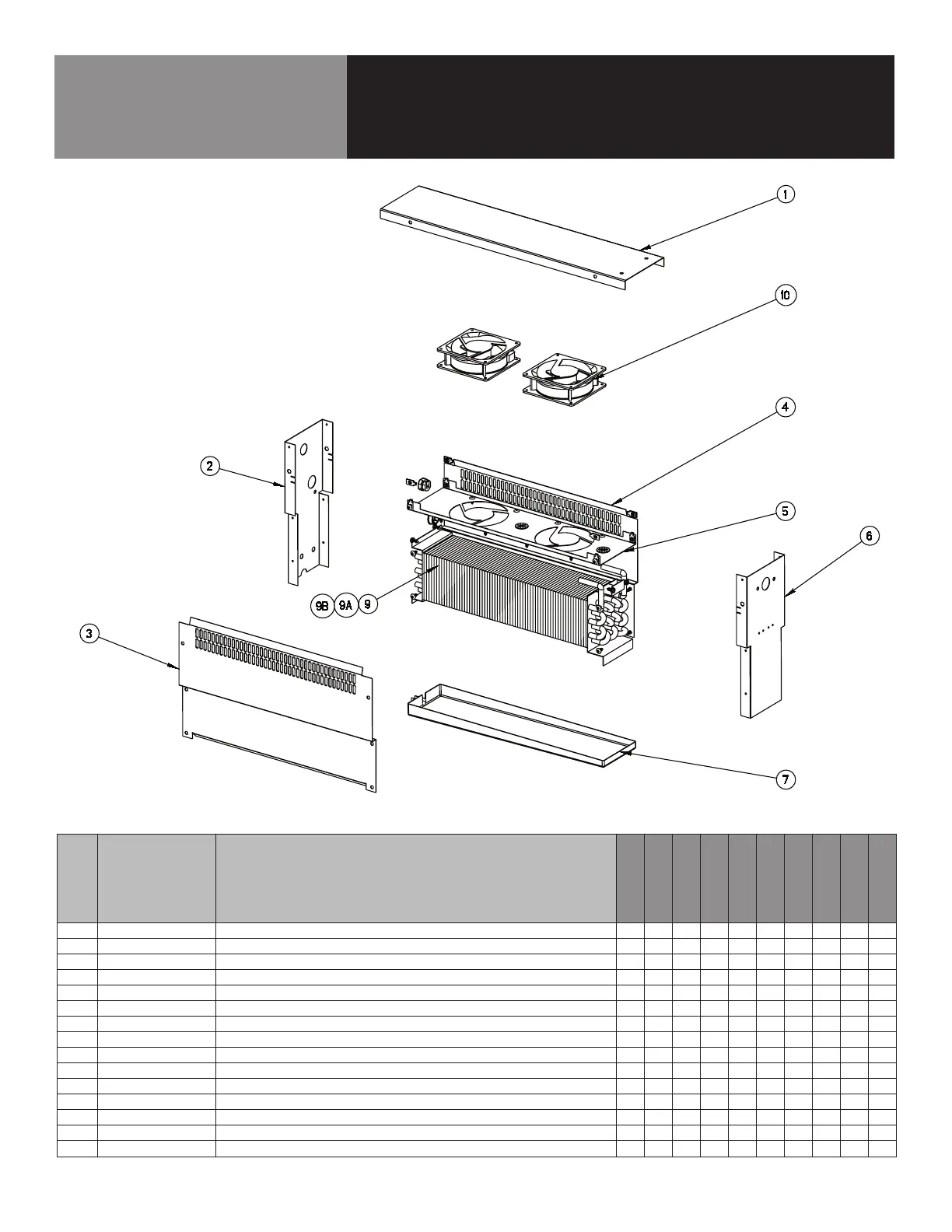

8 OM-20000 SERIES LOW PROFILE EQUIPMENT TABLES
Parts List
EVAPORATOR ASSEMBLY
CALL FACTORY FOR REPLACEMENT PARTS:
888-994-7636
ITEM SERVICE PART DESCRIPTION
(LP)RES1(X)125
(LP)RES1(X)133
(LP)RES1(X)138
(LP)RES1(X)257
(LP)RES1(X)267
(LP)RES1(X)387
(LP)RES1(X)392
(LP)RES1(X)3102
(LP)RES1(X)3114
(LP)RES1(X)3126
1 RP BRK006 MOUNTING SUPPORT BRACKET FOR COIL ASSEMBLY X X X X X X X X X X
2 RP PNL107-290 SIDE, COIL, R290 (TPT_RC200_1-290) W. PERFS X X X X X X X X X X
3 RP PNL108-290 BACK, COIL, R290 (TPT_RC200_3-290) X X X X X X X X X X
4 RP PNL109-290 FRONT, COIL, R290 (TPT_RC200-2-290) X X X X X X X X X X
5 RP SHD1811 SHROUD EVAP FAN R290 X X X X X X X X X X
6 RP PNL1805 SIDE, COIL, R290 NO PERFS X X X X X X X X X X
7 RP DRP107 DRIP PAN X X X X X X X X X X
8* RP CAP1803 CAP TUBE, 0.050 X .093 (T07-0656) X X X X X X X X X X
9 RP COI107 EVAPORATOR COIL X X X X X X X X X X
9A RF CSY1703-290 EVAPORATOR COIL ASSEMBLY, 1- 2 SECTION UNIT X X X X X X X X X X
9B RF CSY1904 EVAPORATOR COIL ASSEMBLY, 3 SECTION - - - - - X X X X X
10 RF FAN1401 FAN, AXIAL X X X X X X X X X X
11 RF CNT1602 QTI SENSOR, AIR - BLACK X X X X X X X X X X
12* RF CNT1603 QTI SENSOR, EVAPOARTOR #1 - BLUE X X X X X X X X X X
13* RF CNT1901 QTI SENSOR, EVAPOARTOR #2 - GREEN - - - - - - X X X X
* = NOT SHOWN
