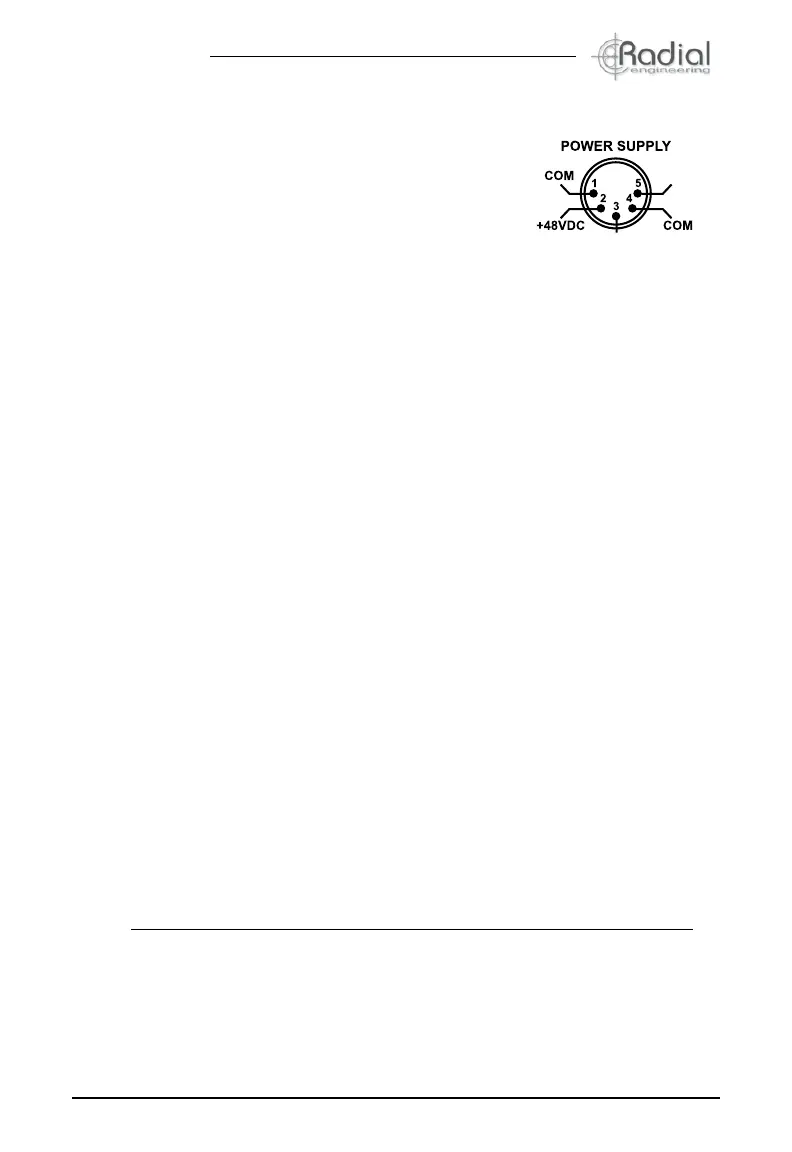

POWER SUPPLY

The Powerhouse employs an external power supply that will

automatically convert the various voltages used around the

world and regulate them before sending the power to the

Powerhouse. A standard male IEC/EIN power input connector

makes it easy to travel as you will only need to change the

cable to suit the local power connector type. The connection

between the power supply is a 5-pin locking XLR.

There is no power switch on the Powerhouse. As soon as you connect the power supply

to the Powerhouse, a front panel LED will illuminate to let you know the power supply is

active. This indicates the +16/-16V rails are ready. A second LED indicator will tell you that

48V phantom is also present. Phantom power is only sent to the modules when the supply

connection to the 15-pin card slot is made. This will normally only be found on preamp

modules that employ 48V phantom. Other modules will not be affected and will simply ignore

the phantom power as if it were not there.

POWER SHARING

The power supply produces 1600 milliamps (mA) of current that is shared between the card-

slots. So for instance, if you have power-hungry tube preamps in slots-1 thru 4 that require

250 milliamps of current each, you still have 600 milliamps of current left to power the other

6 card-slots. Considering most 500 series modules use between 40 and 130 milliamps of

current, it is unlikely you will ever exceed the Powerhouse’s available power.

Example:

Slot-1 Radial PowerTube tube preamp Draw: 235mA

Slot-2 Radial PowerTube tube preamp Draw: 235mA

Slot-3 Radial PowerTube tube preamp Draw: 235mA

Slot-4 Radial PowerTube tube preamp Draw: 235mA

Slot-5 Radial Komit compressor Draw: 130mA

Slot-6 Radial Komit compressor Draw: 130mA

Slot-7 Radial Q3 induction coil EQ Draw: 25mA

Slot-8 Radial Q3 induction coil EQ Draw: 25mA

Slot-9 Open

Slot-10 Open

Total Current Draw: 1250mA (350mA to spare!)

Note: The original API™ spec calls for an average of 130mA for each slot. The Powerhouse

exceeds this with an average 160mA of current divided equally between the ten card-slots.

INPUT

OMNIPORT

FEED

LINK

OUTPUT

INPUT

FEED

LINK

INPUT

FEED

LINK

INPUT

FEED

LINK

INPUT

FEED

INPUT

FEED

INPUT

FEED

INPUT

OUTPUT

OFF

OMNIPORTOMNIPORTOMNIPORTOMNIPORTOMNIPORTOMNIPORTOMNIPORT

Made in Canada

OFFOFF

OFF

OFFOFF

OFF

OFFOFF

OFF

OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

FEED

LINK

INPUT

OUTPUT

OMNIPORTOMNIPORT

OFF

OUTPUT

INPUT

SPLIT VOLTAGE POWER SUPPLY

GROUND

CHASSIS CIRCUIT

+16VDC

-16VDC

48V

16V

POWER

Workhorse

POWERHOUSE

CARD SLOT 10 CARD SLOT 9 CARD SLOT 8 CARD SLOT 7 CARD SLOT 6 CARD SLOT 5 CARD SLOT 4 CARD SLOT 3 CARD SLOT 2 CARD SLOT 1

Workhorse

POWERHOUSE

Radial Engineering Ltd.

www.radialeng.com

RACK

FEED

OFF
