StageDirect™ Active Direct Box

True to the Music

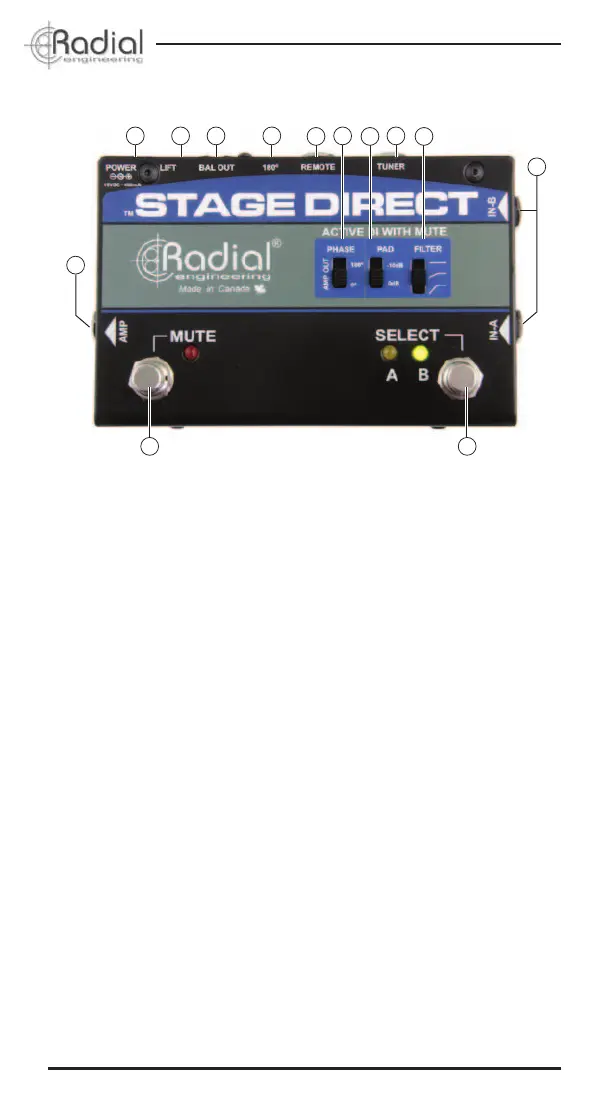

FEATurE SET

1. PoWEr SuPPLY: Use to connect the included power adapter

(15VDC-400mA). StageDirect may also be powered by 48V phantom.

2. LIFT: Disconnects pin-1 on the XLR output to help eliminate hum and

buzz caused by ground loops.

3. BAL ouT: Lo-Z balanced output used to feed the PA system. Follows

standard AES format with pin-1 ground, pin-2 hot (+) and pin-3 cold (-).

4. 180°: Reverses the polarity at the XLR output to help eliminate acoustic

hot-spots on stage that can cause feedback.

5. rEMoTE: Connection for a momentary (non-latching) footswitch that

enables remote control of the mute function.

6. PHASE: Reverses the polarity at the ¼” AMP output to help eliminate

acoustic hot-spots on stage that can cause feedback.

7. PAd: Reduces the input sensitivity by -10dB to prevent overload from

high output devices like keyboards and active pickups.

8. TunEr: Hi-Z ¼” output allows you to connect an electronic tuner. It is

always active and can be used for silent tuning with the mute footswitch.

9. FILTEr: 3 position high-pass lter used to eliminate excessive bass to

help reduce feedback and low frequency resonance.

10. InPuTS: Two hi-Z ¼” inputs used to connect your instruments.

11. SELECT: Channel select switch with LED’s indicating active channel.

12. MuTE: Mutes the stage amp and balanced XLR outputs, leaving the

tuner output active for silent tuning.

13. AMP: Hi-Z ¼” output is used to feed the on-stage guitar or bass amplier.

Transformer isolated to eliminate noise caused by ground loops.

1 2 3 4 86

5 97

12 11
