52
EN
L
N
PE
5
3
(a)
(b)
(d)
(c)
(e) (f) (g) (h)
20
L
N
PE
5
3
(a)
(b)
(e)
(a)
(f) (g) (h) (i)
19
Key:
(a) = Switch or button
(b) = Mains 230 V/50 Hz
(c) = Socket box
Pin assignment:
(d) = PE green / yellow
(e) = N blue
(f) = L grey (continuous phase)
(g) = black (direction of travel 1)
(h) = brown (direction of travel 2)
8.2.1 Controlling the tubular motor via radio

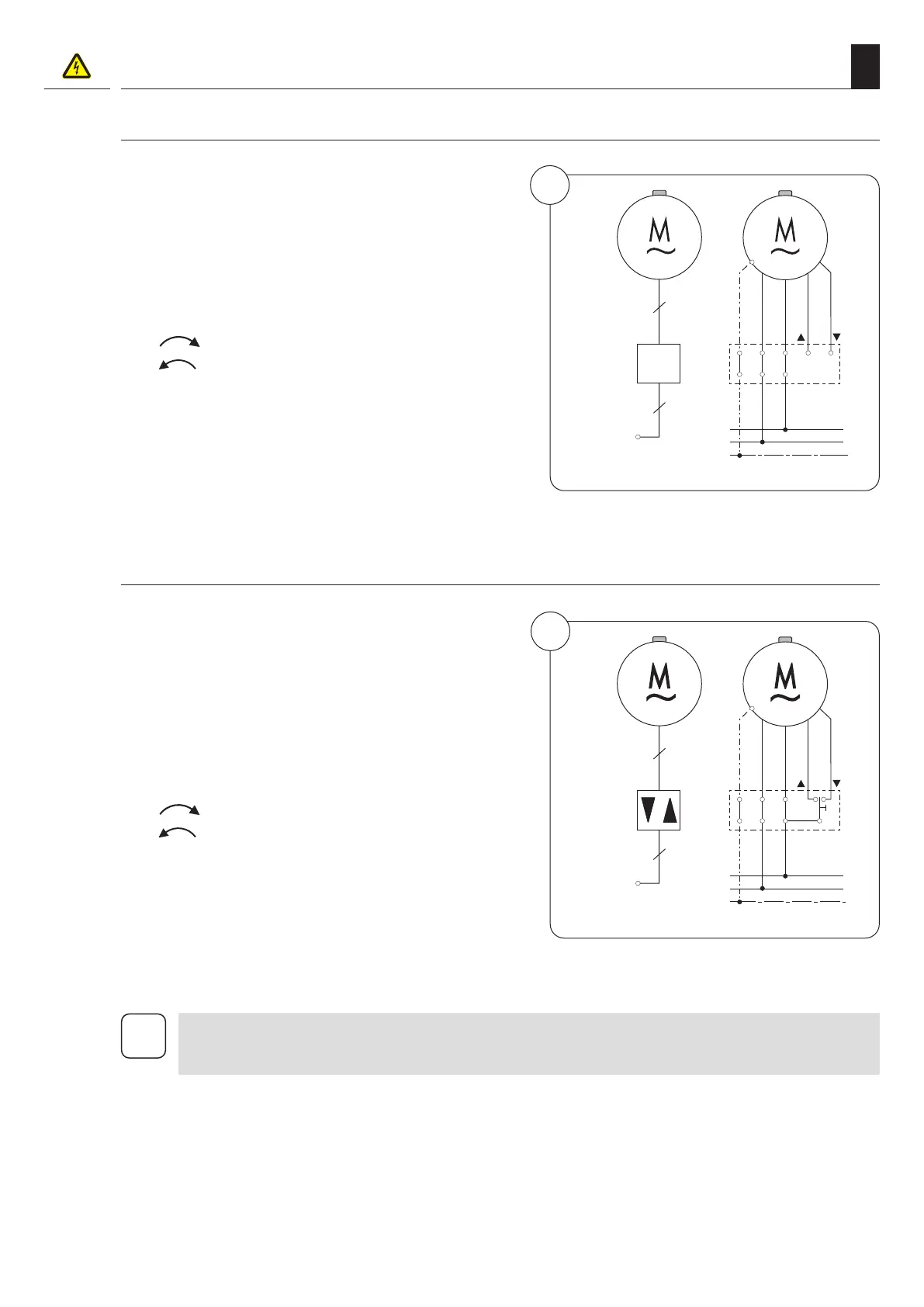

8.2 Electrical connection of the tubular motor
i
When using a switch, we recommend that the mains power to the motor is switched off (switch in zero po-
sition) after reaching the end points. This avoids the motor experiencing sources of interference or excess
voltages.
Key:
(a) = Socket box
(b) = Mains 230 V/50 Hz
Pin assignment:
(e) = PE green/yellow
(f) = N blue
(g) = L grey (continuous phase)
(h) = black (direction of travel 1) *
(i) = brown (direction of travel 2) *
* The black and brown wires (direction of travel 1 and 2)
are not required for radio operation and are therefore
not connected.
8.2.2 Controlling the tubular motor using a switch or button
Example: Circuit layout using a button
