TD-000343-00-C

Unpacking

There are no special unpacking precautions. However, it is recommended that you keep the original packing materials for reuse in the rare event that

service is required. If service is required and the original packing material is not available, ensure that the unit is adequately protected for shipment

(use a strong box of appropriate size, sufﬁ cient packing/padding material to prevent load shifting or impact damage) or call QSC’s Technical Services

Group for replacement packing material and a carton.

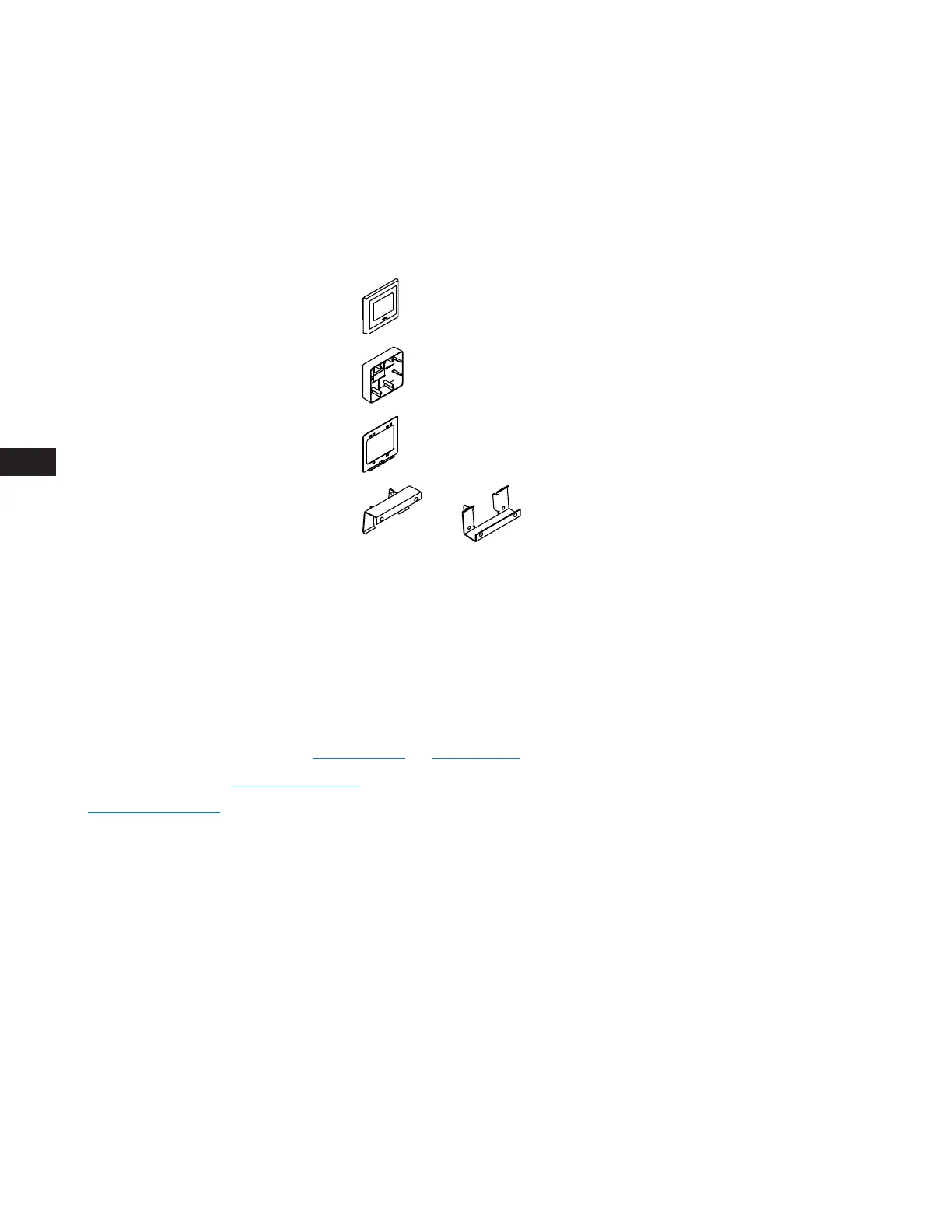

TSC-3 Touchscreen Packing List

Part Name Qty Description

TSC-3-WH or TSC-3-BK Touchscreen 1

Surface-Mount Back Box 1

Mounting Bracket 1

Drywall Clamps 2

Drywall Clamp screws 4 #8 x 1.25"

Security screws 2 #4-40, 0.25"

Mounting Bracket screws 4 #8-18, 0.375"

Tie-wrap 1 4"

Q-Sys Hardware User Manual - TSC-3 1 TD-000343-00

Installation

The Q-Sys TSC-3 can be mounted in one of four ways:

• ﬂ ush mount using a 2-gang electrical box new construction and old-construction

• surface mounted with the Surface Mount Back Box

• stand-alone ﬂ ush mount

Regardless of the option you use, the TSC-3 touchscreen itself is always mounted to the Mounting Bracket, the four options facilitate installing the

Mounting Bracket to the wall or other mounting surface. The following instructions cover all three installation options.

General Requirements

The TSC-3

• must have access to a PoE enabled Q-LAN Ethernet connection (RJ45)

• must be mounted with sufﬁ cient space for adequate ventilation and installation

• must be mounted in a wall no less than 2.38” (60.5 mm) deep

• should be mounted in a location where it will not be an obstruction to normal trafﬁ c
