10
EN
TD-000343-00-C
Mounting the Mounting Bracket to 5/8" Drywall
This procedure uses the two Drywall Clamps, one on the top, one on the bottom, of a rectangular hole cut into 5/8" (15.875 mm) drywall.
Refer to
Figure 8
1. Locate the spot where you want to mount the TSC-3. Ensure there is enough room on all sides and
behind. The wall must be at least 2.38” (60.5 mm) deep to accommodate the TSC-3 and the Q-LAN
Ethernet connection.
CAUTION!:
Before cutting the mounting hole, make sure that there is nothing behind the
surface that can be damaged during the cutting operation. Ensure that there is enough
space surrounding the unit to provide adequate ventilation.
2. Use a level and a square to mark a hole 3.875" (98.43 mm) wide and 3.5" (88.9 mm) high on the
drywall where you want to mount the TSC-3.
3. Use a drywall saw to cut out the opening marked in step 2.
4. Use four Drywall Clamp screws (1) to attach the Mounting Bracket (2) and the Drywall Brackets (3)
together. Leave the screws loose enough to position the Drywall Brackets inside the opening.
5. Orient the Mounting Bracket so that the fl ange (4) is on the bottom. Position one Drywall Bracket (1)
on the top of the drywall opening, and the other on the bottom as shown in Figure 8.
6. Tighten the four screws (1) to secure the Mounting Bracket and the Drywall Brackets to the wall.
Make sure that the Drywall Brackets are compressed tight up against the inside of the drywall, and the
assembly does not move.
7. Use the fl ange (Figure 9 (1)), available on the back of each Drywall Bracket, and the 4" Tie-wrap, to secure the Q-LAN Ethernet cable to
the bracket. Make sure there is enough cable to make the connection to the TSC-3.
8. Follow the steps in Mounting the TSC-3 to the Mounting Bracket page 7.

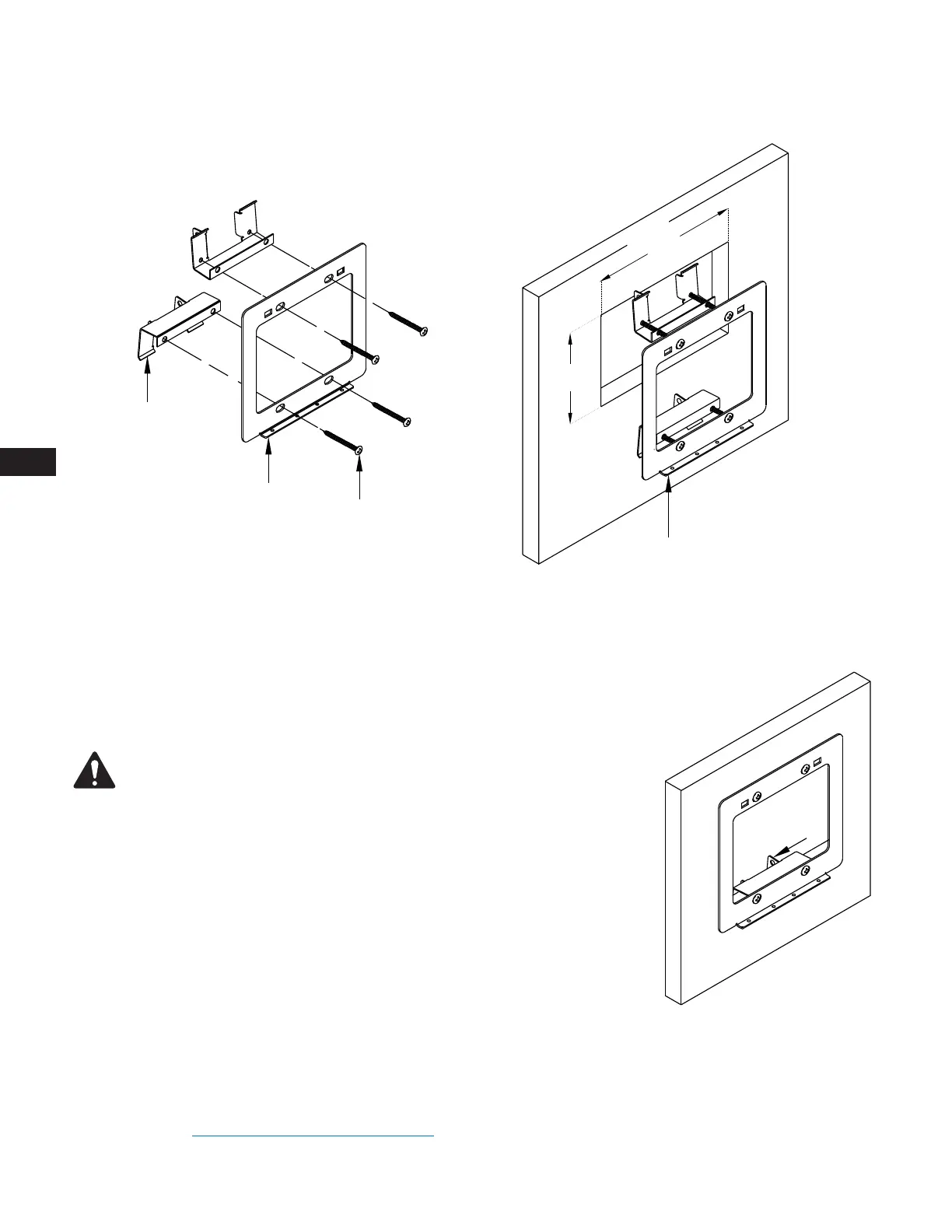

— Figure 8 —
1
2
3
4
3.5"
(88.9 mm)
3.875"
(98.43 mm)
— Figure 9 —
1
