Accessories
Yoke Mount
The Yoke mounts are available as optional accessories for models PL-CA5, PL-CA6, PL-CA8, PL-CA12, and PL-CA15 and are
optimized for horizontal deployment. Vertical deployment is also possible but won’t allow an upwards or downwards tilt.

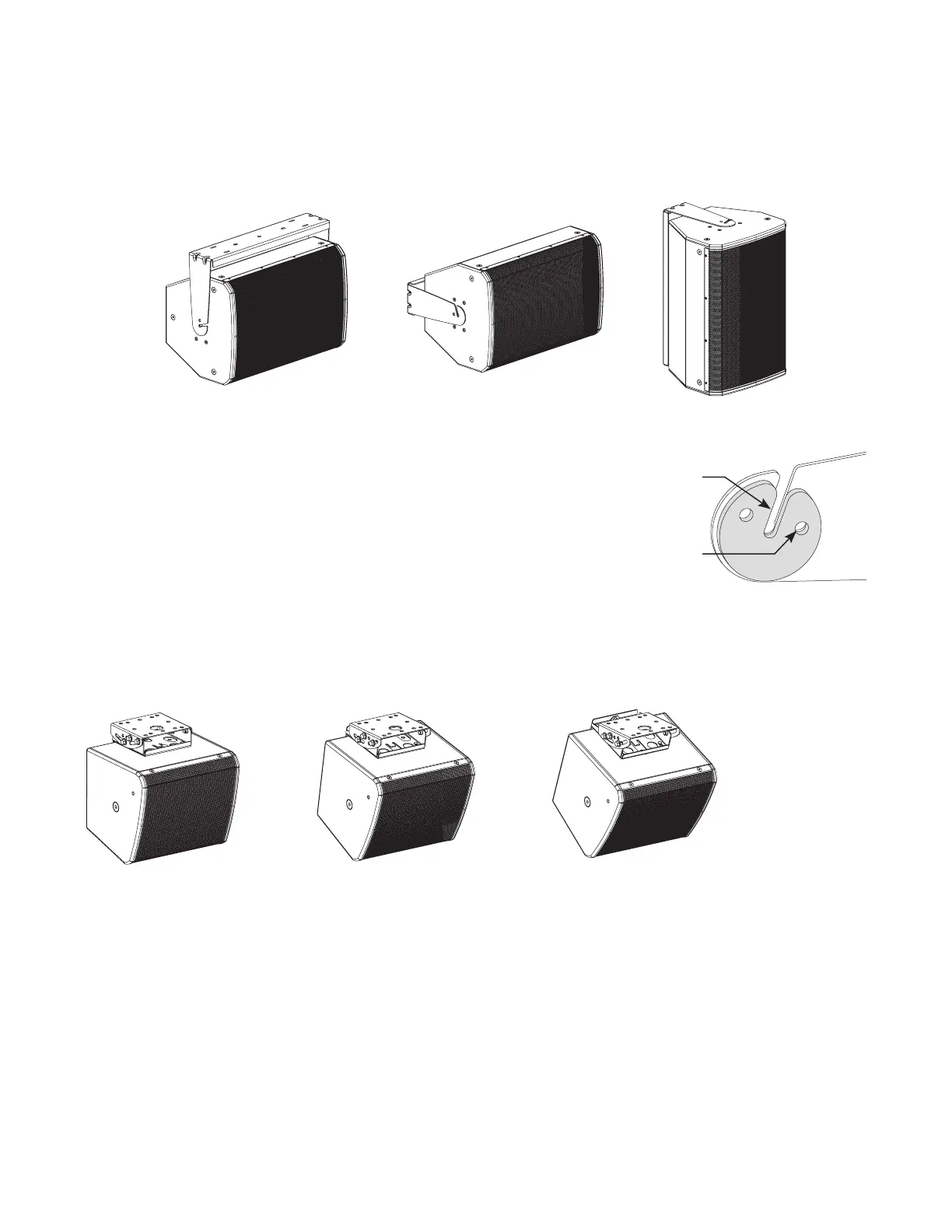

—Figure6—
1. Insert an M8 screw in the yoke hole on the loudspeaker.
2. Install Yoke in the position.
3. Hang the loudspeaker on the bracket by lowering the M8 screws into
the bracket slots.
4. Connect the wiring.
5. Angle the loudspeaker.
6. Tighten the M8 screws.
Flush Mount (Surface Mount)
PL-DC24-FM
-15°
-25° -35°
The Flush Mount accessory is designed to allow the loudspeaker to be mounted as close as it can from a ceiling (or wall) and can be
mounted on the top, bottom, or back side of the loudspeaker. The asymmetric shape of the loudspeaker allows an offset of 5 degrees
whether the accessory is mounted on the top or bottom.
The accessory is designed to precisely lock into 3 different angles (offering 6 angles when the loudspeaker can be reversed) but can
also be angled in any position.
When mounted on the back side it can be used as a wall mounting or 90 degree downward firing ceiling mount.
It can be also used on a stage but the accessory will need to be fastened to the stage as it does not offer enough stability on its own.
Use this slot for quick
setup and take down. For
use in indoor installation.
Use this hole for placing
speaker closer to the
mounting surface. For use
in outdoor installations.
—Figure7—
