5
6
1. Mono analog input – accepts microphone or line level signals (with phantom power)
2. Stereo analog inputs – accepts line level signals
3. Analog audio inputs – connect to D-Cinema server or fi lm processor with analog outputs
• Top connector: channels 1 through 8
• Bottom connector: 6 auxiliary channels
4. Digital audio inputs – connect to D-Cinema server or fi lm processor with digital outputs
• Top connector: AES3 pairs 1 through 4 (digital audio channels 1 through 8)
• Bottom connector: AES3 pairs 5 through 8 (digital audio channels 9 through 16)
5. S/PDIF input – multi-channel digital input for non-sync/alternative content
6. USB Type B port for DCP confi guration and management via direct connection
7. 10/100 Mbps Ethernet port – for QSControl™, 3rd party, or SNMP management and remote access
8. 100 Mbps Ethernet ports – CobraNet™ audio network - Primary and Secondary (backup)
9. SD memory card – device confi guration storage supports quick unit replacement
10. Serial communications port – 3
rd
party control/automation via RS232
11. IEC inlet – AC mains power connector with cord lock
12. DataPort interface for QSC amplifi ers – supports up to fourteen single port amplifi ers
13. Hearing impaired and visually impaired special mix outputs
14. CMOS compatible logic outputs – for use as automation triggers, alerts, system status
15. Automation inputs – digitally sampled analog control inputs (control presets, levels etc.)
16. Relay outputs – mechanically decoupled control outputs (curtain, lighting control etc.)
17. Audio monitor output – tap from front panel monitor speaker (post DSP, pre amplifi er)

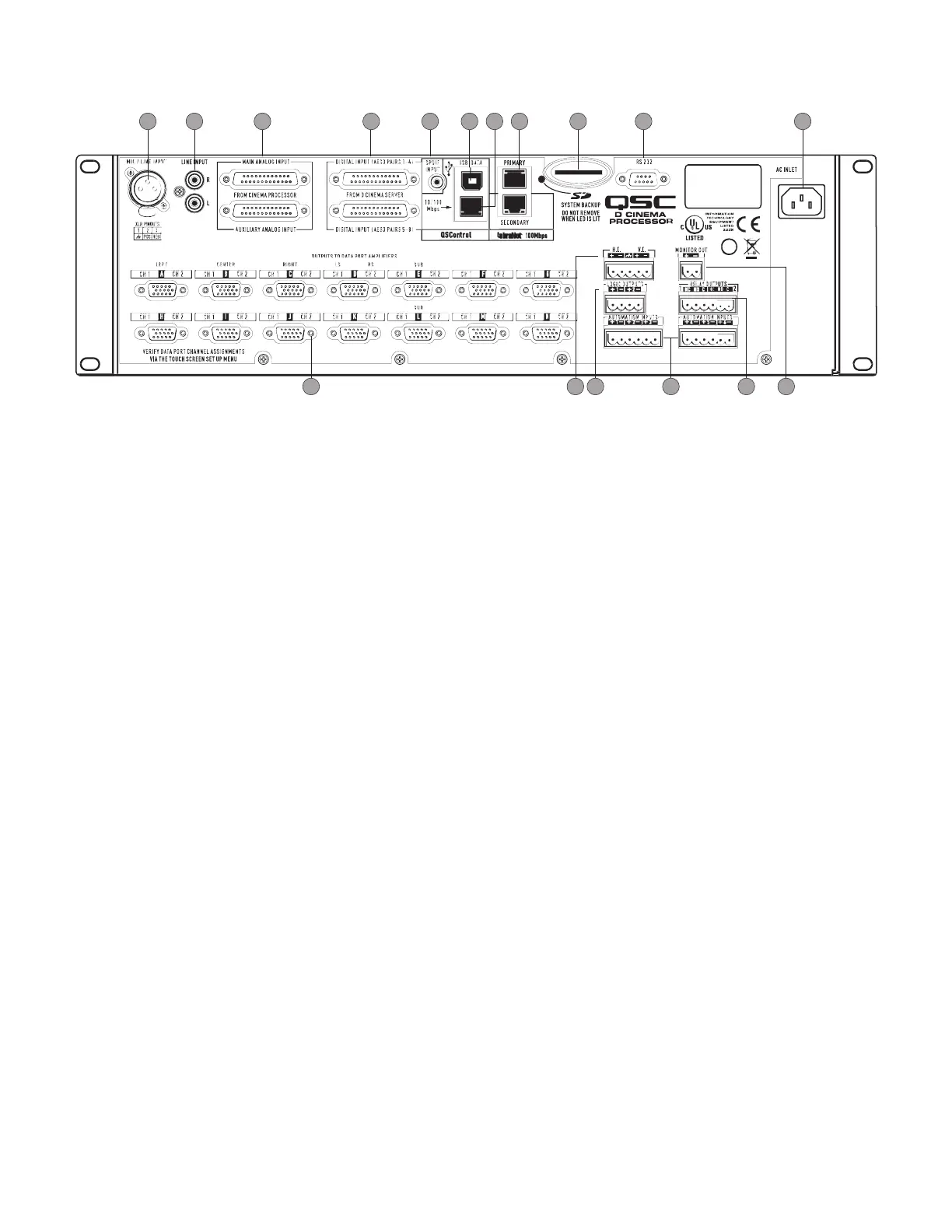

DCP 300 Rear Panel Features
1 2 9 10 115 6 7 8
17161513 1412
3 4
