22
The RS-232 port is used only for setup and system troubleshooting. Connect the 9-pin serial data cable from
the host PC to this connector on the DCM. Orient the male DB9 connector to match up with the RS-232 port,
push the connector into the receptacle to seat it, and finger-tighten the retaining screws. Do not use null-
modem serial data cables; they will not work with the DCM. Use a normal 9-pin serial data cable.
The other end of the 9-pin serial data cable must be connected to an available RS-232 port on the host PC.
The PC must have QSC’s DCM Manager software installed on its hard drive. Start the DCM Manger pro-
gram and verify RS-232 communication between the PC and DCM. Refer to the DCM Manager software
help system for details.

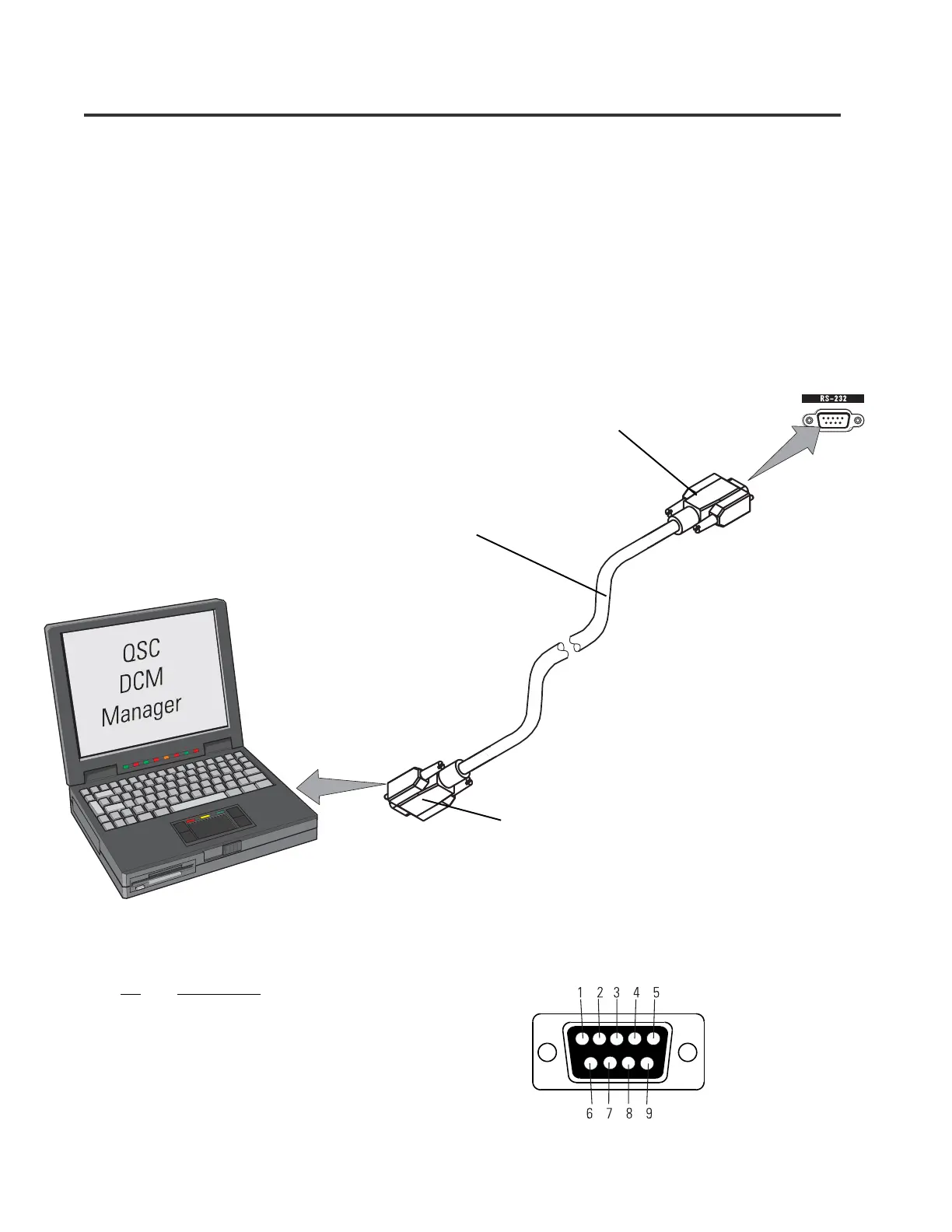

RS-232 CONNECTION
Male end to DCM RS-232 Port
INSTALLATION Connections: RS-232
9-pin Serial Data Cable-
use normal data cable.
Do not use null-modem
type cable.
Female end to host PC RS-232 Port
RS-232 Pinout-
Configuration: 9-pin SubD male to 9-pin SubD female normal serial data cable.
Pin# Signal Description
1 Loopback
2 Transmit
3 Receive
4 Loopback
5 Digital Ground
6 Loopback
7 Clear to Send
8 Request to Send
9 (not used)
