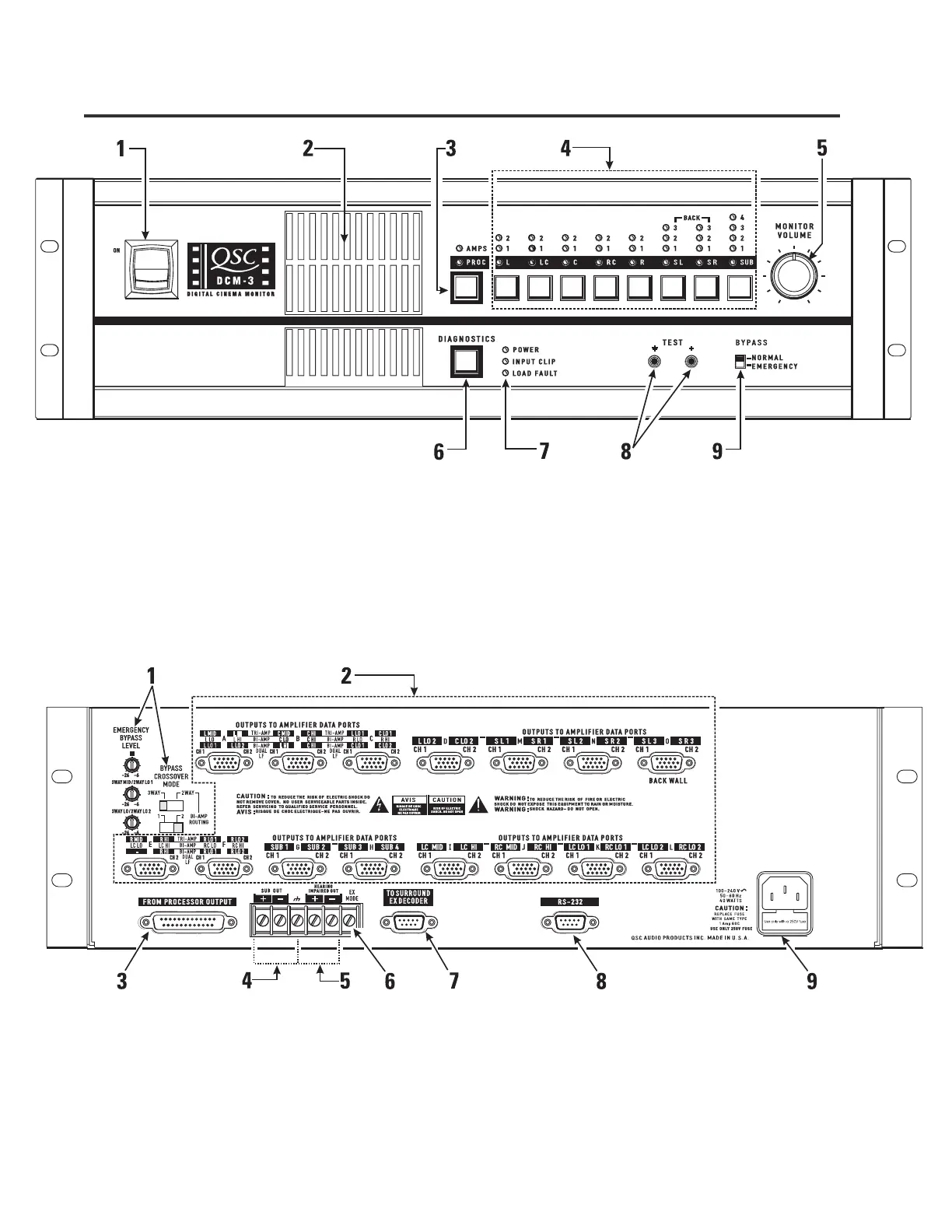

ILLUSTRATIONS DCM-3
1. Power switch
2. Monitor output speaker
3. Amplifier/Processor selector switch
4. Monitor source selector switches
5. Monitor volume control
6. Diagnostics check switch
7. Power and diagnostics fault indicator LEDs
8. Monitor output test points
9. Bypass switch
DCM-3 FRONT PANEL
1. Emergency bypass level controls & bypass switches
2. DataPort outputs to amplifiers
3. Audio input connector (from Cinema Processor)
4. Subwoofer output
5. Assistive listening system output
6. Surround EX mode remote on/off input
7. Output to Dolby Surround EX decoder
8. RS-232 port
9. IEC power cord entry and fuseholder
DCM-3 REAR PANEL
