User Manual
PT-MA-HD44M
6

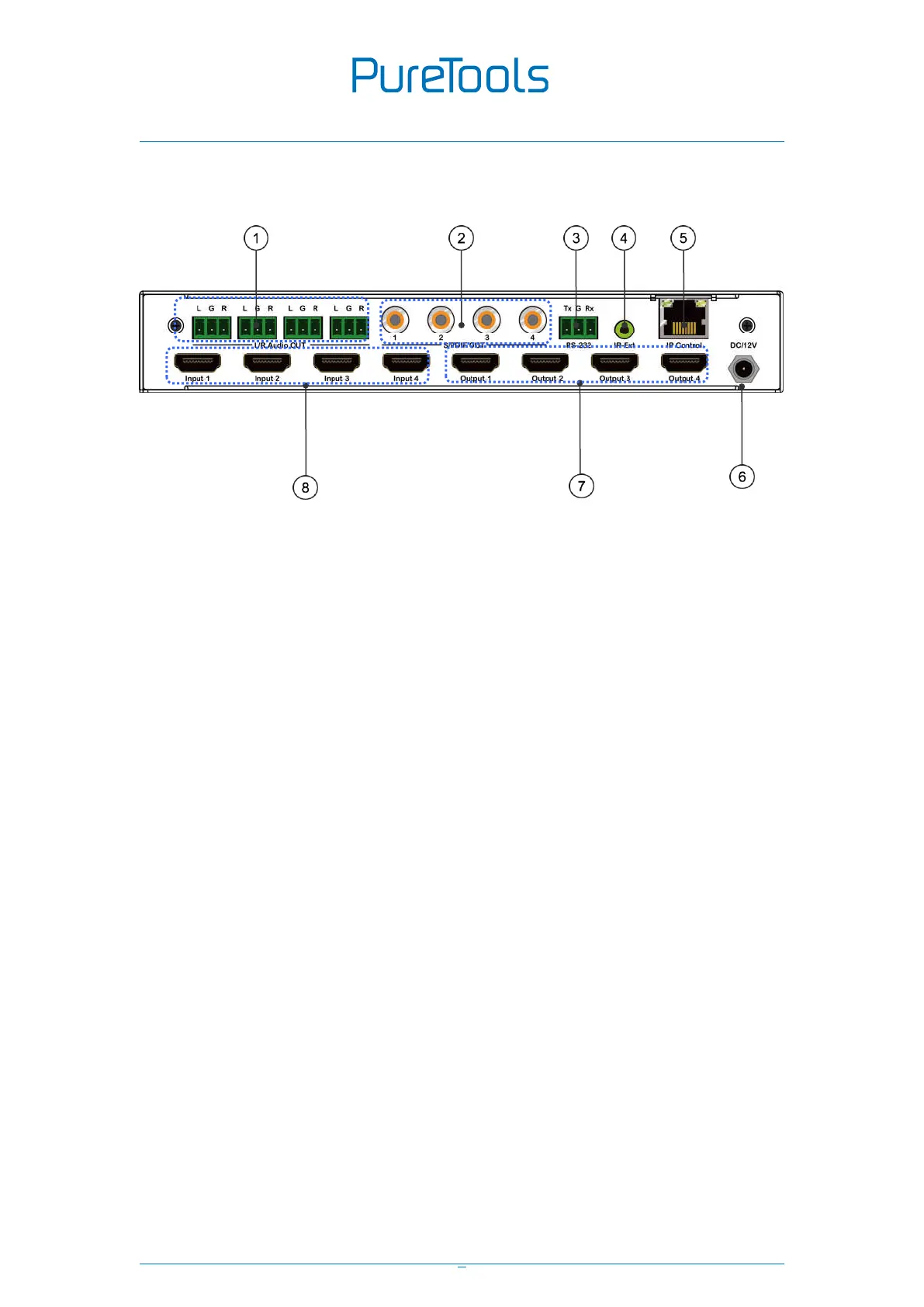

Rare panel
①
Analog audio out
②
S/PDIF audio out
③
RS232 for control
④
IR-Ext
⑤
Ethernet port
⑥
DC12V/2A input
⑦
HDMI output port
⑧
HDMI input port
Connecting and Operating
1. Connect source devices to input ports of the matrix
2. Connect HDMI output ports to TV or other HDMI sink devices.
3. Optional: Connect RS232 cable from PC RS232 port.
4. Optional: Connect an Ethernet cable from the TCP/IP port on the matrix to a local area
network.
5. Connect 12V POWER supply to DC power socket.
6. Power on the matrix, HDMI sources and displays.
