Note

Please refer to the Quick Installation Guide included with the mounting rails for

more detailed rack installation instructions.

Mounting enclosure in a rack

To install the Vess A7000 into a rack with the supplied mounting rails:

1. Checkthetofthemountingrailsinyourracksystem.

2. Adjust the length of the mounting rails as needed.

• The rear rail slides inside the front rail. The rail halves are riveted together and use no adjustment screws.

• The front-left and front-right mounting rail ends are labeled.

• Be sure the front rail support is on the bottom facing inward

• All rail ends, front and rear, attach at the outside of the rack posts.

• The guide pins at the rail ends align with the holes in the rack posts.

• Usetheattachingscrewsandangenutsfromyourracksystem.Tightenthescrewsandnutsaccordingto

instructions for your rack system.

Support ange on the front

end of each rail

Front right label

Front left label

Guide pins on rails align with holes in the rack post

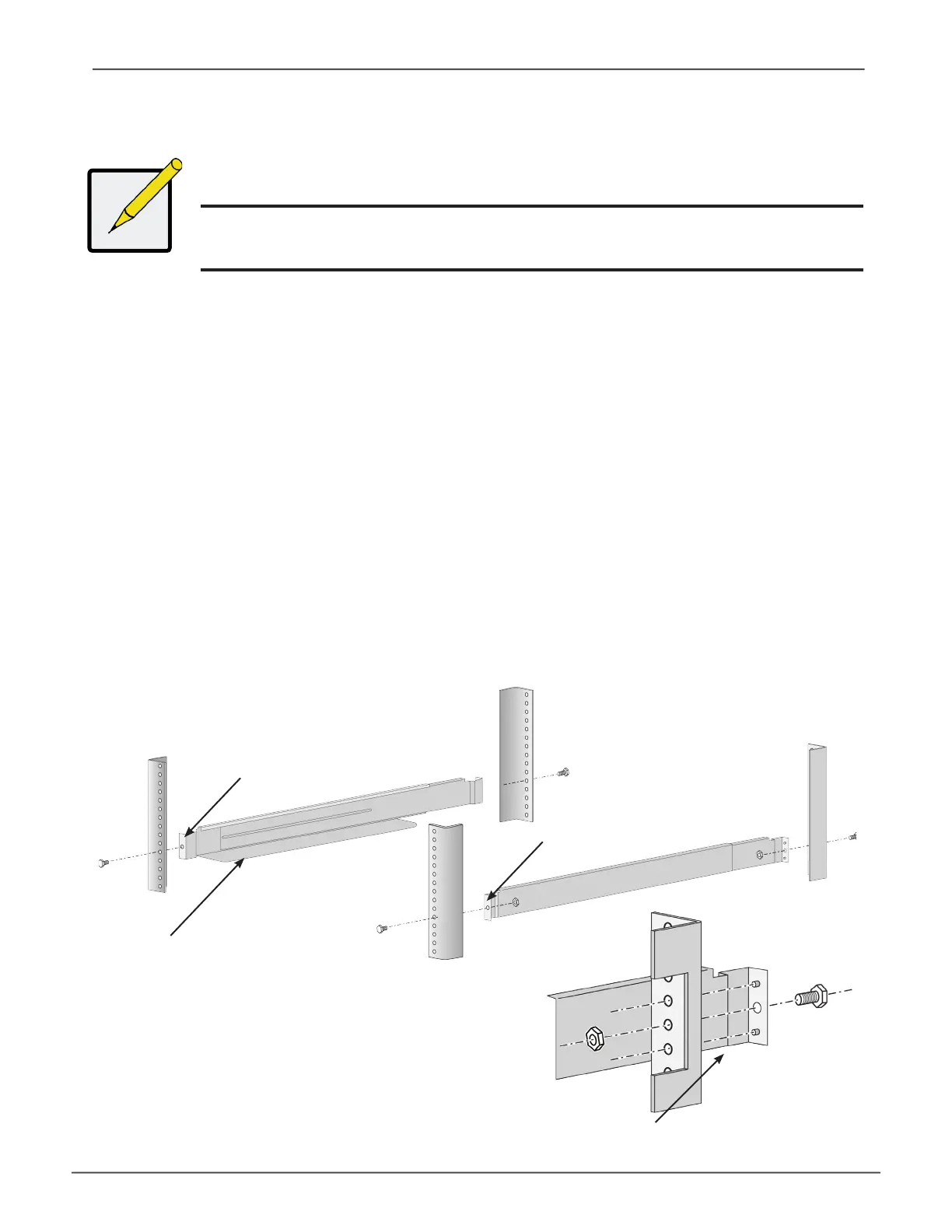

Installing the rails onto the rack
