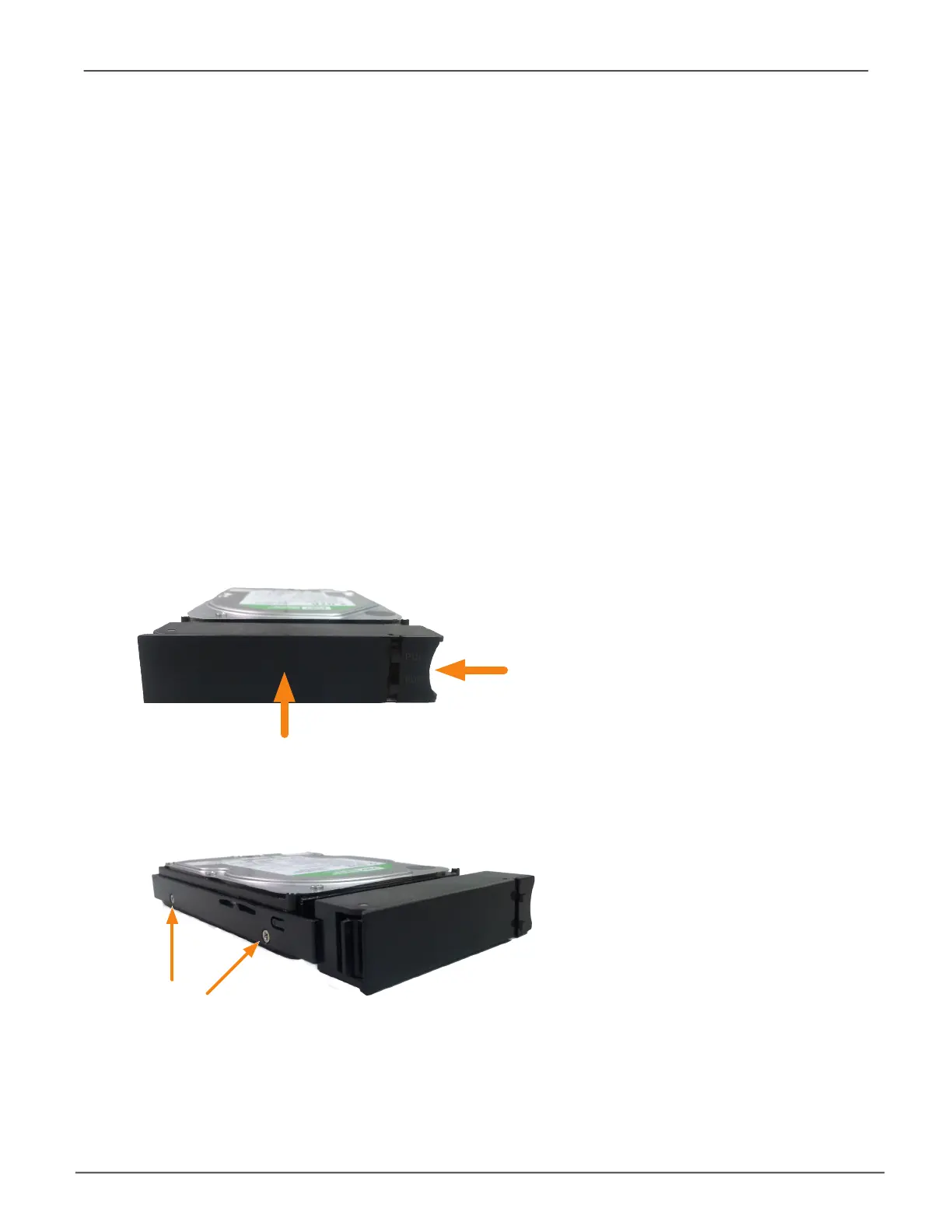

Counter sink screws; two screws on each side.

Push in the center to insert the drive carrier into an empty drive bay.

Pull handle to release the latch, then pull

straight out gripping the handle.

Place your free hand underneath when remov-

ing or inserting the carrier containing a hard

disk drive, so you do not drop it.

Drive carriers

The instructions below apply to all types of drive carriers intended for use with the Vess A-Series.

1. Remove a disk drive carrier.

2. Carefully lay the disk drive into the drive carrier at the front, so that the screw holes on the sides line up.

3. Insert the screws through the holes in the drive carrier and into the sides of the disk drive.

See illustration below.

Install only the counter-sink screws supplied with the drive.

•

Installfourscrewsperdrive.

• Snugeachscrew.Becarefulnottoover-tighten.

4. Reinstall the drive carrier into the enclosure.

5. Repeat steps 1 through 3 until all of your disk drives are installed.

20
