Determine which holes to use on rack

Press lever to release lock (front right)

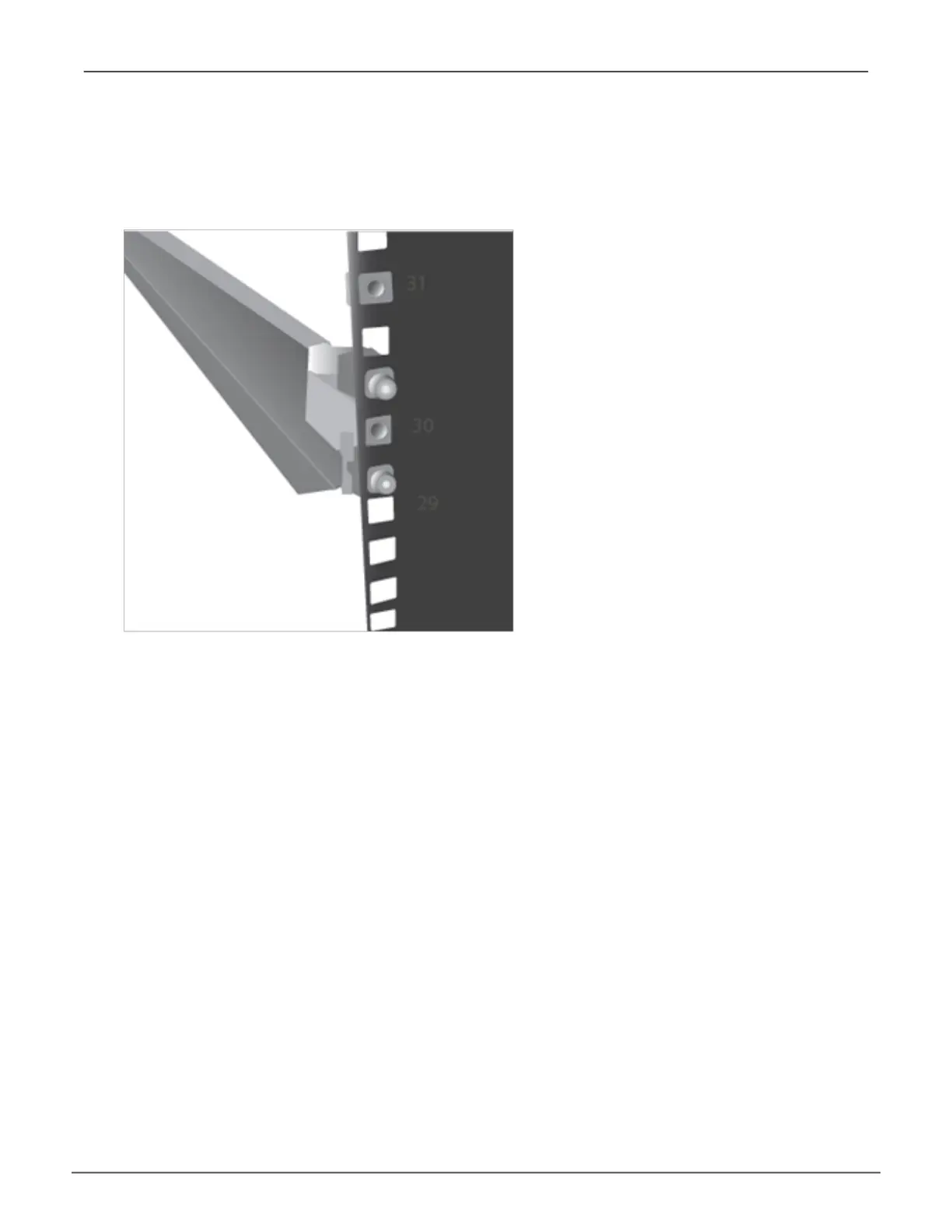

a. Pressthespringlocktheninsertthestudsintotheselectedsquareholesontherackpost.

b. Pressthespringlockontheotherendoftherailandinsertthestudsintotheselected

mountingholeontherackpost.Ifnecessary,extendtherailtoreachthepost.

c. Usetherailscrewsandwasherstoanchortherackrailtothepost.

d. Makesuretherackrailisaligned,secure,stableandinthecorrectplace.

e. Performstepsathroughcabovefortheotherrail.

f. Makesuretherackrailsarealigned,secure,stableandinplace.

Seegureonnextpage.

4. Use the attaching screws that came with the mounting hardware to secure the enclosure to the rack.

15

Hardware SetupVess A3340s / Vess A3340d / Vess A3340 PoE
