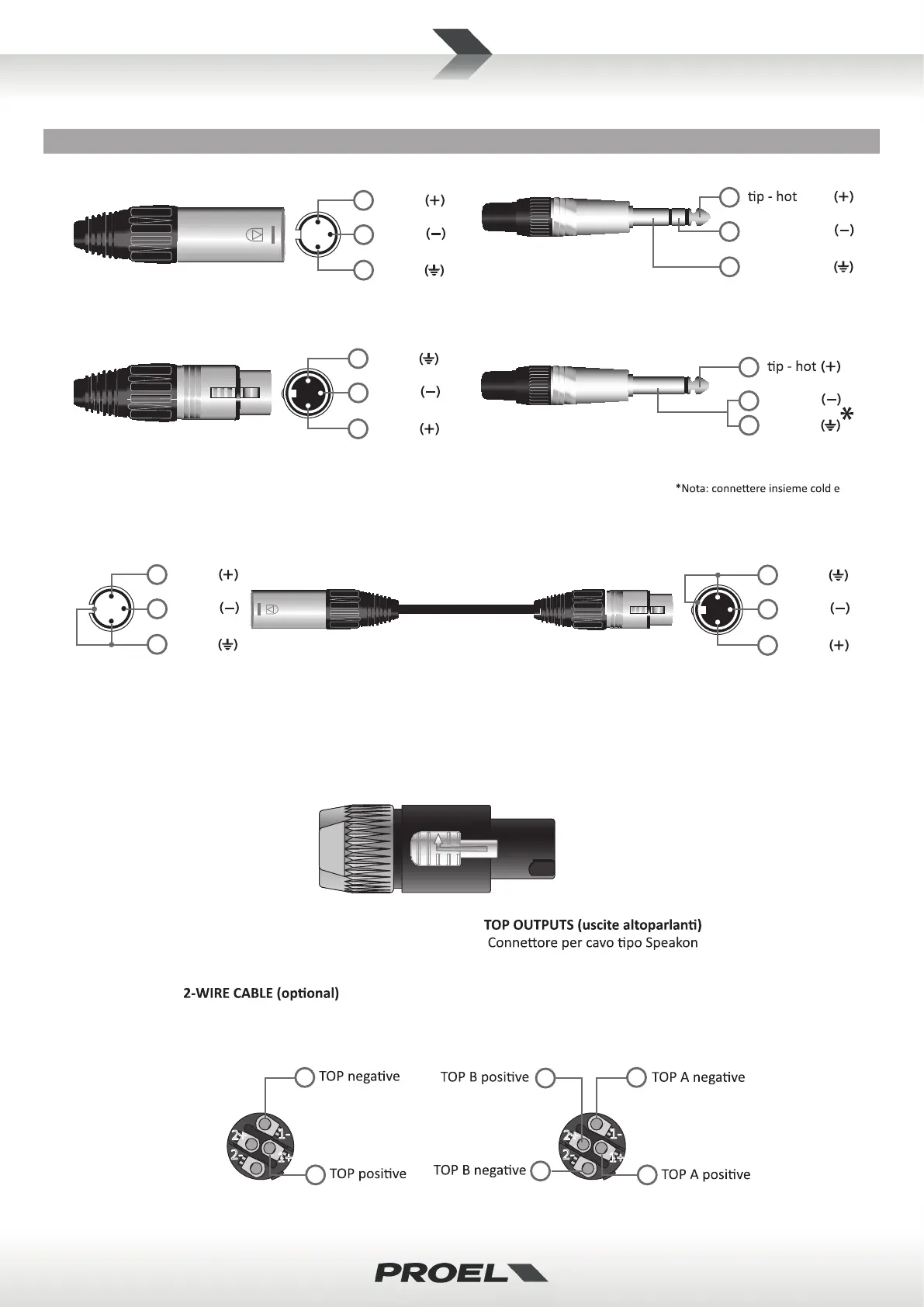

CONNECTIONS (FIG.1) CONNESSIONI (FIG.1)
INGRESSO MIC/LINE
Jack (bilanciato)
MIC/LINE IN
Jack (balanced)
sleeve - ground
ring - cold
LINE
XLR bilanciato maschio
LINE IN
Balanced male XLR
ground
hot
cold
INGRESSO MIC/LINE
Jack (sbilanciato)
MIC/LINE IN
Jack (unbalanced)
ground
cold
ground per cavi da bilanciato
a sbilanciato.
*Note: connect both cold and ground
to make cable from balanced to
unbalanced.
TOP OUTPUTS (speaker outputs)
Speakon Cable Connector
2-
1+
2+
1-
n.c.
1+
1-
n.c.
STEREO & DUAL modes
LEFT TOP & RIGHT TOP outputs
4-WIRE CABLE (supplied)
MONO & DOUBLE modes
LEFT TOP output only
2-
1+
2+
1-
1+
1-
2-
2+
LINK (uscita)
XLR bilanciato femmina
LINK (output)
Balanced female XLR
*note: for the best mike cabling we suggest to connect the GND shield wire to pin 1 and to the connector shell at each side
of the cable.
*nota: per un miglior cablaggio microfono, si consiglia di collegare lo schermo GND sia al pin 1 che all’involucro del
conne�ore su ogni lato.
ground
hot
cold
1
1
3
3
2
1
3
2
1
3
2
2
CAVO MICROFONO
Bilanciato
MIC CABLE
Balanced
ground
hot
cold
1
3
2
*
ground
hot
cold
1
3
2
*
