8
• Mount the speaker plate to the loudspeaker back panel.

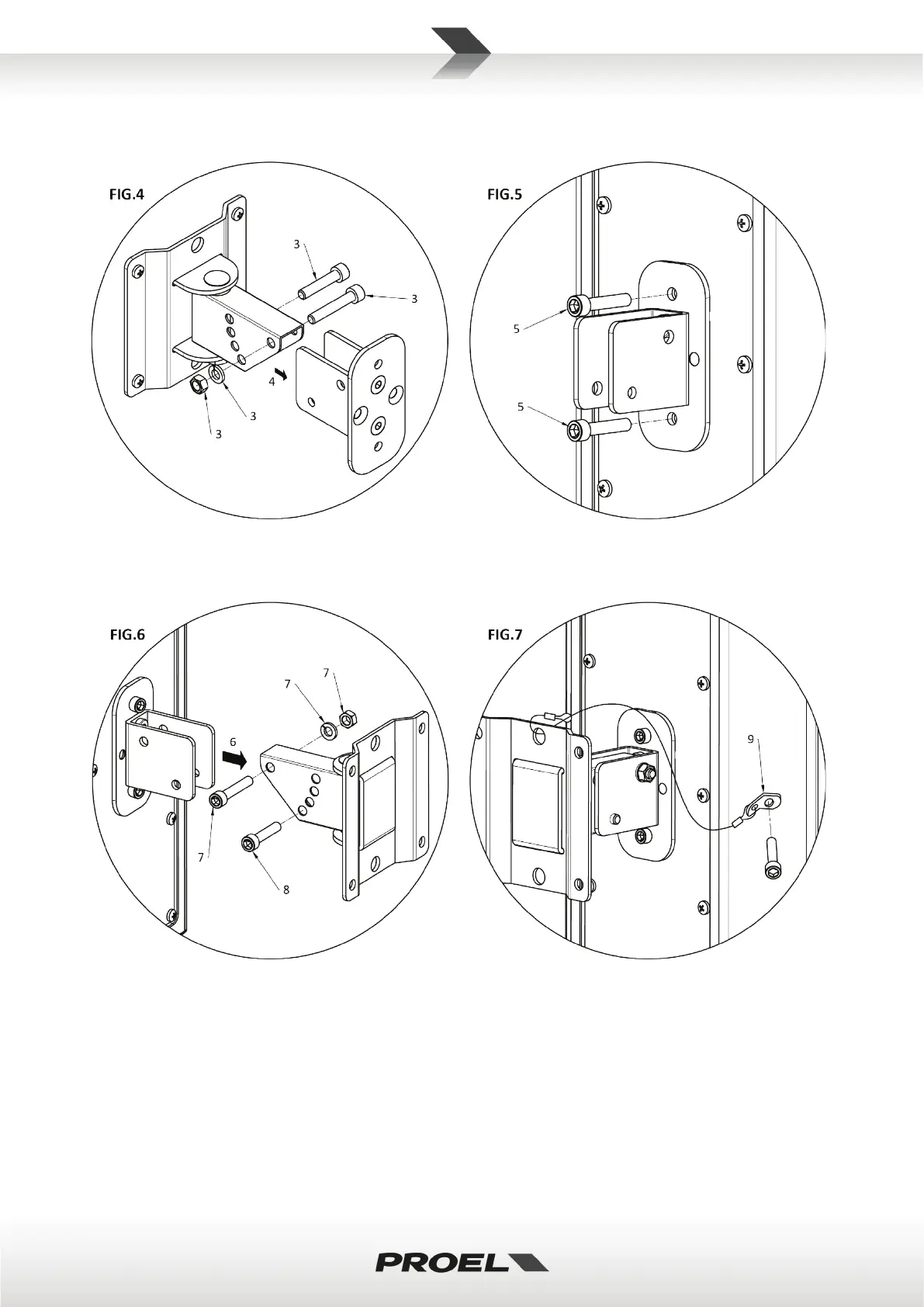

• Reassemble speaker plate and wall plate as shown in FIG.6.
• Connect the safety rope to the speaker using the screw on the side of the cabinet as show in FIG.7.
• FIG.8 and FIG.9 show the possible vertical tilting combinations: FIG.8 is for the speaker mounted
vertically or FIG.9 for speaker mounted horizontally.
• FIG.10 and FIG11 show the possible horizontal swivel combinations: FIG.10 is for the speaker
mounted vertically or FIG.11 for speaker mounted horizontally.
