INTRODUCTION
Thank you for choosing a PROEL product. Please take some time to read this manual to understand all the
features of your system and take advantage of all its performance capabilities. All PROEL products are CE
approved and designed for continuous use in professional applications.
DESCRIPTION
The LTX6P by PROEL is a passive speaker system with plywood cabinet offering the renowned PROEL sound
and a high-level performance in a reliable and affordable package. For the construction of the cabinet we
have used plywood, a very lightweight and durable material that makes moving and installing this speaker
very quick and easy. Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper
protection for years of service. The supplied KPTLTP bracket allows to install the speaker on walls and ceiling
with variable tilt and swivel speaker orientation, offering the possibility to obtain a more uniform coverage of
the audience.
OPERATIONS

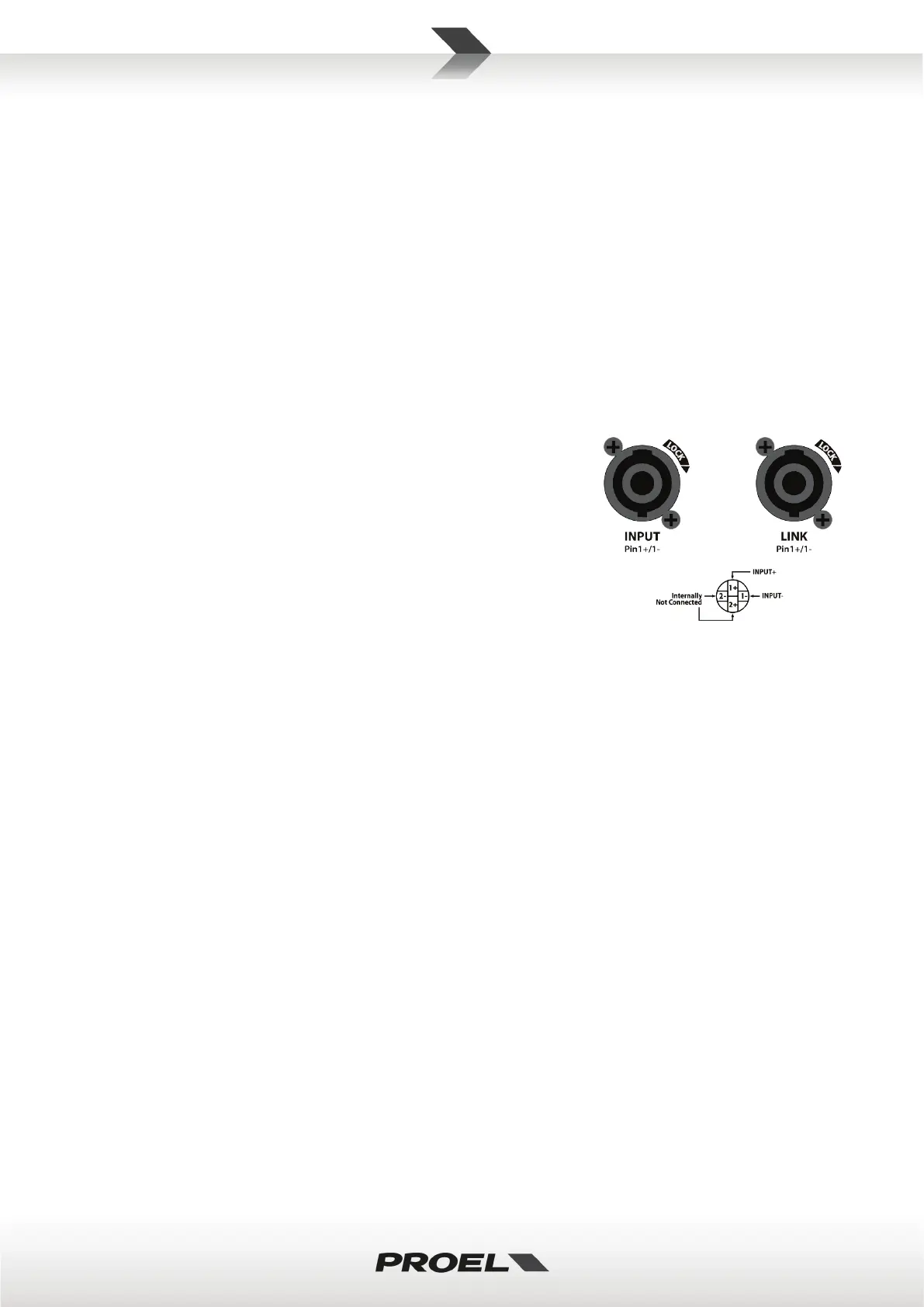

1. INPUT (SPEAKON)
External amplifier power input: this is the connector where you plug in
the power cable coming from your power amplifier or powered mixer.
The powered signal is filtered by an internal passive crossover that splits
the power signal into a low frequency section, sent to the woofer, and a
high frequency section, sent to the HF compression driver. The frequency
transition is around 3.8KHz. The INPUT has this pin connection:
PIN1+ : positive power signal (usually red wire)
PIN1- : negative power signal (usually black wire)
2. LINK (SPEAKON)
Output of the power signal to be sent to another satellite loudspeaker. INPUT and LINK connectors are
connected in parallel.
CHOOSE THE AMPLIFIER POWER
We give you two power numbers: continuous and peak.
These data suggest you can use any amplifier with a power capability in the range between continuous and
peak, but this rule is valid only if the amplifier never clip any time.
Preventing loudspeaker damage caused by clipping, that is likely the number one cause of damage, and
assuming you want to use the full capability of the loudspeaker, we recommend the use of an amplifier with
a built-in limiter to prevent clipping, in this case the rated power capability must be in the range between
continuous and peak power rating of the loudspeaker into the same nominal impedance (typically 4 or 8
ohms):
• To obtain the best result using 2 (as single 8 ohm speaker for each channel) to 4 (as parallel 4 ohm speaker
for each channel) LTX6P connected in stereo, we suggest the use of a 80-160W amplifier.
IMPORTANT: Clipping occurs when the signal at the output of any device in the system (not just the amplifier)
reaches its maximum level. Proper operation of a sound system includes being aware of the types of audio
signals being reproduced, controlling the output levels accordingly, and operating all the devices in the
system so that no clipping occurs within the signal chain.
