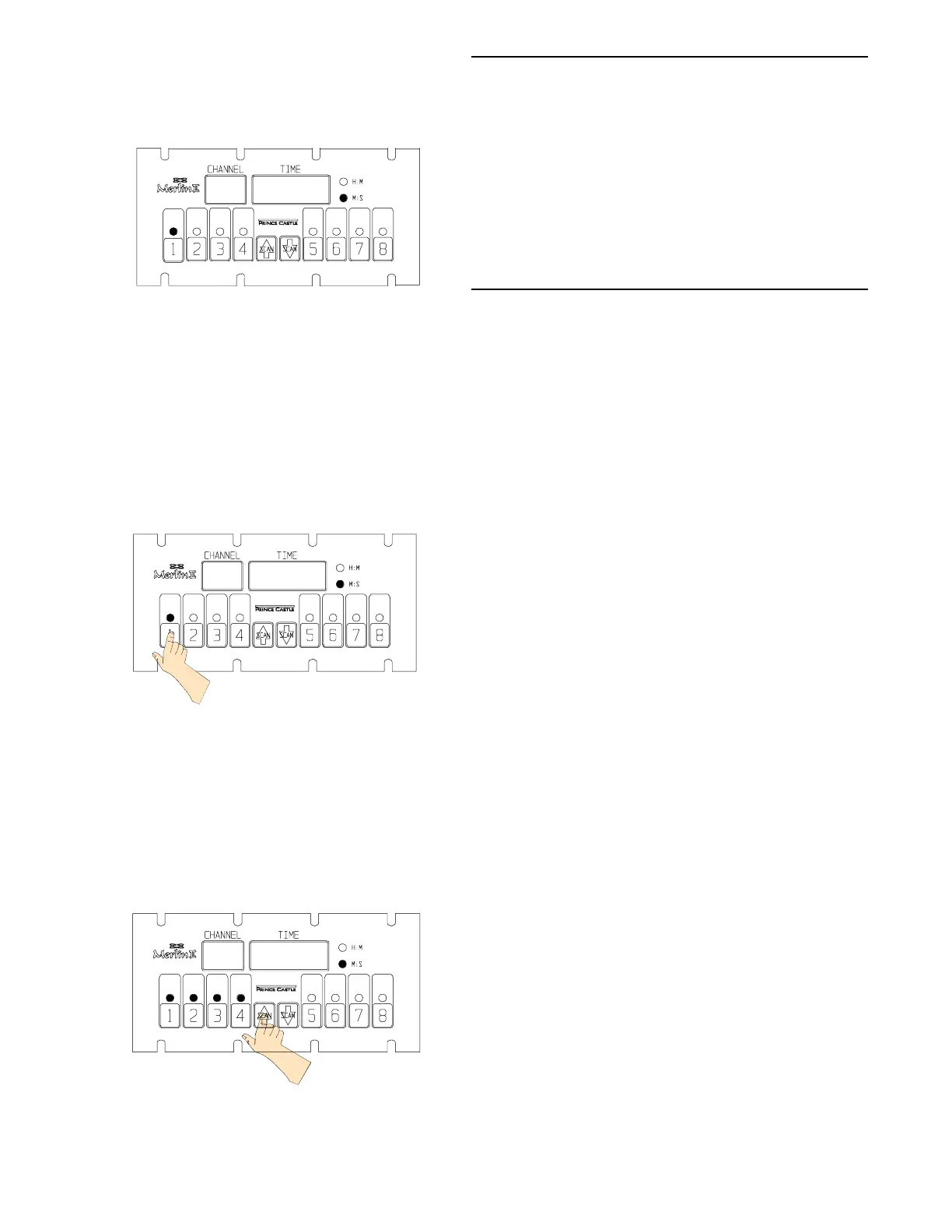

3. The timer will countdown from the programmed
value to zero. At zero, the display flashes End and
the alarm sounds. See figure 9.
IMPORTANT:There are three indicators that signal the
operator when the timing cycle is complete: The
CHANNEL display shows the channel associated with
the alarm. The TIME display shows End. The LED
indictor in the channel button flashes red.
4. When the timing cycle is complete, and the alarm
sounds, press the channel button with the flashing
red indicator to cancel the alarm. See figure 10.
5. The scan feature is used to check the time values on
other active channels. There are two different ways
to scan active channels. Press the SCAN/UP or
SCAN/DOWN button.Or press any of the active
timer CHANNEL buttons. If no other button is
pressed within 5 seconds, the display will change to
show the timer with the least amount of time left.
See figure 11.
CLEANING
1. Do not allow grease to build up on the timer, wipe it
down daily with clean damp cloth.
IMPORTANT: Do not use abrasive or chemical cleaners
on your timer, this may cause damage to the overlay.
PART LIST
ITEM PART NUMBER
DESCRIPTION
1 69-079S Rivet Plastic Push Pin
2 69-080 Self Retaining Nut
3 73-014 Hex Nut #4-40 S.S.
4 73-021 Hex Nut #8-32 S.S.
5 88-653-2-4S Speaker Assy.
88-653-2-11S Speaker Assy. (740-T4)
6 735-240S Switch Panel Assy.
(740-T2)
735-211S Switch Panel Assy.
(740-T4)
735-205S Switch Panel Assy.
(740-T8)
735-208S Switch Panel Assy.
(740-T12)
7 735-237 Front Bezel (740-T2)
735-223 Front Bezel (740-T4)
735-226 Front Bezel (740-T8)
735-229 Front Bezel (740-T12)
8 735-238 Rear Cover (740-T2)
735-224 Rear Cover (740-T4)
735-227 Rear Cover (740-T8)
735-230 Rear Cover (740-T12)
9 740-9S Main P.C.Board
(740-T2)
740-218S Main P.C.Board
(740-T4,740-T8 &
740-T12)
10 740-13S P.C.Board Wing
(740-T8)
740-15S P.C.Board Wing
(740-T12)
11 70-048S Knobs (with washers)
12 79-079 Washer
13 72-292S Power Supply (110 V)*
72-293-01JS Power Supply (200 V)
72-293-04FS Power Supply (220-240 V)
* 735-241 Wall Mounting Bracket
*735-242 Table Mounting Bracket
4
figure 9
1
End
1
End
figure 10
figure 11
3
4:00
*72-335S Power Supply
(740-T12PM, 740-T12AMPM, 110V)
*740-282S Switch Panel Assy. (740-T12PM)
*740-407S Switch Panel Assy. (740-T12AMPM)
740-517revB
Printed in USA 3/06 © 2006
