7
C DETAIL
Insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws
in the holes located on the oven frame. Where the product frame touches the wooden surface
of the cabinet, tighten the screws.
Cabinet cut-out sizes
You can use either cabinet 1
or cabinet 2 cut-out sizes
2
A
B
595mm
Min 25mm
580mm
560mm
600mm
1
555mm
575mm
560mm
A DETAIL
20mm
Minimum 40mm(The wooden
part can be extended up
to cut-out depth)
Product sizes
C
555mm
555mm
570mm
Mounting screws
570mm
590mm
595mm
B DETAIL
Countertop
Built-in oven
Min.25mm
Control
panel
Distance between
countertop and
control panel
Min. 50mm
Built-in hob
Distance between
countertop and
top panel of built-in
oven

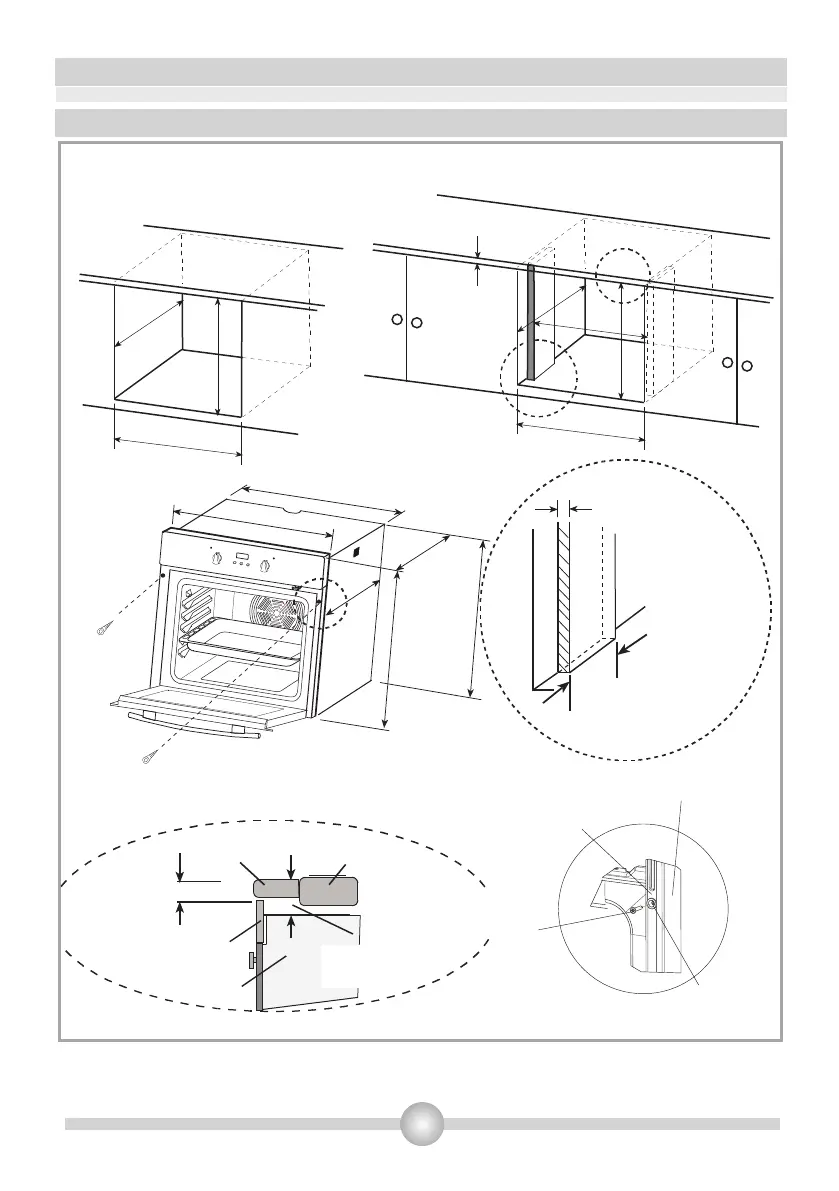

3.2. INSTALLATION OF BUILT IN OVEN
Front
frame
Spacer
Mounting
screw
Wooden
part
