8 Graphic EQ
8.1 Enabling Smaart Analysis (StudioLive AI-series only)
Universal Control for StudioLive
®
Mixers
Software Reference Manual
8 Graphic EQ
To the left of the Fat Channel, you will find the GEQ button. This opens up the graphic EQ for
that bus.
y StudioLive Series III mixers provide eight graphic EQs that can be assigned to any output bus.
y StudioLive AI-series RM/RML mixers provide a graphic EQ for the Main bus and the first 14
aux buses.
y StudioLive AI-series console mixers provide a graphic EQ for every aux bus plus the mains.
In general, graphic EQ settings are created prior to a live show and are not adjusted after that.
However, minor adjustments sometimes must be made later. Universal Control makes this quick
and easy.

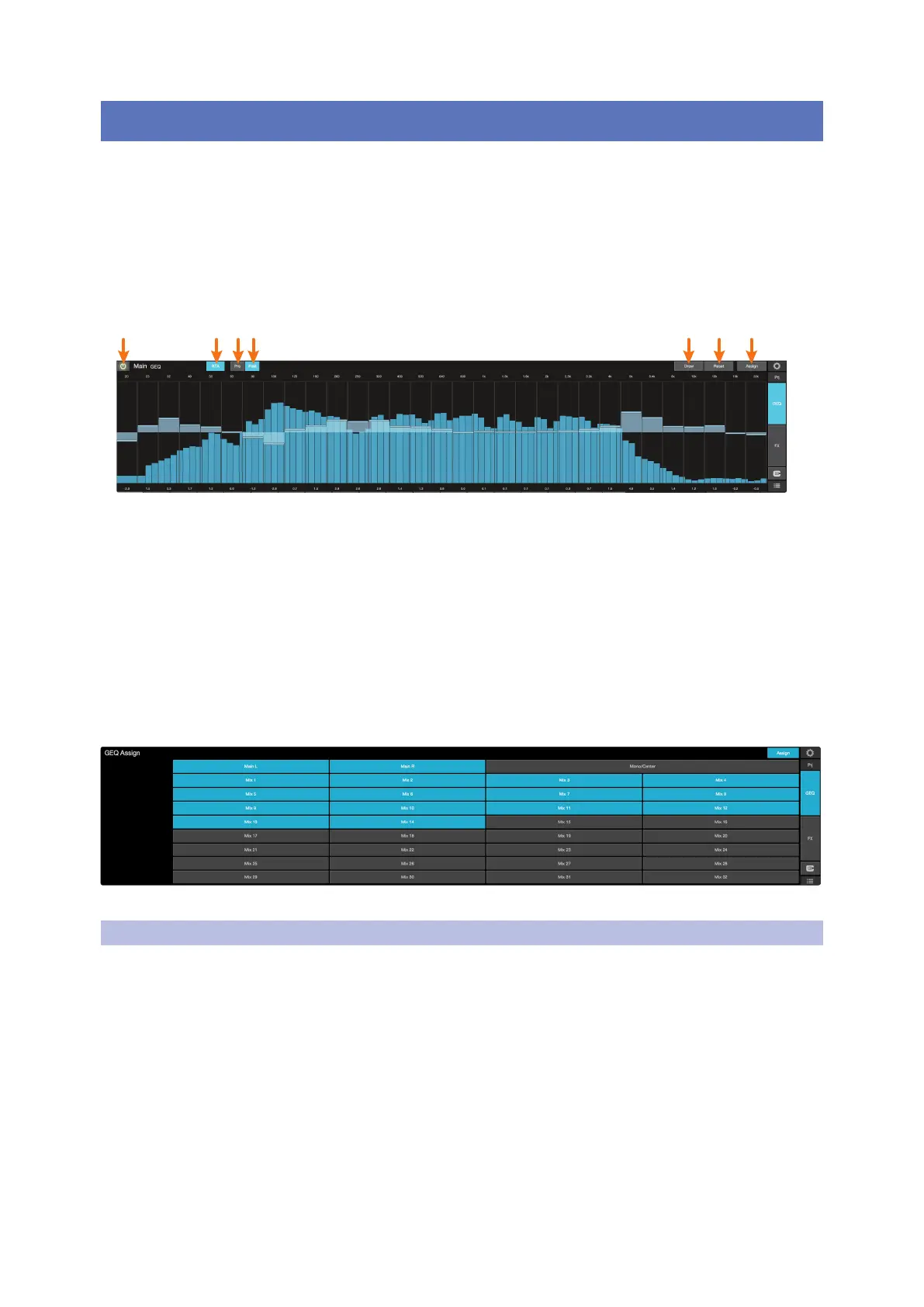

1. GEQ On/Off. By default, all graphic EQs are disabled. To enable any GEQ, simply click on this button.
2. RTA. Enables RTA view from within the Graphic EQ graph.
3. Pre (Series III only). Displays the Pre-GEQ signal in the RTA.
4. Post (Series III only). Displays the Post-GEQ signal in the RTA.
Note: Smaart Spectra Tools are available for StudioLive AI-series mixers from with the Graphic EQ. See
Section 5.1 for details.
5. Draw GEQ. Enabling the Draw function will allow you to draw a GEQ curve with your finger or mouse
rather than adjusting each band individually.
6. Reset GEQ. To zero out all curve settings on any graphic EQ, click on the Reset GEQ button. This will
return all band gains to 0 dB.
7. Assign (Series III only). Opens the Graphic EQ assign view:
When the Assign view is open, you can reassign Graphic EQs to different FlexMixes and buses.
8.1 Enabling Smaart Analysis (StudioLive AI-series only)
Both the GEQ and Fat Channel EQ provide Smaart Spectra™ analysis when connected to a StudioLive
AI-series mixer. Smaart Spectra was developed by Rational Acoustics to power Smaart’s Spectrum
Measurement Engines and includes an RTA and a spectrograph.
By default, Smaart® analysis is disabled. While Smaart is disabled, you have control over which bus is routed
to the second to last pair of auxiliary FireWire inputs.
Clicking on the Spectrograph or RTA buttons will start Smaart, and Universal Control will take control over
these FireWire auxiliary inputs.
Note: Smaart analysis requires use of the StudioLive AI-series’ onboard audio interface. It is not available
without a FireWire or FireWire-to-Thunderbolt connection between your mixer and your computer. Universal
Control’s integrated Smaart modules do not support StudioLive Series III consoles.
