7
2 Ampire
2.3 State Space Amplifier Models
PreSonus Plug-Ins
Reference Manual
4 Tone Controls. These are identical for channels 1-3. Bass, Mid, and
Treble are basic tone controls for their respective frequency ranges.
4 Gain Controls. These are identical for channels 1-3. Presence controls
the amount of negative feedback; increasing the value changes the
high frequencies and harmonics. Master controls the final output
volume for the channel. Gain controls the pre-amp input level.
4 Mode switch: Channel 1. This switch as two positions: Clean and Pushed,
each with different sound characteristics. Pushed has a boost, so the tone
controls contribute less to the sound of Channel 1 in that position.
4 Mode switch: Channels 2 and 3. This switch has three positions: Raw,
Vintage, and Modern. Each provides sound characteristics that were
modeled after different amplifiers from the same manufacturer.
4 Rectifier switch: All Channels. This switch has two positions:
Diode and Tube. These determine the basic character of the
selected channel, which changes the output volume, the harmonic
response, and the amount of headroom for that channel.

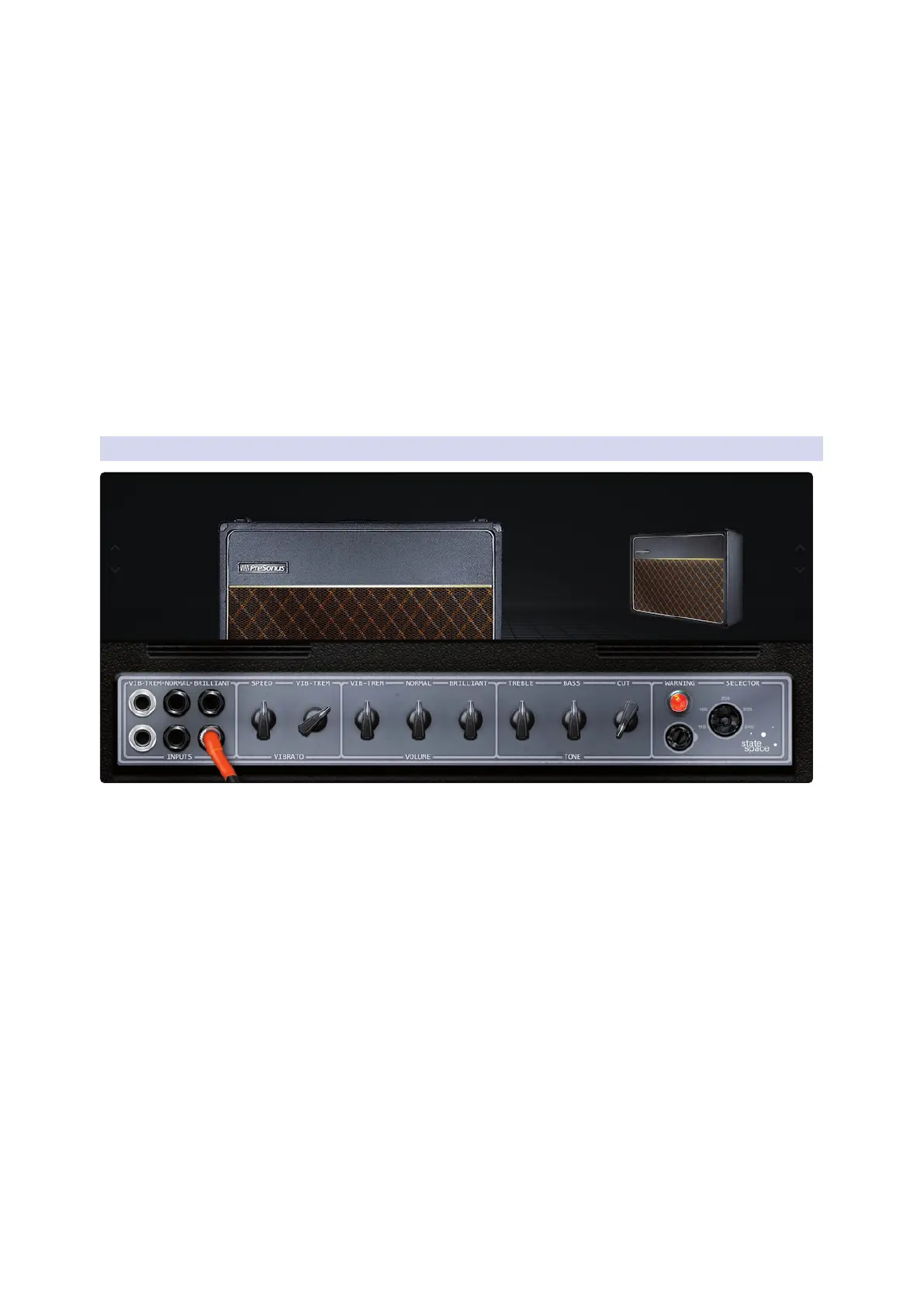

2.3.3 VC30
The VC30 is modeled from a versatile 70s British invader that you May
associate with a regal guitarist. Served with sides of tremolo and vibrato.
4 Channel Inputs The VC30 has three channels: Vib-Trem, Normal, and Brilliant.
Each channel has two inputs on the front panel, arranged vertically. The
low-sensitivity inputs are on the top row, and the high-sensitivity inputs are
on the bottom row. Each channel corresponds to a section of controls on
the right side. The active channel is determined by which input is used.
4 Vibrato The controls in this channel are used when one of the Vib-Trem
inputs is connected. Use the Speed selector to choose one of the three
speeds. The Vib-Trem selector also has three settings (Vibrato, Off, or
Tremolo). Adjust the level with the Vib-Trem control in the Volume section.
4 Volume Adjust the gain of each channel with the corresponding
control in the Volume section. Usually only one channel is active,
depending on which input is connected. But when the Vib-Trem and
Brilliant channels are “jumpered” as shown below, the gain controls
for both channels can be used to achieve the perfect blend.
4 Tone The Treble and Bass controls are dedicated to the Brilliant channel.
The Cut control attenuates the high frequencies, and is active for all
three channels. 0% = no cut, 100% clockwise = maximum cut.
