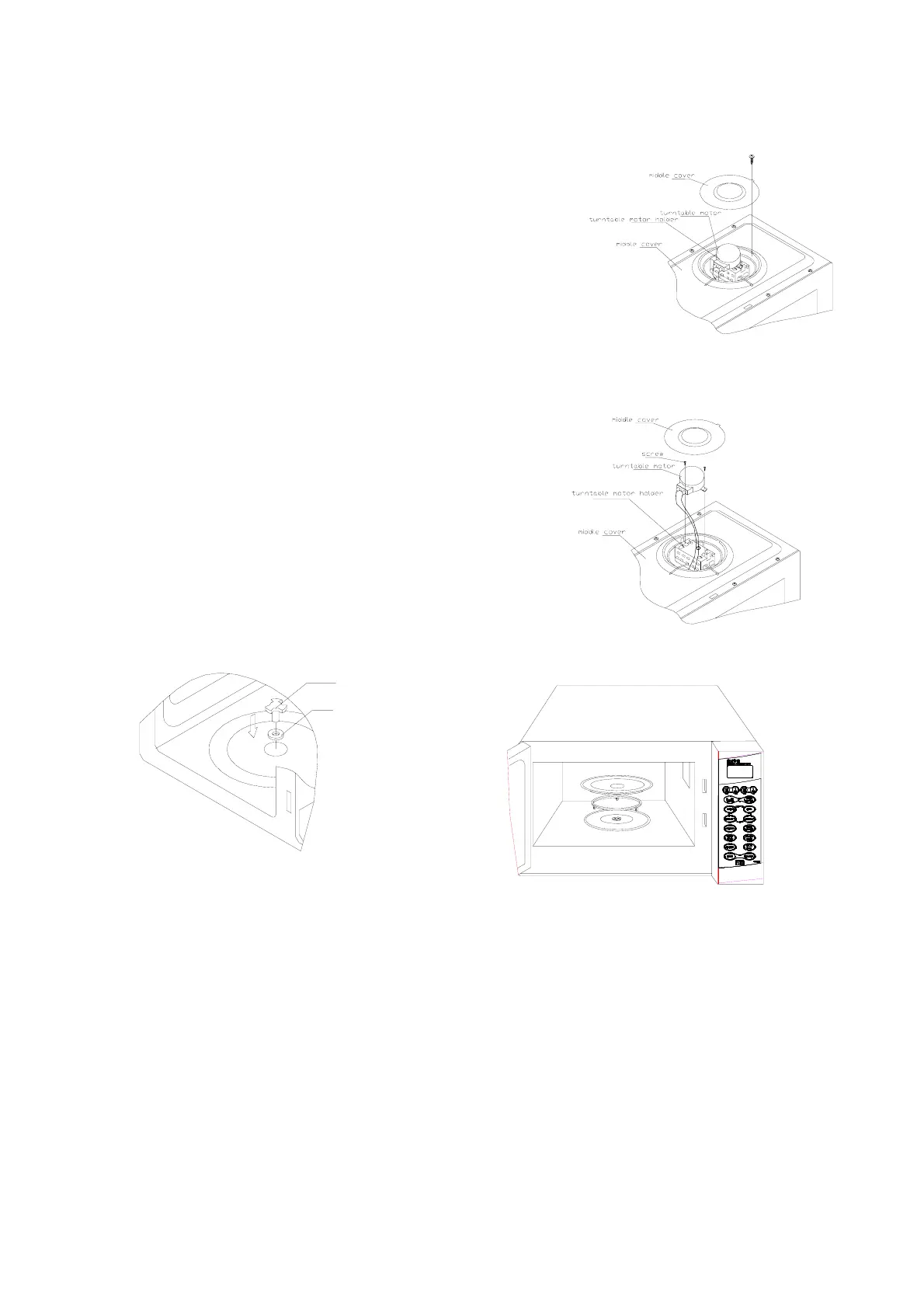

Fig.4-17
Fig.4-18
To assemble,
1. Insert one end of the diode to one feet of the capacitor’s connect piece.
2. Fix the diode with one screw (pay attention to the polarity of the diode, refer to FIG.4 - 16).
4
4
.
.
9
9
T
T
H
H
E
E
T
T
U
U
R
R
N
N
T
T
A
A
B
B
L
L
E
E
C
C
O
O
M
M
B
B
I
I
N
N
A
A
T
T
I
I
O
O
M
M
.
.
Firstly, do as the 1, 2, 3, stops of Ⅲ of this part.
To disassemble,
1. Turn the microwave oven over (FIG. 4- 17).
2. Take off the two screws which fix the middle base board with a
“+” – screwdriver and take off the middle cover (FIG.4 - 18).
3. Loosen out the two screws of turntable motor with a “+”-
screwdriver, take out the turntable motor and pull out the two
wires (4 -17).
Assembling steps:
1. Put the motor shaft into its connecting hole, and fix the motor
with two screws (FIG.4 - 17).
2. Plug in the two wires.
3. Assemble and fix the middle base board with two screws
(FIG.4 - 18).
4. Turn the oven back.
5. As the FIG.4 – 19 shown, fix in the turntable shaft supporter,
the place in the roller ring and the glass tray as FIG .4 – 20.
4
4
.
.
1
1
0
0
T
T
H
H
E
E
D
D
O
O
O
O
R
R
S
S
A
A
F
F
T
T
Y
Y
I
I
N
N
T
T
E
E
R
R
L
L
O
O
C
C
K
K
S
S
.
.
Firstly, do as the same with 1, 2, 3, steps of Ⅲ of this part.
Steps for dismantling:
(1) Pull out the terminal plugs of the interlock switch and the pilot switch.
(2) Loosen out the two screws which fixed the switch holder with a “+”- screwdriver, and take the switch holder
off.
(3) Take off the interlock switch and the pilot switch from the holder.
(4) Take off the switch connecting lever arm and the working lever from the holder.
Assembling steps:
(1) Slip on the connecting lever arm and the working lever into the switch holder.
Fig.4-19
turntable shaft supporter
roller ring
