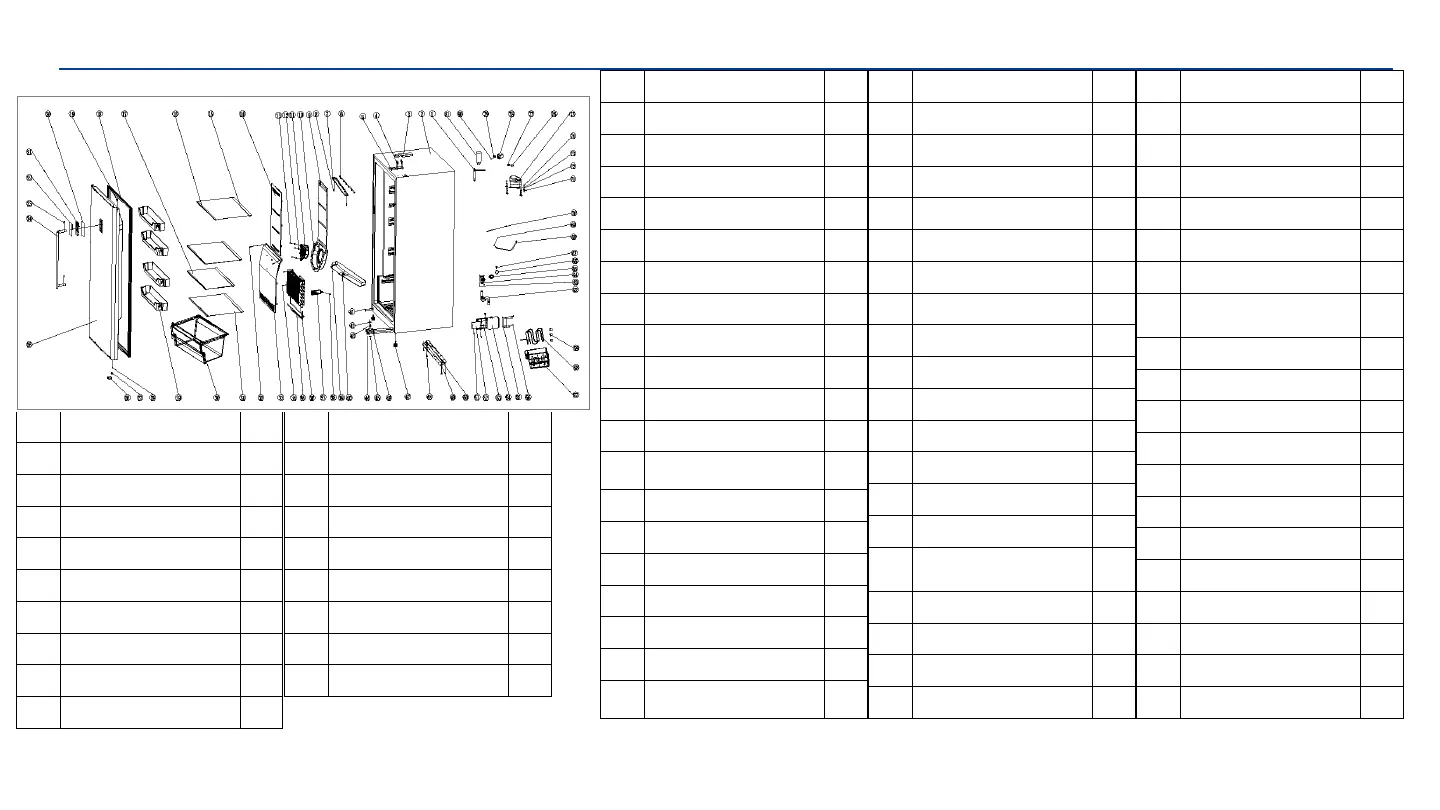

EXPLODED DRAWING
Page 21
20 Display panel 1
21 Display plate 1
22 According to the face 1
23 819 Stainless steel（5x16) 2
24 White side door handle 1
25 Hydrodynamic 1
26 Threshold a piece 1
27 Lower door axis sheath 1
28 Big flat head attack(ROHS)4x12 1
29 Upper door rack 4
30 Drawer 1
31 Glass shelf Ⅰ 3
32
845 Stainless steel（Large flat
head)4x12
2
33 Lower air duct board 1
34 845 Stainless steel（4.2x16) 2
35 Heating tube 1
36 Evaporator 1
37 Probe cover 1
38 845 Stainless steel（ST3.9x16) 1
39
818Machine attack(ROHS)
4X8(With gear washer)
1
1 Filter 1
2 Tank shell 1
3 Hinged cover 1
4 Belt pad machine（M6X14) 4
5 On the hinge 1
6 LED lamp 1
7 LED chimney 1
8 Self tapping screw（ST3.9X160 2
9 Upper duct foam 1
10 Fan cover 1
11 Dc fan 1
12 Gasket 3
13 845 Stainless steel（3.5x13) 3
14 Upper hand but 1
15 Glass shelf rear trim strip 4
16 Glass shelf front trim strip 4
17 Glass shelf Ⅱ 1
18 Door gasket 1
19 Upper hinge sleeve 1
40 Flow plate 1
41 Cap nail 2
42 Hinge gasket 1
43 Hinge base 1
44 Padded machine tapping 4
45 M8 Nut 1
46 Lower hinge 1
47 Adjustable foot 2
48 Self tapping screw(4x12) 4
49 Compressor base plate 1
50 Wheel cobalt 2
51 Screw 1
52 Electric control board 1
53 Electric control box cover 1
54 Electric control box 1
55
Fixed connector of main control
board
1
56 Self tapping screw(4x12) 4
57 Water tray 1
58 Water removal evaporation pipe 1
59 Damping rubber block 3
62 Drainage elbow 1
63 Self tapping screw(4x12) 2
64 Drain connection pipe 1
65 Exhaust cover 1
66 Exhaust cover plates 1
67 Exhaust cover fixing column 1
68 Power cord 1
69
818Machine attack(ROHS)
4X8(With gear washer)
1
70 Ground wire 1
71 Rubber wire 4
72 Bushing 4
73 Washer 4
74 Bolt(M6X30) 4
75 Compressor 1
76 Starter 1
77 Overload protector 1
78 Housing 1
79 Clamp(FZ40C1J-U) 1
80 Self tapping screw(ST3.5X19) 1
81 Capacitance 1
