Connecting the Multiple EBMs in rack form
1. Connect Earth line between UPS and the first EBM, and then connect
Earth Line between the first EBM and the second EBM.

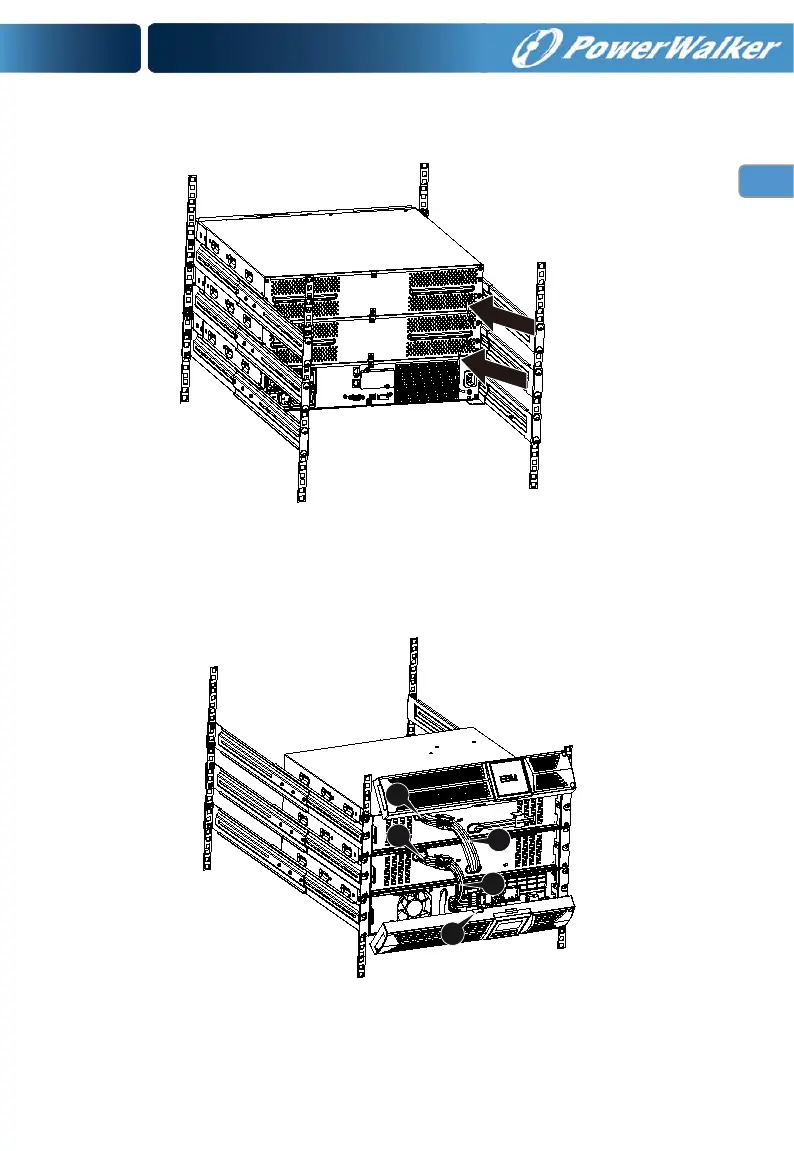

2. Take off the front panel, and connect the battery terminal (A) from UPS
to EBM terminal (B) shown as below. And then connect the battery
terminal (D) from the first EBM to the battery terminal (E) from the
second EBM. Users need to remove the small gate(C) on side of the
front panel to allow the outlet wire of the EBM to pass through the gate
and then reassemble front panel.
Note: Three or more EBMs can be connected to the UPS in the same way as
shown above.
