5

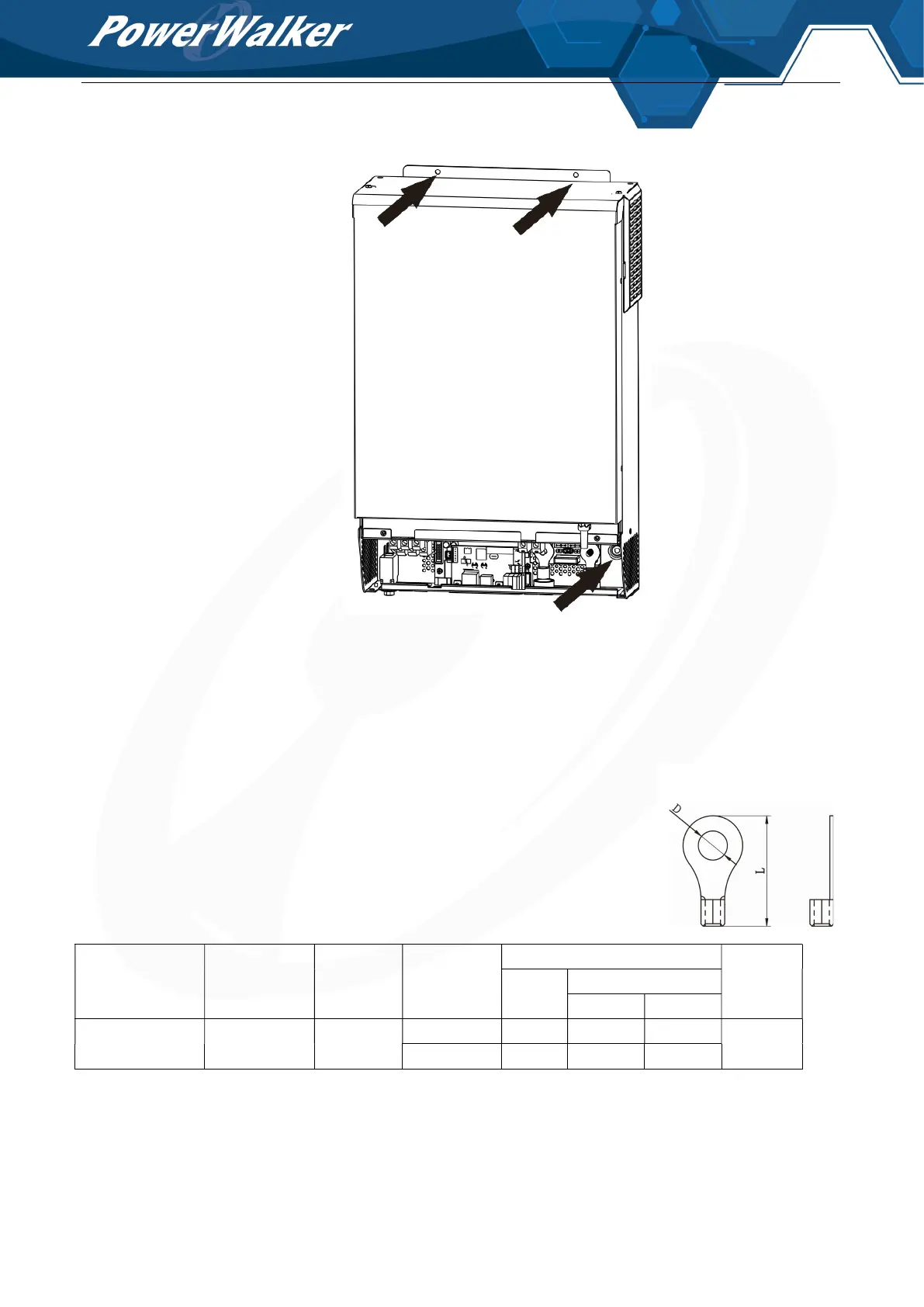

Install the unit by screwing three screws. It’s recommended to use M4 or M5 screws.

Battery Connection

CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current

protector or disconnect device between battery and inverter. It may not be requested to have a disconnect

device in some applications, however, it’s still requested to have over-current protection installed. Please refer

to typical amperage in below table as required fuse or breaker size.

WARNING! All wiring must be performed by a qualified personnel.

WARNING! It's very important for system safety and efficient operation to use

appropriate cable for battery connection. To reduce risk of injury, please use the

proper recommended cable and terminal size as below.

Recommended battery cable and terminal size:

Model Typical

Amperage

Battery

Capacity

Wire Size Ring Terminal Torque

Value

Cable

mm

2

Dimensions

D (mm)

L (mm)

5KW/6KW 125A/150A 200AH

1*1/0AWG 60 6.4 49.7

2~3 Nm

2*4AWG 44 6.4 49.7

Please follow below steps to implement battery connection:

1. Assemble battery ring terminal based on recommended battery cable and terminal size.

2. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the nuts are

tightened with torque of 2-3 Nm. Make sure polarity at both the battery and the inverter/charge is correctly

connected and ring terminals are tightly screwed to the battery terminals.

Ring terminal:
