8

Pl

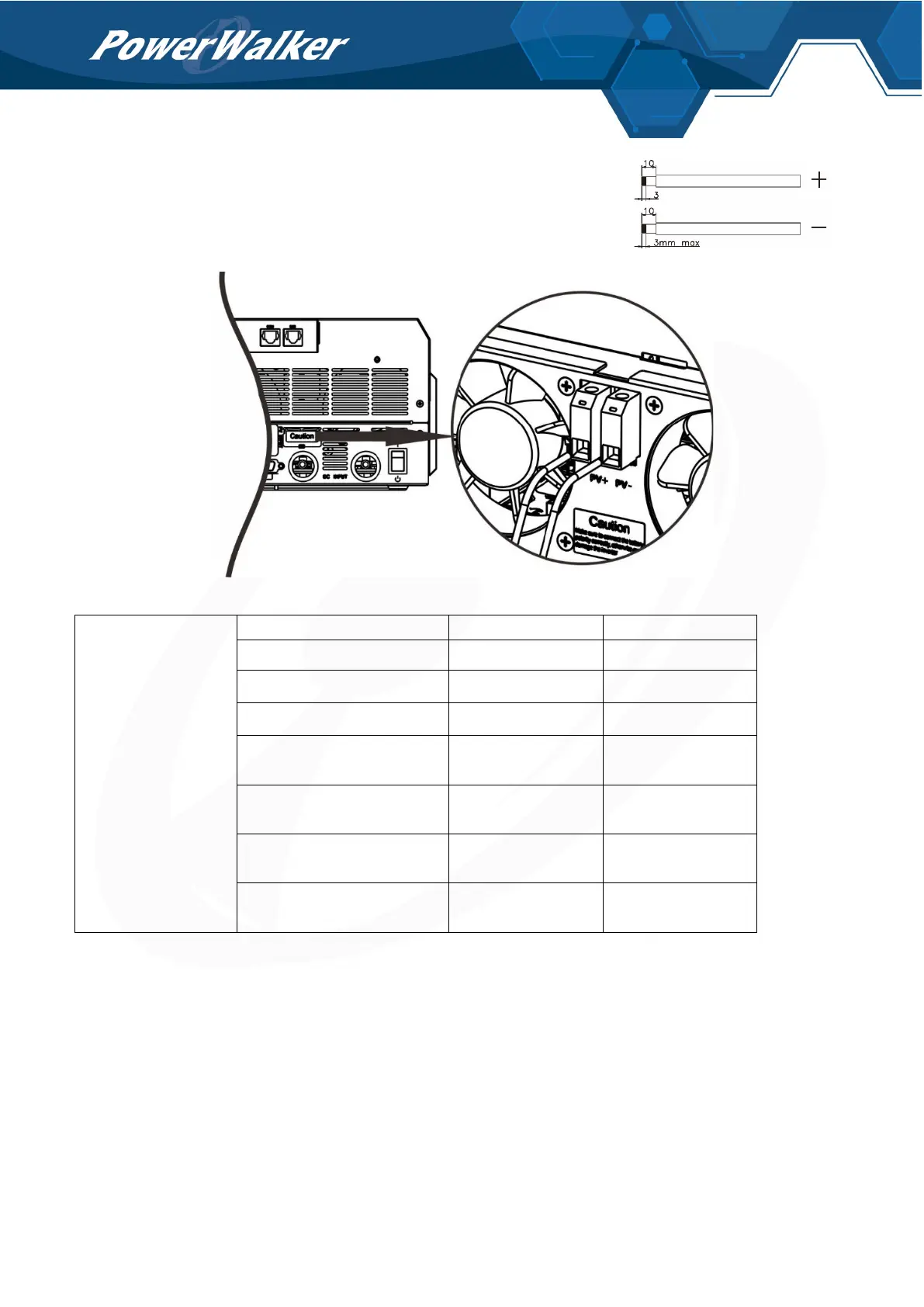

ease follow below steps to implement PV module connection:

1. Remove insulation sleeve 10 mm for positive and negative conductors.

2. Check correct polarity of connection cable from PV modules and PV input

connectors. Then, connect positive pole (+) of connection cable to

positive pole (+) of PV input connector. Connect negative pole (-) of

connection cable to negative pole (-) of PV input connector.

Rec

ommended PV module Configuration

PV Module Spec.

(reference)

- 250Wp

- Vmp: 30.7Vdc

- Imp: 8.15A

- Voc: 37.4Vdc

- Isc: 8.63A

- Cells: 60

Total solar input power

Solar input

Q'ty of modules

1500W 6 pieces in series 6 pcs

2000W 8 pieces in series 8 pcs

2750W 11 pieces in series 11 pcs

3000W

6 pieces in series

2 strings in parallel

12 pcs

4000W

8 pieces in series

2 strings in parallel

16 pcs

5000W

10 pieces in series

2 strings in parallel

20 pcs

6000W

12 pieces in series

2 strings in parallel

24 pcs
