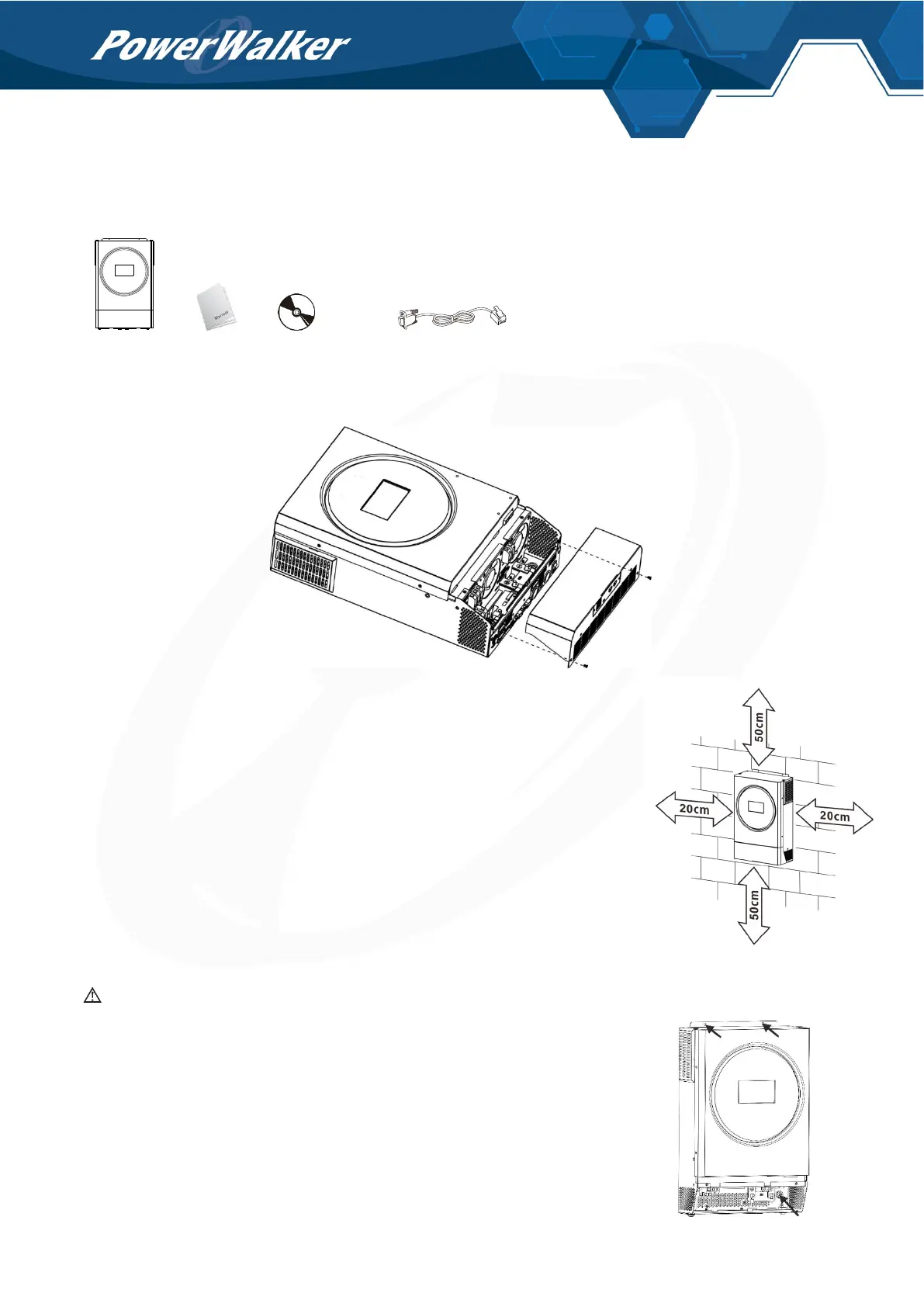

INSTALLATION

Unpacking and Inspection

Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should

have received the following items inside of package:

Inverter unit Manual software CD

2x Communication cable

Preparation

Before connecting all wirings, please take off bottom cover by removing two screws as shown below.

Mounting the Unit

Consider the following points before selecting where to install:

 Do not mount the inverter on flammable construction materials.

 Mount on a solid surface

 Install this inverter at eye level in order to allow the LCD display to be

read at all times.

 The ambient temperature should be between -10°C and 50°C to ensure

optimal operation.

 The recommended installation position is to be adhered to the wall

vertically.

 Be sure to keep other objects and surfaces as shown in the right diagram

to guarantee sufficient heat dissipation and to have enough space for

removing wires.

S

UITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY.

In

stall the unit by screwing three screws. It’s recommended to use M4 or M5

screws.
