5 OM-POWER PREP ADVANCED

Seal the backsplash, channel rim, and all the gaps between the two sinks with the

grey-colored NSF approved sealant that is supplied with the unit.

Apply the grey colored NSF approved sealant to all the sink joints and wipe the

excess away, leaving a smooth sanitary joint.

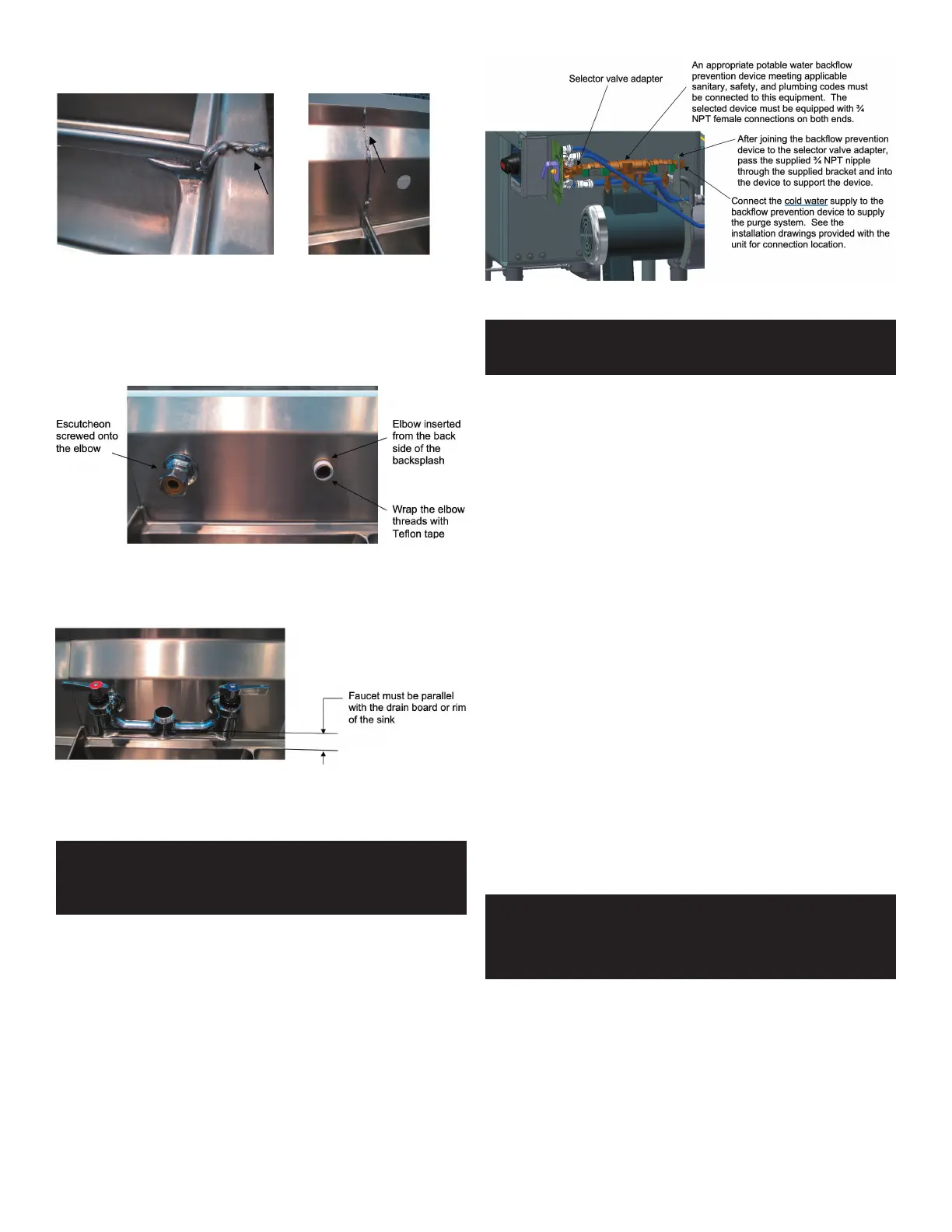

Faucet Installation

Open the faucet package and locate the water connection elbows, faucet body and

escutcheon assemblies. Apply Teon tape to the threads of the elbows and insert

them though the backsplash of the sink.

Loosely t the escutcheons to the elbows and the faucet body. When the alignment

of the body with the sink is conrmed, tighten the escutcheons onto the elbows and

faucet body. From the back side of the backsplash, tighten the brass nuts on the

elbows when the faucet body is parallel with the rim of the sink.

Complete the faucet assembly according to the manufacturer’s instructions which

are included with the faucet. Attach water lines to the faucet so that the lines extend

below the sink. This will make the plumbing easier to complete when the machine is

placed against the wall.

IMPORTANT

: AN APPROPRIATE POTABLE WATER BACKFLOW PREVENTION DEVICE

MEETING APPLICABLE SANITARY, SAFETY, AND PLUMBING CODES MUST

BE CONNECTED TO THIS EQUIPMENT. THE SELECTED DEVICE MUST BE

EQUIPPED WITH ¾ NPT FEMALE CONNECTIONS ON BOTH ENDS.

Locate the installation drawings provided with the Power Prep Advanced for plumbing

location and tting information.

COMPLETING THE INSTALLATION

IMPORTANT

: THE POWER PREP ADVANCED SINK ASSEMBLY MUST BE LEVEL FROM SIDE

TO SIDE AND FRONT TO REAR WITH ALL THE FEET MAKING FIRM CONTACT

WITH THE FLOOR.

FINAL INSTALLATION STEPS

Machine Placement

Position the Power Prep Advanced so that the back splash rests against the wall and is

placed according to the oor plan or customer’s selected location. Examine the drain

and water supply lines to determine that the plumbing can be completed when the

Power Prep Advanced is in the nal location. Verify that the plumbing from the faucet

can be reached with the sink against the wall.

Level and Attach to the Wall

Using a level, adjust the feet on the Power Prep Advanced until the front rim and the

rear rim of the sink are level. Check the level of the front rim and rear rim at the wash

sink and not at the drain boards. The sink must also be level front to back.

Examine the installation to see that the wall and wall-side of the backsplash are clean

and free of dust and oils. Seal the top and sides of the backsplash to the wall using

the clear NSF approved sealant provided with the Power Prep Advanced. Wipe off all

excess sealant leaving a smooth, clean and sanitary bead of sealant on all the edges.

Backsplash Extension Installation (if required)

Be certain the upper face of the backsplash is clean and free of dust and oils. Position

the backsplash extensions on the wall so that the offset lip is overlapping the top edge

of the backsplash and the edges align with the JBZ joint in the sink and the outer

edges of the backsplash. Mark the hole locations for both extension pieces, remove

the extensions and insert the wall anchors into the wall. If a plywood backing is used

behind the wall covering, the anchors will not be needed. Put a small bead of the

clear NSF approved silicone sealant around the edge of the face of the extension that

will seal to the wall and install the extension pieces. Use a small bead of the silicone

under the face of the screws as they are installed in order to seal around the screws.

Wipe off all excess sealant leaving a smooth, clean and sanitary bead of sealant on

all the edges.

CAUTION

: DO NOT ATTEMPT TO STRAIGHTEN THE RISER BY PUSHING ON THE RISER

TUBE WHILE THE FAUCET IS TIGHENED AGAINST THE BACKSPLASH; IT

WILL DAMAGE THE RISER TUBE. LOOSEN THE MOUNTING OF THE FAUCET

BODY AND POSITION THE BODY SO THAT THE RISER IS IN A VERTICAL

POSITION, THEN TIGHTEN THE FAUCET BODY AGAINST THE BACKSPLASH.

Rinse Riser and Anchor Installation

Follow the faucet manufacturer’s directions on the assembly of the faucet and riser.

Position the riser supports on the wall using the ange plate provided with the riser

assembly. It may be necessary to cut the support rods to a shorter length in order to

t between the wall and the riser. Attach the riser support to the wall with screws.
