Part 10
SPECIAL ADJUSTMENTS
Paper Near End Sensor
The near end sensor
for paper roll in the
printer is able to have
the printer work with
paper rolls of several
bobbin sizes. Please
refer to the picture at
right for the inside of
the paper roll

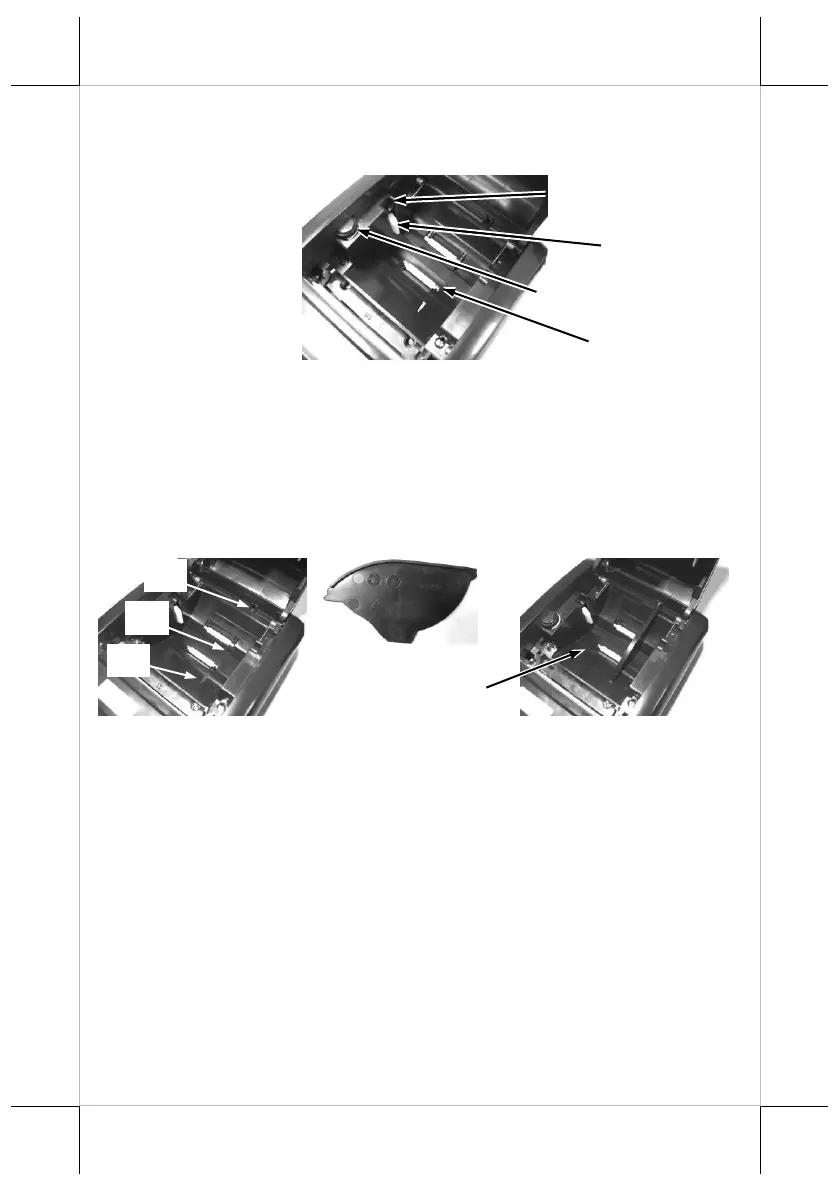

compartment that there are a plastic thumb wheel for bobbin size adjustment
and a sensor block in the wall. Turn the thumb wheel to adjust the proper
position of sensor block. For desktop application, the sensor block should be
above the bobbin seating on the 2 support rollers on bottom of paper
compartment when paper near end..The acceptable paper roll bobbin outer
diameter is between 18 and 24 mm.
58mm Paper Spacing Plate
The application of 58 mm width paper roll in this printer can be achieved
through adoption of an option spacing plate and an internal DIP switch setting.
Please refer to the last chapter of this manual for the DIP switch setting. Please
refer to the middle picture above for the 58 mm paper spacing plate with its
flange at top edge showing out. Insert the noted corners of the spacing plate
into the 3 dents inside the paper roll compartment as arrowed in the left picture
above with point A goes in first. Then the 58 mm paper roll sub compartment
is formed as in the right picture above.
Paper Cutting
The paper will auto advance after a normal cut with auto paper feed is set to 12
mm. In case the user applies cut without paper feed through DIP switch setting
change to have something like a logo printed on top of each slip, it is also
highly suggested to print the logo and necessary paper feeding to make 12 mm
paper advance right after each cut to prevent curling up and jamming of paper
Sensor Block
Sensor Position Adjust
Support Roller
Paper Roll Shaft Hold
A
B
C
A
B
C
58 mm
Compartment
