9

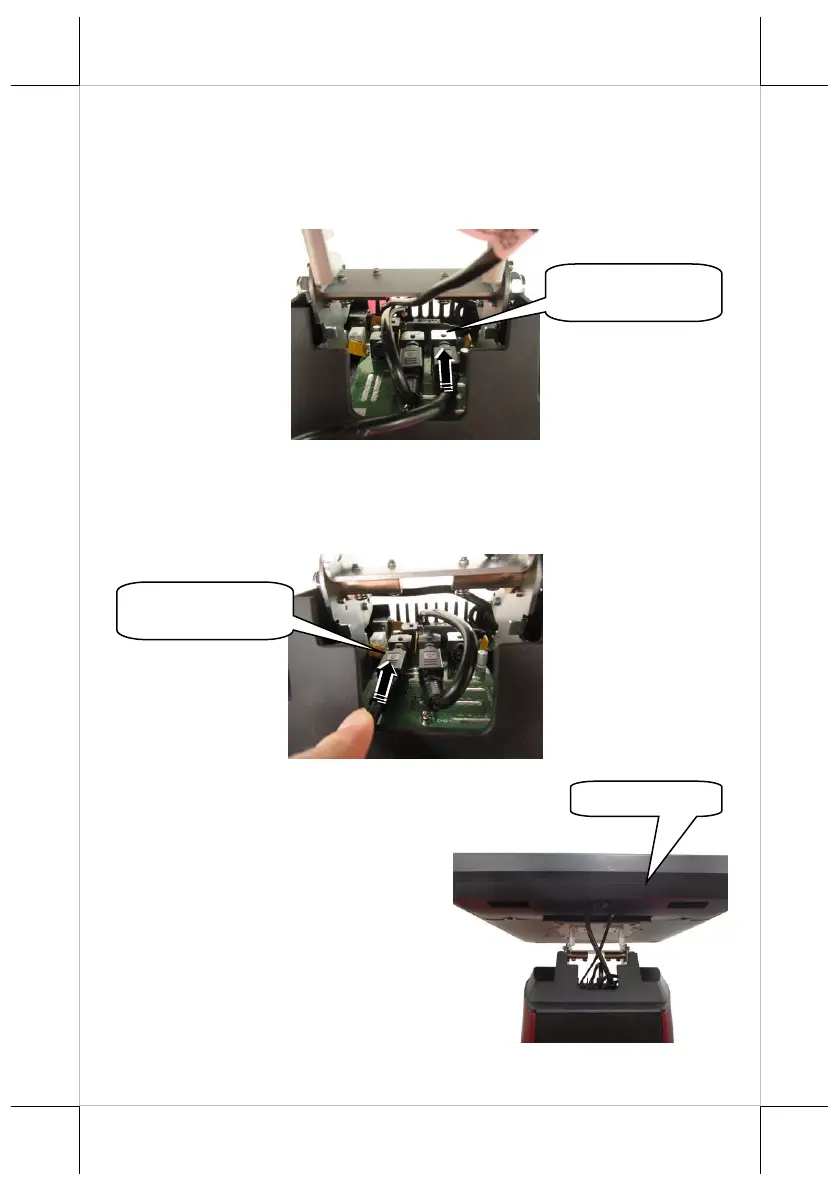

7. Connect the power cable to the power board of the Gen9 base. Please
note that XT/PS/RT series are 12V DC-IN POS terminal, so you have to
connect the power cable to the 4-pin 12V DC-OUT connector of the
power board. Please refer to the below picture, or you can refer to the
power board view on P.4.
ZT series terminal, is a 24V DC-IN POS terminal, so you have to
connect the power cable to the 3-pin 24V DC-OUT connector of the
power board. Please refer to the below picture, or you can refer to the
power board view on P.4.
8. For XT/PS series terminal.
If there is no 2
nd
display for Gen9
base, close the I/O cable cover to the
XT/PS series terminal.
If there is a 2
nd
display for Gen9
base, please install the 2
nd
display first
before closing the I/O cable cover.
Please find the relevant user manual
for the installation guide of the 2
nd
display for Gen9 base.
I/O Cable Cover
3-Pin 24V DC-OUT
power connector
4-Pin 12V DC-OUT
power connector
