8
9
GB

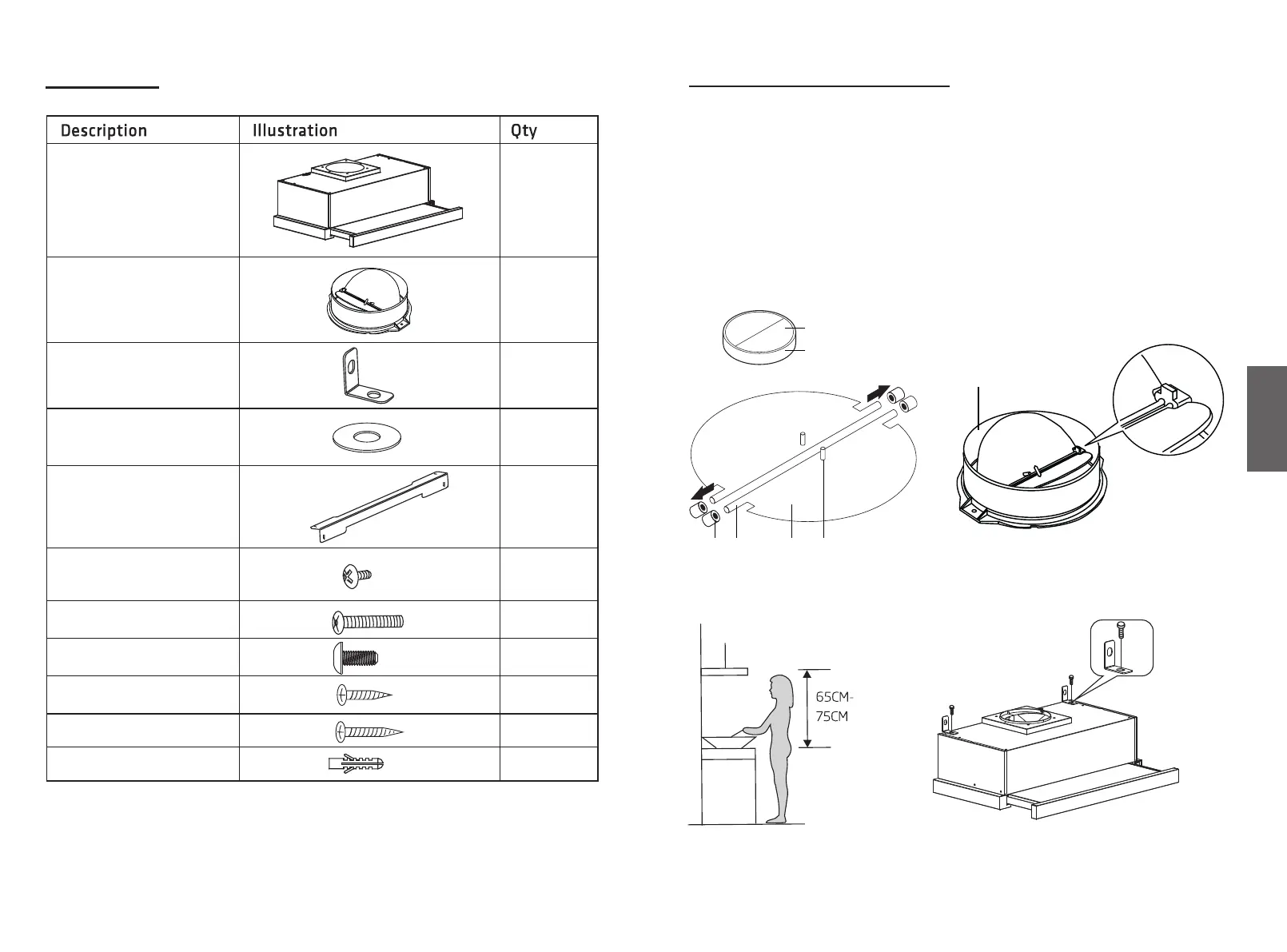

Parts supplied
If the cooker hood does not have an assembled V-flap 1, you should mount the
half-parts to its body. The images only show an example of how to mount
the V-flap, because the outlet may vary according to dierent models and
configurations.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part.
INSTALLATION (Wall Mounting)
1. Decide the location of the holes for fixing the cooker hood.
2. Install the L-shaped bracket on the top of the hood with two screws
(4mm x 10mm)
Screw ST3mm X 12mm
Screw ST4mm X 30mm
Screw M4mm X 10mm
Cooker hood
Outlet & V-flap
Angle bracket
Plate I
Wall plug
WasherΦ4*20*1mm
Screw ST4 X 8
1
2
2
4
4
2
1
1
6
2
6
Screw M4mm X 35mm
INSTALLATION (VENT OUTSIDE)
MOUNTING OF THE V-FLAP
①
①
⑥
④
②
③⑤
