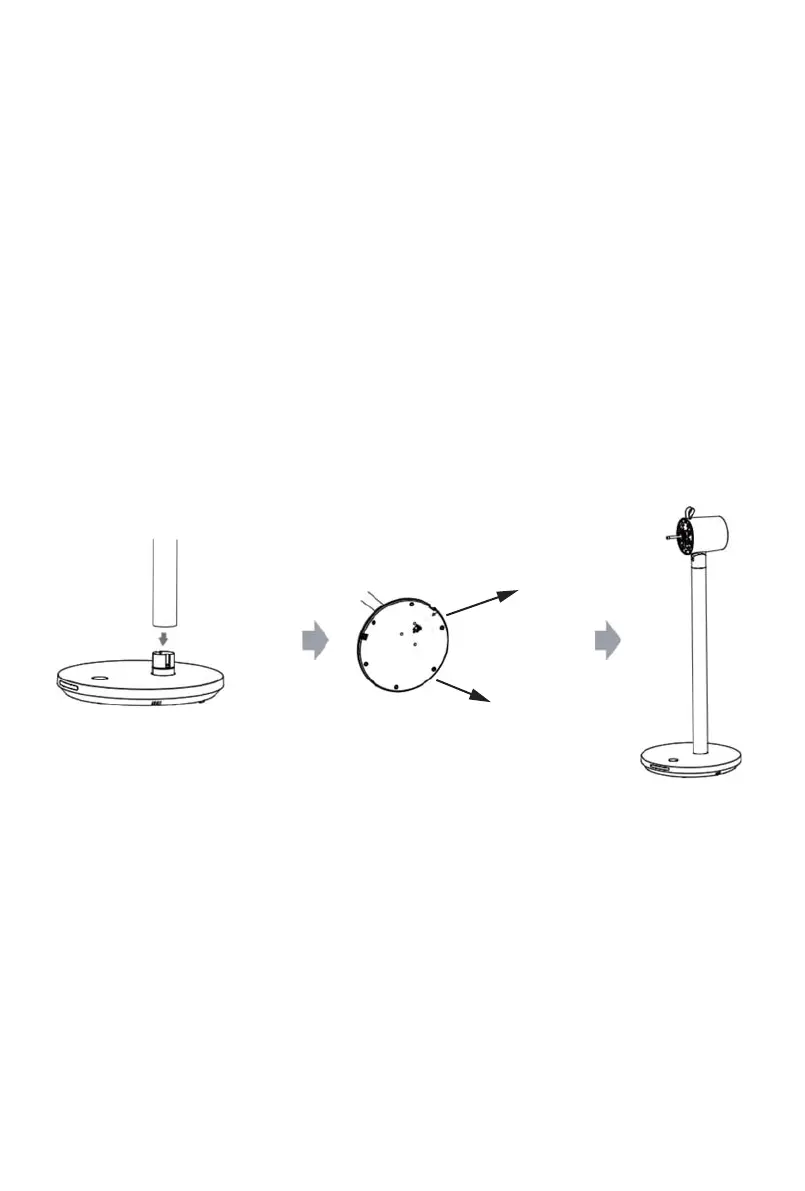

Stand tube
Latch to hold
the stand
Tighten with the
long screw
8
INSTALLATION
1.Fix the stand tube (9) to the base (11)
After unpacking, check for completeness of delivery and
for shipping damage.
If your delivery is damaged or incomplete, please contact
the manufacturer for after-sales service.
Firmly and fully insert the stand tube (9) onto the
protruding connector on the base (11), then place the
stand tube until it clicks into place. The click sound
indicates that the latch on the bottom of the base
has locked the inserted stand tube. Then use the
supplied long screw to tighten the stand tube from
the base bottom.
•
2.Fix the rear guard (5)
Remove the blade assembly nut (2) and the rear
guard nut (4) from the motor shaft (6).
Position the rear guard (5) onto the motor shaft (6)
while ensuring that the mark “I” on the rear guard (5)
is up.
Then re-position the rear guard nut (4) onto the
motor shaft (6), and tighten it to secure the rear
guard (5).
•
•
•
